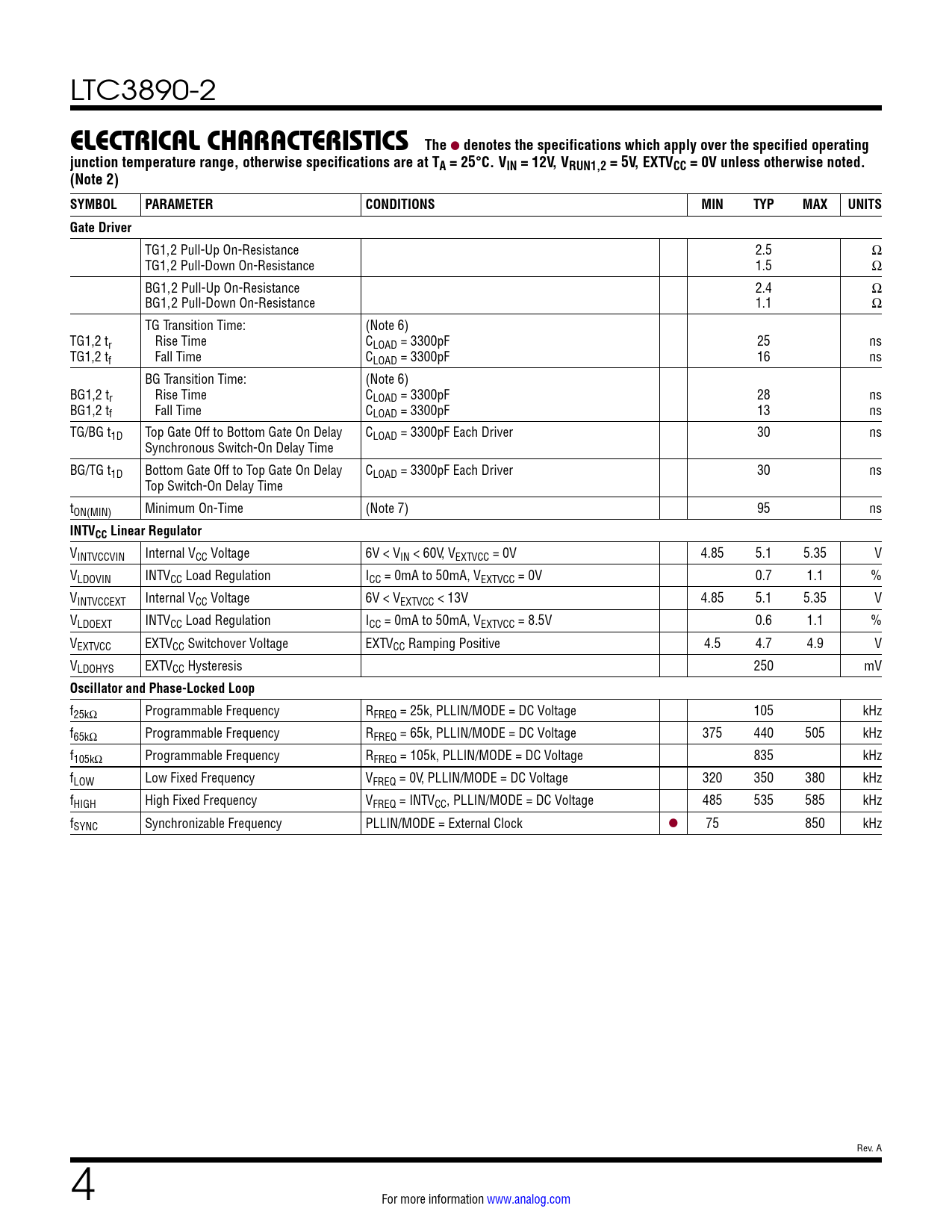

ELECTRICAL CHARACTERISTICS. The. denotes the specifications which apply over the specified operating
Línea de modelo para esta hoja de datos
Versión de texto del documento
LTC3890-2
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the specified operating junction temperature range, otherwise specifications are at TA = 25°C. VIN = 12V, VRUN1,2 = 5V, EXTVCC = 0V unless otherwise noted. (Note 2) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS Gate Driver
TG1,2 Pull-Up On-Resistance 2.5 Ω TG1,2 Pull-Down On-Resistance 1.5 Ω BG1,2 Pull-Up On-Resistance 2.4 Ω BG1,2 Pull-Down On-Resistance 1.1 Ω TG Transition Time: (Note 6) TG1,2 tr Rise Time CLOAD = 3300pF 25 ns TG1,2 tf Fall Time CLOAD = 3300pF 16 ns BG Transition Time: (Note 6) BG1,2 tr Rise Time CLOAD = 3300pF 28 ns BG1,2 tf Fall Time CLOAD = 3300pF 13 ns TG/BG t1D Top Gate Off to Bottom Gate On Delay CLOAD = 3300pF Each Driver 30 ns Synchronous Switch-On Delay Time BG/TG t1D Bottom Gate Off to Top Gate On Delay CLOAD = 3300pF Each Driver 30 ns Top Switch-On Delay Time tON(MIN) Minimum On-Time (Note 7) 95 ns
INTVCC Linear Regulator
VINTVCCVIN Internal VCC Voltage 6V < VIN < 60V, VEXTVCC = 0V 4.85 5.1 5.35 V VLDOVIN INTVCC Load Regulation ICC = 0mA to 50mA, VEXTVCC = 0V 0.7 1.1 % VINTVCCEXT Internal VCC Voltage 6V < VEXTVCC < 13V 4.85 5.1 5.35 V VLDOEXT INTVCC Load Regulation ICC = 0mA to 50mA, VEXTVCC = 8.5V 0.6 1.1 % VEXTVCC EXTVCC Switchover Voltage EXTVCC Ramping Positive 4.5 4.7 4.9 V VLDOHYS EXTVCC Hysteresis 250 mV
Oscillator and Phase-Locked Loop
f25kΩ Programmable Frequency RFREQ = 25k, PLLIN/MODE = DC Voltage 105 kHz f65kΩ Programmable Frequency RFREQ = 65k, PLLIN/MODE = DC Voltage 375 440 505 kHz f105kΩ Programmable Frequency RFREQ = 105k, PLLIN/MODE = DC Voltage 835 kHz fLOW Low Fixed Frequency VFREQ = 0V, PLLIN/MODE = DC Voltage 320 350 380 kHz fHIGH High Fixed Frequency VFREQ = INTVCC, PLLIN/MODE = DC Voltage 485 535 585 kHz fSYNC Synchronizable Frequency PLLIN/MODE = External Clock l 75 850 kHz Rev. A 4 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics Typical Performance Characteristics Pin Functions Functional Diagram Operation Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
