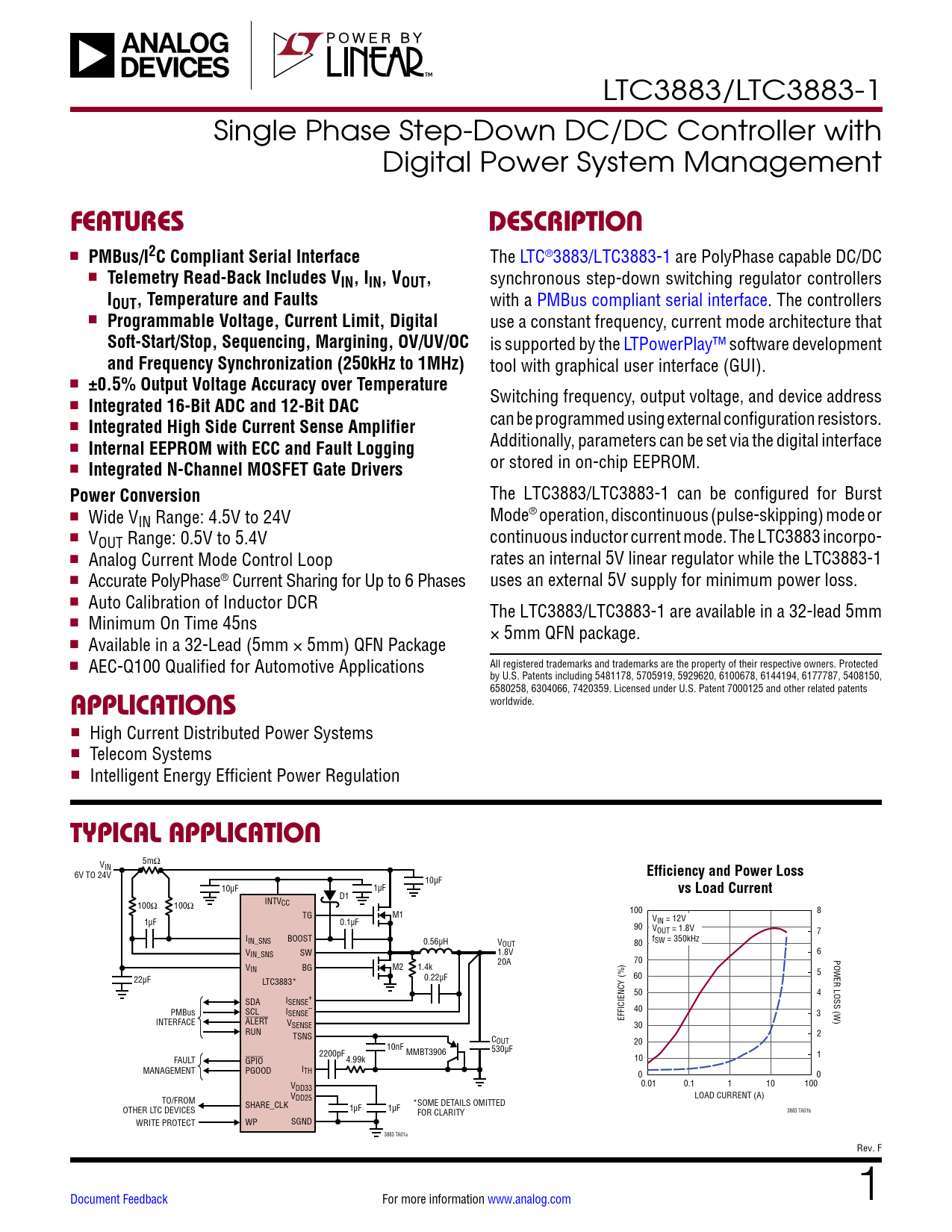

LTC3883/LTC3883-1 Single Phase Step-Down DC/DC Controller with Digital Power System Management
FEATURES DESCRIPTION
n
PMBus/I2C Compliant Serial Interface
The LTC®3883/LTC3883-1 are PolyPhase capable DC/DC n
Telemetry Read-Back Includes VIN, IIN, VOUT,
synchronous step-down switching regulator controllers
IOUT, Temperature and Faults
with a PMBus compliant serial interface. The controllers n
Programmable Voltage, Current Limit, Digital
use a constant frequency, current mode architecture that
Soft-Start/Stop, Sequencing, Margining, OV/UV/OC
is supported by the LTPowerPlay™ software development
and Frequency Synchronization (250kHz to 1MHz)
tool with graphical user interface (GUI). n
±0.5% Output Voltage Accuracy over Temperature
Switching frequency, output voltage, and device address n
Integrated 16-Bit ADC and 12-Bit DAC
can be programmed using external configuration resistors. n
Integrated High Side Current Sense Amplifier
Additionally, parameters can be set via the digital interface n
Internal EEPROM with ECC and Fault Logging
or stored in on-chip EEPROM. n
Integrated N-Channel MOSFET Gate Drivers Power Conversion
The LTC3883/LTC3883-1 can be configured for Burst n Wide VIN Range: 4.5V to 24V Mode® operation, discontinuous (pulse-skipping) mode or n VOUT Range: 0.5V to 5.4V continuous inductor current mode. The LTC3883 incorpo- n Analog Current Mode Control Loop rates an internal 5V linear regulator while the LTC3883-1 n Accurate PolyPhase® Current Sharing for Up to 6 Phases uses an external 5V supply for minimum power loss. n Auto Calibration of Inductor DCR The LTC3883/LTC3883-1 are available in a 32-lead 5mm n Minimum On Time 45ns × 5mm QFN package. n Available in a 32-Lead (5mm × 5mm) QFN Package n AEC-Q100 Qualified for Automotive Applications All registered trademarks and trademarks are the property of their respective owners. Protected by U.S. Patents including 5481178, 5705919, 5929620, 6100678, 6144194, 6177787, 5408150,
APPLICATIONS
6580258, 6304066, 7420359. Licensed under U.S. Patent 7000125 and other related patents worldwide. n High Current Distributed Power Systems n Telecom Systems n Intelligent Energy Efficient Power Regulation
TYPICAL APPLICATION
