Datasheet BLF989E, BLF989ES (Ampleon) - 2
| Fabricante | Ampleon |
| Descripción | UHF power LDMOS transistor |
| Páginas / Página | 12 / 2 — BLF989E; BLF989ES. UHF power LDMOS transistor. 2. Pinning. information. … |
| Formato / tamaño de archivo | PDF / 1.2 Mb |
| Idioma del documento | Inglés |

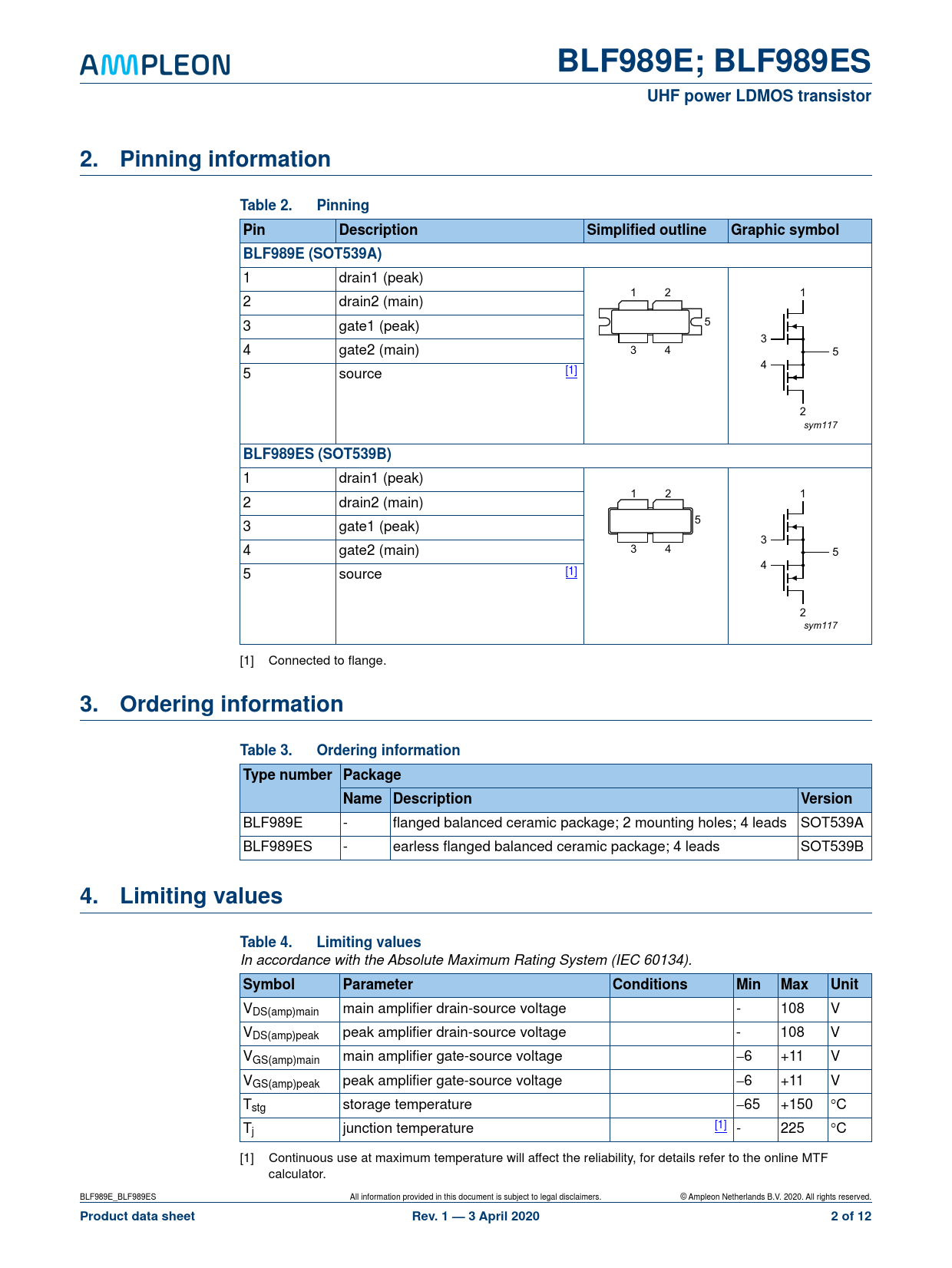

BLF989E; BLF989ES. UHF power LDMOS transistor. 2. Pinning. information. Table 2. Pinning. Pin. Description. Simplified outline
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 2 link to page 2 link to page 2
BLF989E; BLF989ES UHF power LDMOS transistor 2. Pinning information Table 2. Pinning Pin Description Simplified outline Graphic symbol BLF989E (SOT539A)
1 drain1 (peak) 1 2 1 2 drain2 (main) 3 gate1 (peak) 5 3 4 gate2 (main) 3 4 5 4 5 source [1] 2 sym117
BLF989ES (SOT539B)
1 drain1 (peak) 1 2 1 2 drain2 (main) 3 gate1 (peak) 5 3 4 gate2 (main) 3 4 5 4 5 source [1] 2 sym117 [1] Connected to flange.
3. Ordering information Table 3. Ordering information Type number Package Name Description Version
BLF989E - flanged balanced ceramic package; 2 mounting holes; 4 leads SOT539A BLF989ES - earless flanged balanced ceramic package; 4 leads SOT539B
4. Limiting values Table 4. Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol Parameter Conditions Min Max Unit
VDS(amp)main main amplifier drain-source voltage - 108 V VDS(amp)peak peak amplifier drain-source voltage - 108 V VGS(amp)main main amplifier gate-source voltage 6 +11 V VGS(amp)peak peak amplifier gate-source voltage 6 +11 V Tstg storage temperature 65 +150 C Tj junction temperature [1] - 225 C [1] Continuous use at maximum temperature will affect the reliability, for details refer to the online MTF calculator. BLF989E_BLF989ES All information provided in this document is subject to legal disclaimers. © Ampleon Netherlands B.V. 2020. All rights reserved.
Product data sheet Rev. 1 — 3 April 2020 2 of 12
