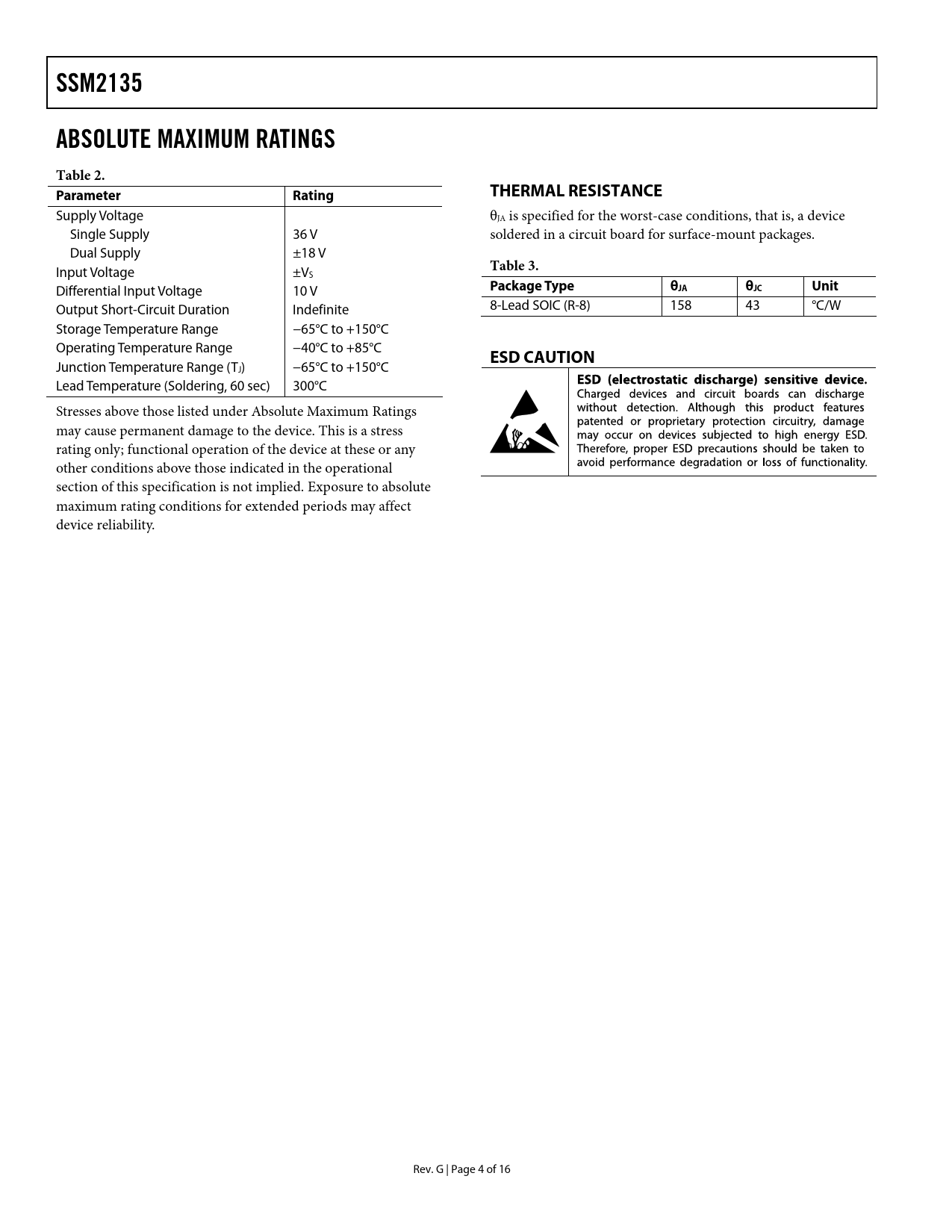

SSM2135. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter Rating. THERMAL RESISTANCE. Table 3. Package Type. θJA. θJC Unit. ESD CAUTION
Línea de modelo para esta hoja de datos
Versión de texto del documento
SSM2135 ABSOLUTE MAXIMUM RATINGS Table 2. Parameter Rating THERMAL RESISTANCE
Supply Voltage θJA is specified for the worst-case conditions, that is, a device Single Supply 36 V soldered in a circuit board for surface-mount packages. Dual Supply ±18 V Input Voltage ±V
Table 3.
S Differential Input Voltage 10 V
Package Type θJA θJC Unit
Output Short-Circuit Duration Indefinite 8-Lead SOIC (R-8) 158 43 °C/W Storage Temperature Range −65°C to +150°C Operating Temperature Range −40°C to +85°C
ESD CAUTION
Junction Temperature Range (TJ) −65°C to +150°C Lead Temperature (Soldering, 60 sec) 300°C Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Rev. G | Page 4 of 16 Document Outline FEATURES APPLICATIONS PIN CONNECTIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS APPLICATIONS INFORMATION APPLICATION CIRCUITS Low Noise Stereo Headphone Driver Amplifier Low Noise Microphone Preamplifier Single Supply Differential Line Driver Single-Supply Differential Line Receiver Pseudoreference Voltage Generator Digital Volume Control Circuit Logarithmic Volume Control Circuit OUTLINE DIMENSIONS ORDERING GUIDE
