Datasheet AD8017 (Analog Devices) - 5
| Fabricante | Analog Devices |
| Descripción | Low Cost, High Output Current, High Output Voltage Line Driver |
| Páginas / Página | 16 / 5 — Typical Performance Characteristics–AD8017. OUTPUT = 100mV. mV/DIV. … |
| Revisión | C |
| Formato / tamaño de archivo | PDF / 235 Kb |
| Idioma del documento | Inglés |
Typical Performance Characteristics–AD8017. OUTPUT = 100mV. mV/DIV. 25mV/DIV. INPUT = 50mV. INPUT = 100mV. 50mV/DIV. 200ns/DIV
Línea de modelo para esta hoja de datos
Versión de texto del documento
Typical Performance Characteristics–AD8017 OUTPUT = 100mV OUTPUT = 100mV mV/DIV 25 25mV/DIV INPUT = 50mV INPUT = 100mV 50mV/DIV 200ns/DIV 200ns/DIV

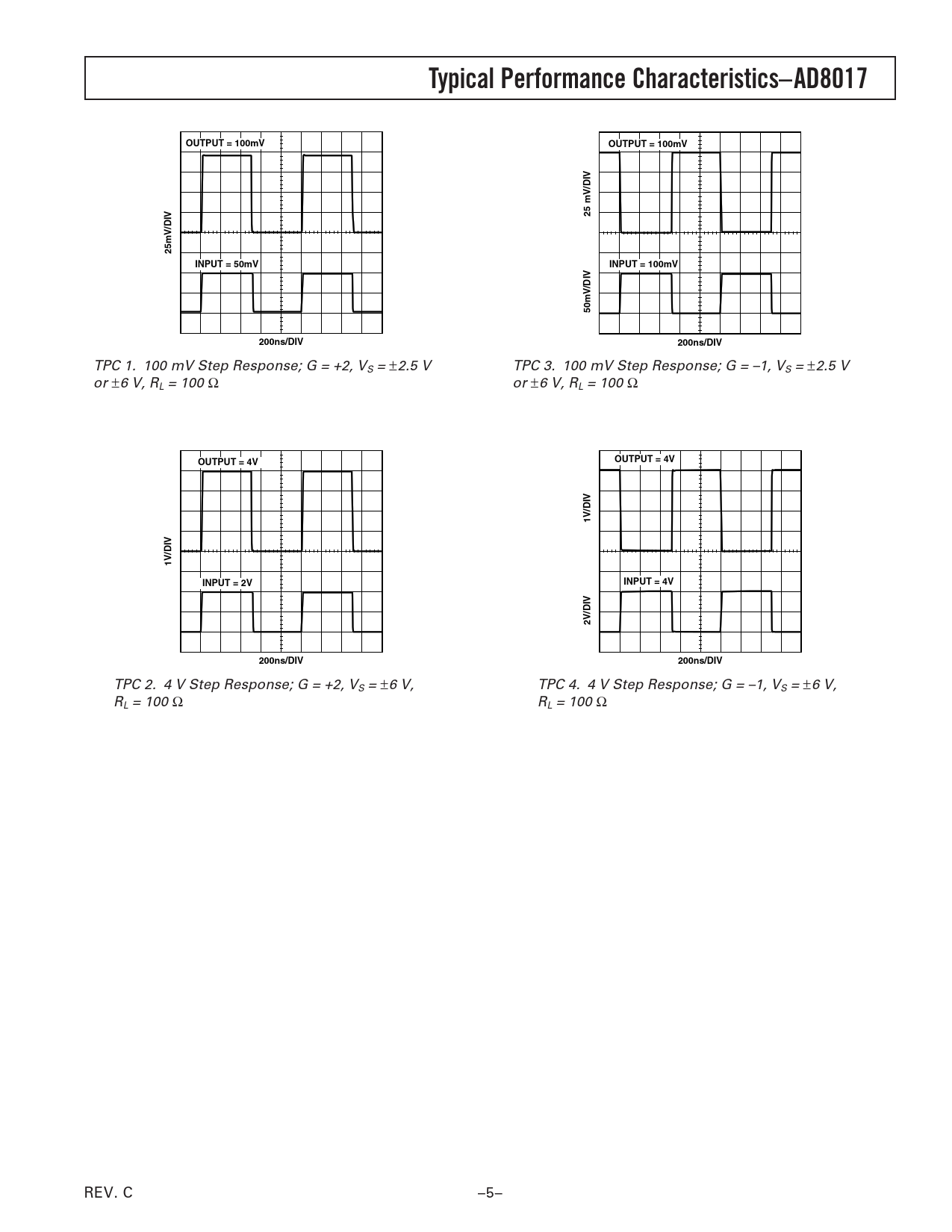

TPC 1. 100 mV Step Response; G = +2, VS = ±2.5 V TPC 3. 100 mV Step Response; G = –1, VS = ±2.5 V or ±6 V, RL = 100 Ω or ±6 V, RL = 100 Ω
OUTPUT = 4V OUTPUT = 4V 1V/DIV 1V/DIV INPUT = 2V INPUT = 4V 2V/DIV 200ns/DIV 200ns/DIV
TPC 2. 4 V Step Response; G = +2, VS = ±6 V, TPC 4. 4 V Step Response; G = –1, VS = ±6 V, RL = 100 Ω RL = 100 Ω REV. C –5–
TPC 1. 100 mV Step Response; G = +2, VS = ±2.5 V TPC 3. 100 mV Step Response; G = –1, VS = ±2.5 V or ±6 V, RL = 100 Ω or ±6 V, RL = 100 Ω
OUTPUT = 4V OUTPUT = 4V 1V/DIV 1V/DIV INPUT = 2V INPUT = 4V 2V/DIV 200ns/DIV 200ns/DIV
TPC 2. 4 V Step Response; G = +2, VS = ±6 V, TPC 4. 4 V Step Response; G = –1, VS = ±6 V, RL = 100 Ω RL = 100 Ω REV. C –5–
