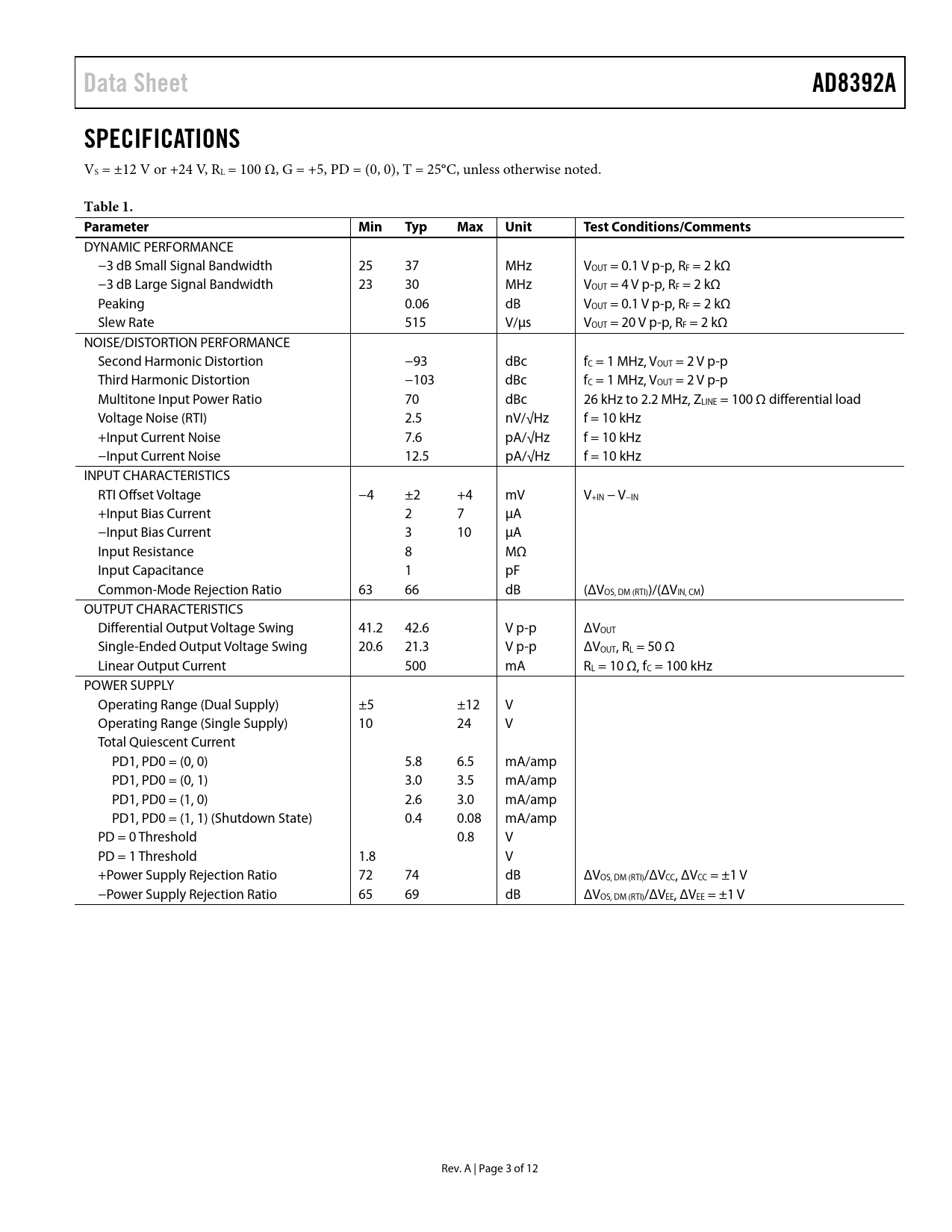

Data Sheet AD8392A SPECIFICATIONS
VS = ±12 V or +24 V, RL = 100 Ω, G = +5, PD = (0, 0), T = 25°C, unless otherwise noted.
Table 1. Parameter Min Typ Max Unit Test Conditions/Comments
DYNAMIC PERFORMANCE −3 dB Small Signal Bandwidth 25 37 MHz VOUT = 0.1 V p-p, RF = 2 kΩ −3 dB Large Signal Bandwidth 23 30 MHz VOUT = 4 V p-p, RF = 2 kΩ Peaking 0.06 dB VOUT = 0.1 V p-p, RF = 2 kΩ Slew Rate 515 V/µs VOUT = 20 V p-p, RF = 2 kΩ NOISE/DISTORTION PERFORMANCE Second Harmonic Distortion −93 dBc fC = 1 MHz, VOUT = 2 V p-p Third Harmonic Distortion −103 dBc fC = 1 MHz, VOUT = 2 V p-p Multitone Input Power Ratio 70 dBc 26 kHz to 2.2 MHz, ZLINE = 100 Ω differential load Voltage Noise (RTI) 2.5 nV/√Hz f = 10 kHz +Input Current Noise 7.6 pA/√Hz f = 10 kHz −Input Current Noise 12.5 pA/√Hz f = 10 kHz INPUT CHARACTERISTICS RTI Offset Voltage −4 ±2 +4 mV V+IN − V−IN +Input Bias Current 2 7 µA −Input Bias Current 3 10 µA Input Resistance 8 MΩ Input Capacitance 1 pF Common-Mode Rejection Ratio 63 66 dB (ΔVOS, DM (RTI))/(ΔVIN, CM) OUTPUT CHARACTERISTICS Differential Output Voltage Swing 41.2 42.6 V p-p ΔVOUT Single-Ended Output Voltage Swing 20.6 21.3 V p-p ΔVOUT, RL = 50 Ω Linear Output Current 500 mA RL = 10 Ω, fC = 100 kHz POWER SUPPLY Operating Range (Dual Supply) ±5 ±12 V Operating Range (Single Supply) 10 24 V Total Quiescent Current PD1, PD0 = (0, 0) 5.8 6.5 mA/amp PD1, PD0 = (0, 1) 3.0 3.5 mA/amp PD1, PD0 = (1, 0) 2.6 3.0 mA/amp PD1, PD0 = (1, 1) (Shutdown State) 0.4 0.08 mA/amp PD = 0 Threshold 0.8 V PD = 1 Threshold 1.8 V +Power Supply Rejection Ratio 72 74 dB ΔVOS, DM (RTI)/ΔVCC, ΔVCC = ±1 V −Power Supply Rejection Ratio 65 69 dB ΔVOS, DM (RTI)/ΔVEE, ΔVEE = ±1 V Rev. A | Page 3 of 12 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION PIN CONFIGURATIONS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE Maximum Power Dissipation ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION APPLICATIONS SUPPLIES, GROUNDING, AND LAYOUT POWER MANAGEMENT THERMAL CONSIDERATIONS TYPICAL ADSL/ADSL2+ APPLICATION MULTITONE POWER RATIO OUTLINE DIMENSIONS ORDERING GUIDE NOTES
