Datasheet ADA4310-1 (Analog Devices) - 3
| Fabricante | Analog Devices |
| Descripción | Low Cost, Dual, High Current Output Line Driver with Shutdown |
| Páginas / Página | 14 / 3 — Data Sheet. ADA4310-1. SPECIFICATIONS. Table 1. Parameter. Test … |
| Revisión | C |
| Formato / tamaño de archivo | PDF / 413 Kb |
| Idioma del documento | Inglés |

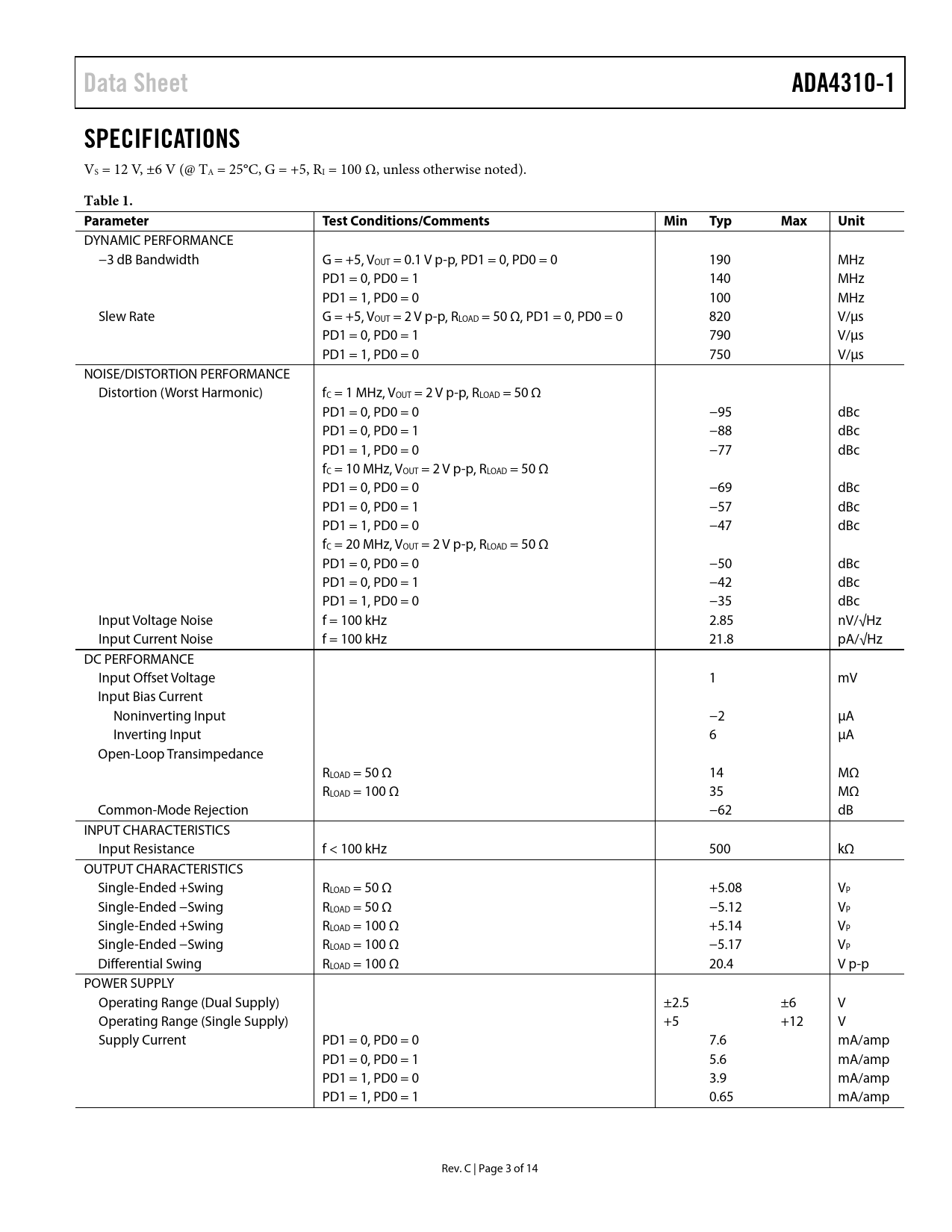

Data Sheet. ADA4310-1. SPECIFICATIONS. Table 1. Parameter. Test Conditions/Comments. Min. Typ. Max. Unit
Línea de modelo para esta hoja de datos
Versión de texto del documento
Data Sheet ADA4310-1 SPECIFICATIONS
VS = 12 V, ±6 V (@ TA = 25°C, G = +5, RI = 100 Ω, unless otherwise noted).
Table 1. Parameter Test Conditions/Comments Min Typ Max Unit
DYNAMIC PERFORMANCE −3 dB Bandwidth G = +5, VOUT = 0.1 V p-p, PD1 = 0, PD0 = 0 190 MHz PD1 = 0, PD0 = 1 140 MHz PD1 = 1, PD0 = 0 100 MHz Slew Rate G = +5, VOUT = 2 V p-p, RLOAD = 50 Ω, PD1 = 0, PD0 = 0 820 V/µs PD1 = 0, PD0 = 1 790 V/µs PD1 = 1, PD0 = 0 750 V/µs NOISE/DISTORTION PERFORMANCE Distortion (Worst Harmonic) fC = 1 MHz, VOUT = 2 V p-p, RLOAD = 50 Ω PD1 = 0, PD0 = 0 −95 dBc PD1 = 0, PD0 = 1 −88 dBc PD1 = 1, PD0 = 0 −77 dBc fC = 10 MHz, VOUT = 2 V p-p, RLOAD = 50 Ω PD1 = 0, PD0 = 0 −69 dBc PD1 = 0, PD0 = 1 −57 dBc PD1 = 1, PD0 = 0 −47 dBc fC = 20 MHz, VOUT = 2 V p-p, RLOAD = 50 Ω PD1 = 0, PD0 = 0 −50 dBc PD1 = 0, PD0 = 1 −42 dBc PD1 = 1, PD0 = 0 −35 dBc Input Voltage Noise f = 100 kHz 2.85 nV/√Hz Input Current Noise f = 100 kHz 21.8 pA/√Hz DC PERFORMANCE Input Offset Voltage 1 mV Input Bias Current Noninverting Input −2 µA Inverting Input 6 µA Open-Loop Transimpedance RLOAD = 50 Ω 14 MΩ RLOAD = 100 Ω 35 MΩ Common-Mode Rejection −62 dB INPUT CHARACTERISTICS Input Resistance f < 100 kHz 500 kΩ OUTPUT CHARACTERISTICS Single-Ended +Swing RLOAD = 50 Ω +5.08 VP Single-Ended −Swing RLOAD = 50 Ω −5.12 VP Single-Ended +Swing RLOAD = 100 Ω +5.14 VP Single-Ended −Swing RLOAD = 100 Ω −5.17 VP Differential Swing RLOAD = 100 Ω 20.4 V p-p POWER SUPPLY Operating Range (Dual Supply) ±2.5 ±6 V Operating Range (Single Supply) +5 +12 V Supply Current PD1 = 0, PD0 = 0 7.6 mA/amp PD1 = 0, PD0 = 1 5.6 mA/amp PD1 = 1, PD0 = 0 3.9 mA/amp PD1 = 1, PD0 = 1 0.65 mA/amp Rev. C | Page 3 of 14 Document Outline FEATURES APPLICATIONS PIN CONFIGURATIONS GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE Maximum Power Dissipation ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION APPLICATIONS INFORMATION FEEDBACK RESISTOR SELECTION POWER CONTROL MODES OF OPERATION EXPOSED THERMAL PAD CONNECTIONS POWER LINE APPLICATION BOARD LAYOUT POWER SUPPLY BYPASSING OUTLINE DIMENSIONS ORDERING GUIDE
