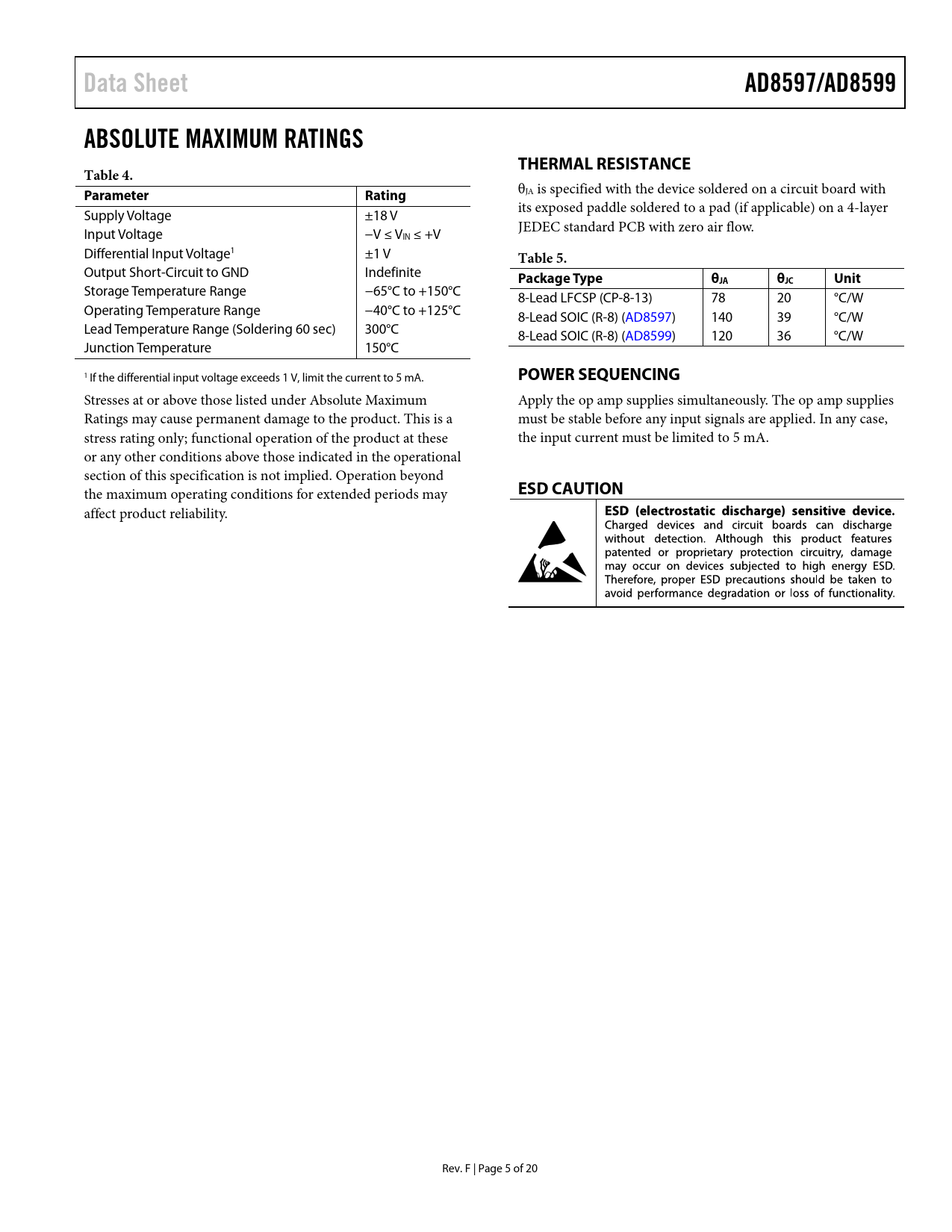

Data Sheet. AD8597/AD8599. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table 4. Parameter. Rating. Table 5. Package Type. θJA. θJC. Unit
Línea de modelo para esta hoja de datos
Versión de texto del documento
Data Sheet AD8597/AD8599 ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE Table 4. Parameter Rating
θJA is specified with the device soldered on a circuit board with Supply Voltage ±18 V its exposed paddle soldered to a pad (if applicable) on a 4-layer Input Voltage −V ≤ V JEDEC standard PCB with zero air flow. IN ≤ +V Differential Input Voltage1 ±1 V
Table 5.
Output Short-Circuit to GND Indefinite
Package Type θJA θJC Unit
Storage Temperature Range −65°C to +150°C 8-Lead LFCSP (CP-8-13) 78 20 °C/W Operating Temperature Range −40°C to +125°C 8-Lead SOIC (R-8) (AD8597) 140 39 °C/W Lead Temperature Range (Soldering 60 sec) 300°C 8-Lead SOIC (R-8) (AD8599) 120 36 °C/W Junction Temperature 150°C 1 If the differential input voltage exceeds 1 V, limit the current to 5 mA.
POWER SEQUENCING
Stresses at or above those listed under Absolute Maximum Apply the op amp supplies simultaneously. The op amp supplies Ratings may cause permanent damage to the product. This is a must be stable before any input signals are applied. In any case, stress rating only; functional operation of the product at these the input current must be limited to 5 mA. or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may
ESD CAUTION
affect product reliability. Rev. F | Page 5 of 20 Document Outline FEATURES APPLICATIONS PIN CONFIGURATIONS GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE POWER SEQUENCING ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS FUNCTIONAL OPERATION INPUT VOLTAGE RANGE OUTPUT PHASE REVERSAL NOISE AND SOURCE IMPEDANCE CONSIDERATIONS OUTLINE DIMENSIONS ORDERING GUIDE
