Nexperia. NCR320PAS / NCR321PAS. 250 mA LED driver in DFN2020D-6. 6. Limiting values. Table 6. Limiting values. Symbol. Parameter
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 3 link to page 3 link to page 3 link to page 3 link to page 3

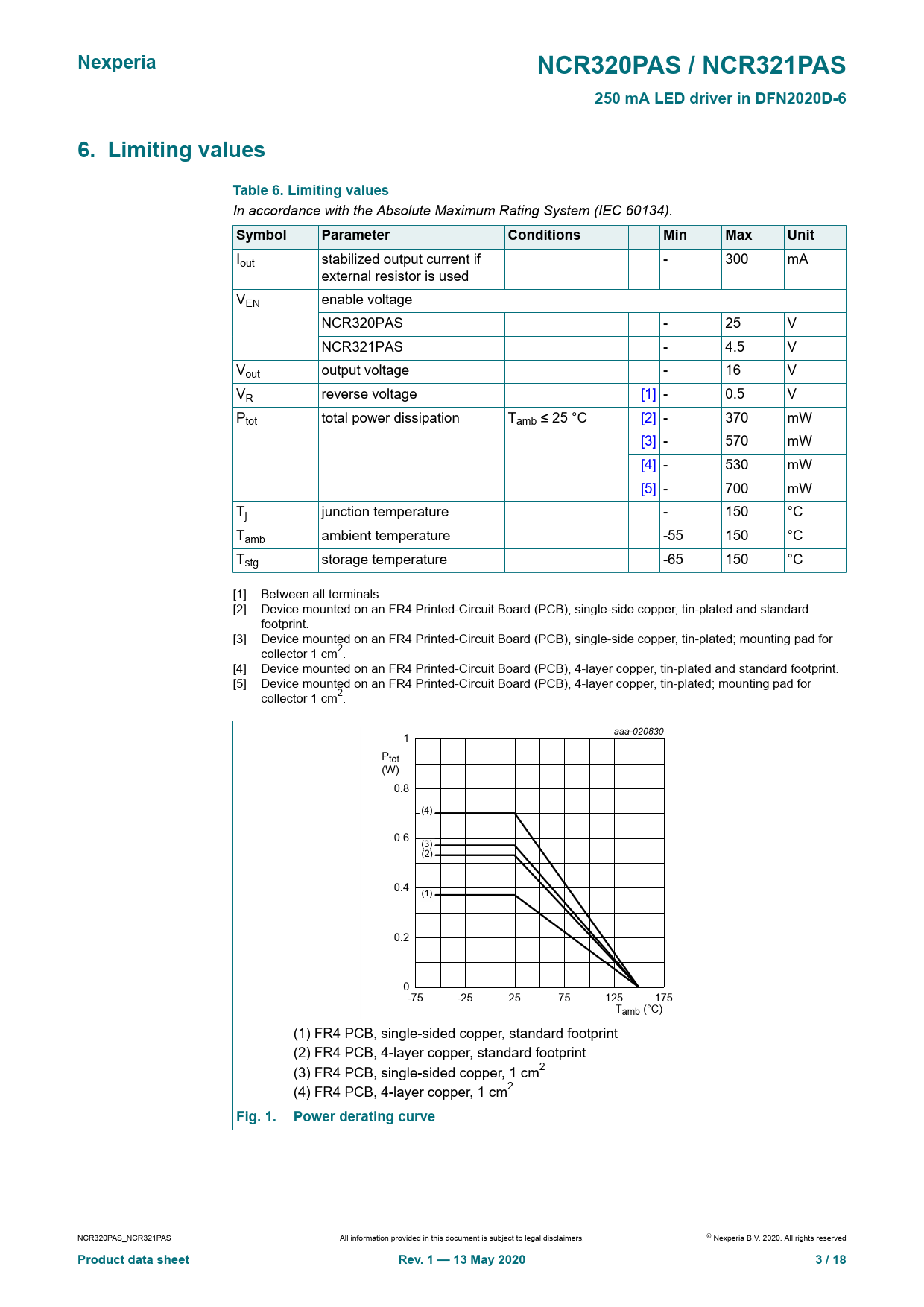

Nexperia NCR320PAS / NCR321PAS 250 mA LED driver in DFN2020D-6 6. Limiting values Table 6. Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol Parameter Conditions Min Max Unit
Iout stabilized output current if - 300 mA external resistor is used VEN enable voltage NCR320PAS - 25 V NCR321PAS - 4.5 V Vout output voltage - 16 V VR reverse voltage [1] - 0.5 V Ptot total power dissipation Tamb ≤ 25 °C [2] - 370 mW [3] - 570 mW [4] - 530 mW [5] - 700 mW Tj junction temperature - 150 °C Tamb ambient temperature -55 150 °C Tstg storage temperature -65 150 °C [1] Between all terminals. [2] Device mounted on an FR4 Printed-Circuit Board (PCB), single-side copper, tin-plated and standard footprint. [3] Device mounted on an FR4 Printed-Circuit Board (PCB), single-side copper, tin-plated; mounting pad for collector 1 cm2. [4] Device mounted on an FR4 Printed-Circuit Board (PCB), 4-layer copper, tin-plated and standard footprint. [5] Device mounted on an FR4 Printed-Circuit Board (PCB), 4-layer copper, tin-plated; mounting pad for collector 1 cm2. aaa-020830 1 Ptot (W) 0.8 (4) 0.6 (3) (2) 0.4 (1) 0.2 0-75 -25 25 75 125 175 Tamb (°C) (1) FR4 PCB, single-sided copper, standard footprint (2) FR4 PCB, 4-layer copper, standard footprint (3) FR4 PCB, single-sided copper, 1 cm2 (4) FR4 PCB, 4-layer copper, 1 cm2
Fig. 1. Power derating curve
NCR320PAS_NCR321PAS All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2020. Al rights reserved
Product data sheet Rev. 1 — 13 May 2020 3 / 18
