PD15-22C
Línea de modelo para esta hoja de datos
Versión de texto del documento
PD15-22C

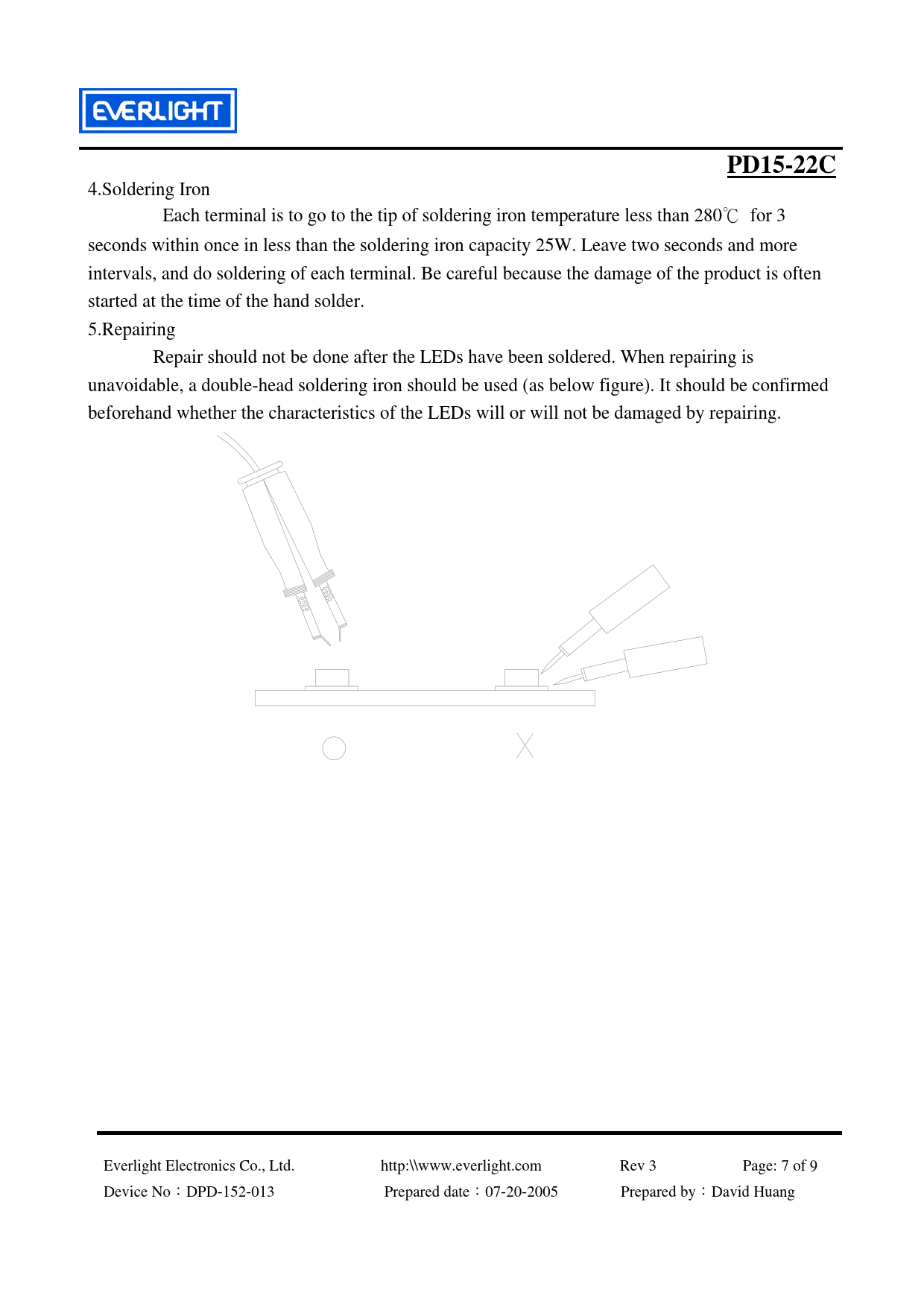

4.Soldering Iron Each terminal is to go to the tip of soldering iron temperature less than 280℃ for 3 seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder. 5.Repairing Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing. Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev 3 Page: 7 of 9 Device No：DPD-152-013 Prepared date：07-20-2005 Prepared by：David Huang
