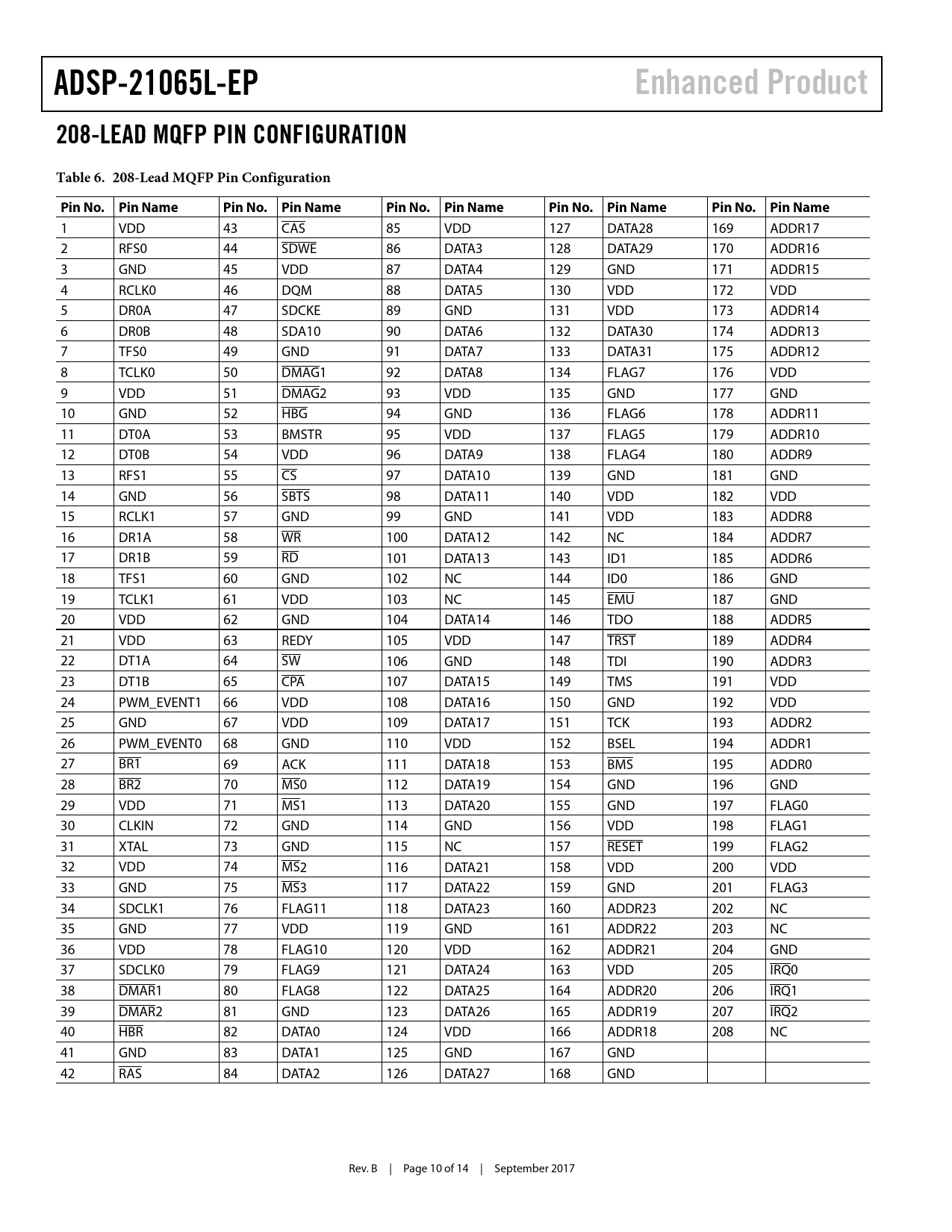

ADSP-21065L-EP Enhanced Product 208-LEAD MQFP PIN CONFIGURATION Table 6. 208-Lead MQFP Pin Configuration Pin No. Pin Name Pin No. Pin Name Pin No. Pin Name Pin No. Pin Name Pin No. Pin Name
1 VDD 43 CAS 85 VDD 127 DATA28 169 ADDR17 2 RFS0 44 SDWE 86 DATA3 128 DATA29 170 ADDR16 3 GND 45 VDD 87 DATA4 129 GND 171 ADDR15 4 RCLK0 46 DQM 88 DATA5 130 VDD 172 VDD 5 DR0A 47 SDCKE 89 GND 131 VDD 173 ADDR14 6 DR0B 48 SDA10 90 DATA6 132 DATA30 174 ADDR13 7 TFS0 49 GND 91 DATA7 133 DATA31 175 ADDR12 8 TCLK0 50 DMAG1 92 DATA8 134 FLAG7 176 VDD 9 VDD 51 DMAG2 93 VDD 135 GND 177 GND 10 GND 52 HBG 94 GND 136 FLAG6 178 ADDR11 11 DT0A 53 BMSTR 95 VDD 137 FLAG5 179 ADDR10 12 DT0B 54 VDD 96 DATA9 138 FLAG4 180 ADDR9 13 RFS1 55 CS 97 DATA10 139 GND 181 GND 14 GND 56 SBTS 98 DATA11 140 VDD 182 VDD 15 RCLK1 57 GND 99 GND 141 VDD 183 ADDR8 16 DR1A 58 WR 100 DATA12 142 NC 184 ADDR7 17 DR1B 59 RD 101 DATA13 143 ID1 185 ADDR6 18 TFS1 60 GND 102 NC 144 ID0 186 GND 19 TCLK1 61 VDD 103 NC 145 EMU 187 GND 20 VDD 62 GND 104 DATA14 146 TDO 188 ADDR5 21 VDD 63 REDY 105 VDD 147 TRST 189 ADDR4 22 DT1A 64 SW 106 GND 148 TDI 190 ADDR3 23 DT1B 65 CPA 107 DATA15 149 TMS 191 VDD 24 PWM_EVENT1 66 VDD 108 DATA16 150 GND 192 VDD 25 GND 67 VDD 109 DATA17 151 TCK 193 ADDR2 26 PWM_EVENT0 68 GND 110 VDD 152 BSEL 194 ADDR1 27 BR1 69 ACK 111 DATA18 153 BMS 195 ADDR0 28 BR2 70 MS0 112 DATA19 154 GND 196 GND 29 VDD 71 MS1 113 DATA20 155 GND 197 FLAG0 30 CLKIN 72 GND 114 GND 156 VDD 198 FLAG1 31 XTAL 73 GND 115 NC 157 RESET 199 FLAG2 32 VDD 74 MS2 116 DATA21 158 VDD 200 VDD 33 GND 75 MS3 117 DATA22 159 GND 201 FLAG3 34 SDCLK1 76 FLAG11 118 DATA23 160 ADDR23 202 NC 35 GND 77 VDD 119 GND 161 ADDR22 203 NC 36 VDD 78 FLAG10 120 VDD 162 ADDR21 204 GND 37 SDCLK0 79 FLAG9 121 DATA24 163 VDD 205 IRQ0 38 DMAR1 80 FLAG8 122 DATA25 164 ADDR20 206 IRQ1 39 DMAR2 81 GND 123 DATA26 165 ADDR19 207 IRQ2 40 HBR 82 DATA0 124 VDD 166 ADDR18 208 NC 41 GND 83 DATA1 125 GND 167 GND 42 RAS 84 DATA2 126 DATA27 168 GND Rev. B | Page 10 of 14 | September 2017 Document Outline Summary Enhanced Product (EP) Features Features Table of Contents Revision History General Description Pin Function Descriptions Specifications Operating Conditions Absolute Maximum Ratings ESD Caution Package Marking Information Environmental Conditions Thermal Characteristics 208-LEAD MQFP Pin Configuration Outline Dimensions Ordering Guide
