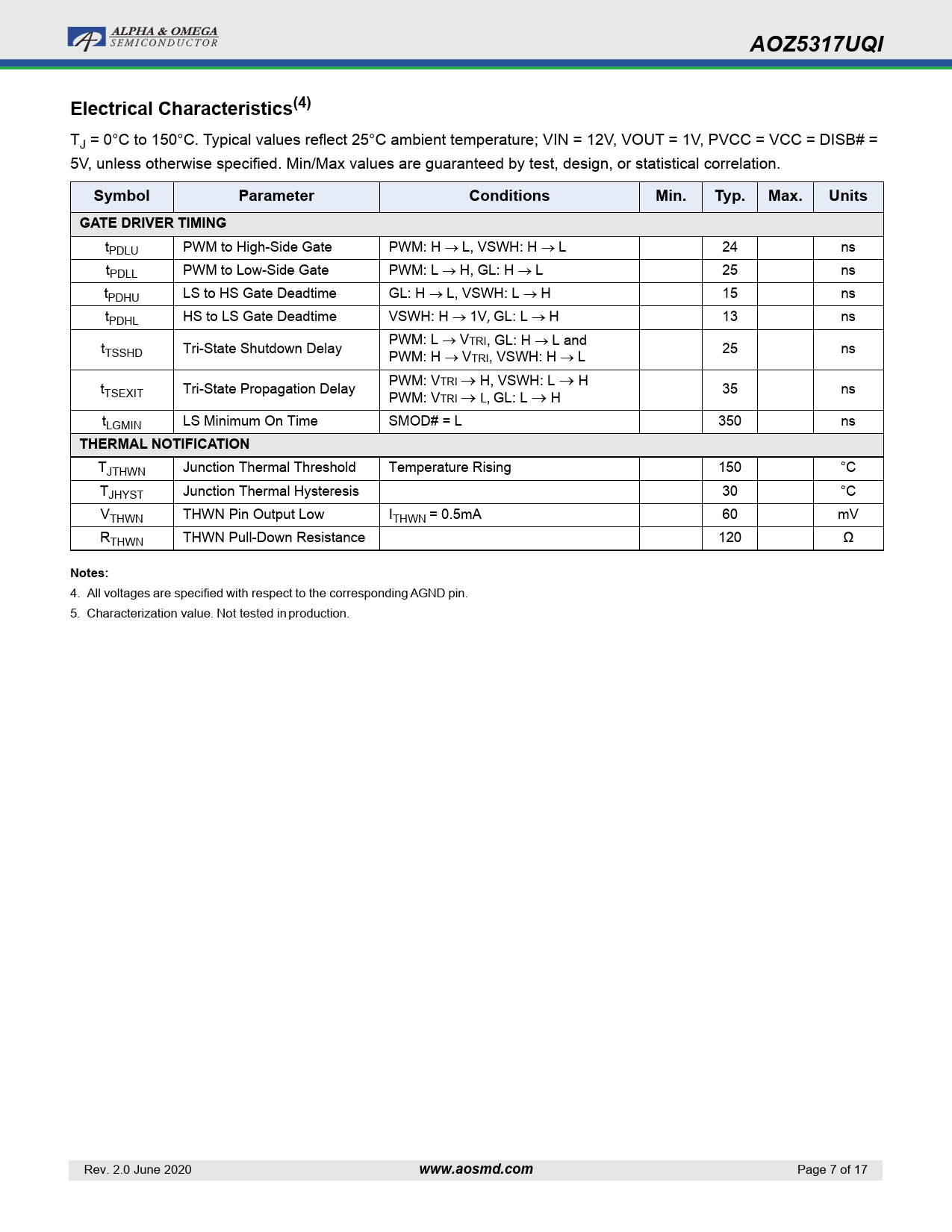

AOZ5317UQIElectrical Characteristics(4) TJ = 0°C to 150°C. Typical values reflect 25°C ambient temperature; VIN = 12V, VOUT = 1V, PVCC = VCC = DISB# = 5V, unless otherwise specified. Min/Max values are guaranteed by test, design, or statistical correlation. SymbolParameterConditionsMin.Typ.Max.UnitsGATE DRIVER TIMING tPDLU PWM to High-Side Gate PWM: H L, VSWH: H L 24 ns tPDLL PWM to Low-Side Gate PWM: L H, GL: H L 25 ns tPDHU LS to HS Gate Deadtime GL: H L, VSWH: L H 15 ns tPDHL HS to LS Gate Deadtime VSWH: H 1V, GL: L H 13 ns PWM: L V t TRI, GL: H L and TSSHD Tri-State Shutdown Delay 25 ns PWM: H VTRI, VSWH: H L PWM: V t TRI H, VSWH: L H TSEXIT Tri-State Propagation Delay 35 ns PWM: VTRI L, GL: L H tLGMIN LS Minimum On Time SMOD# = L 350 ns THERMAL NOTIFICATION TJTHWN Junction Thermal Threshold Temperature Rising 150 °C TJHYST Junction Thermal Hysteresis 30 °C VTHWN THWN Pin Output Low ITHWN = 0.5mA 60 mV RTHWN THWN Pull-Down Resistance 120 Ω Notes: 4. All voltages are specified with respect to the corresponding AGND pin. 5. Characterization value. Not tested in production. Rev. 2.0 June 2020 www.aosmd.com Page 7 of 17
