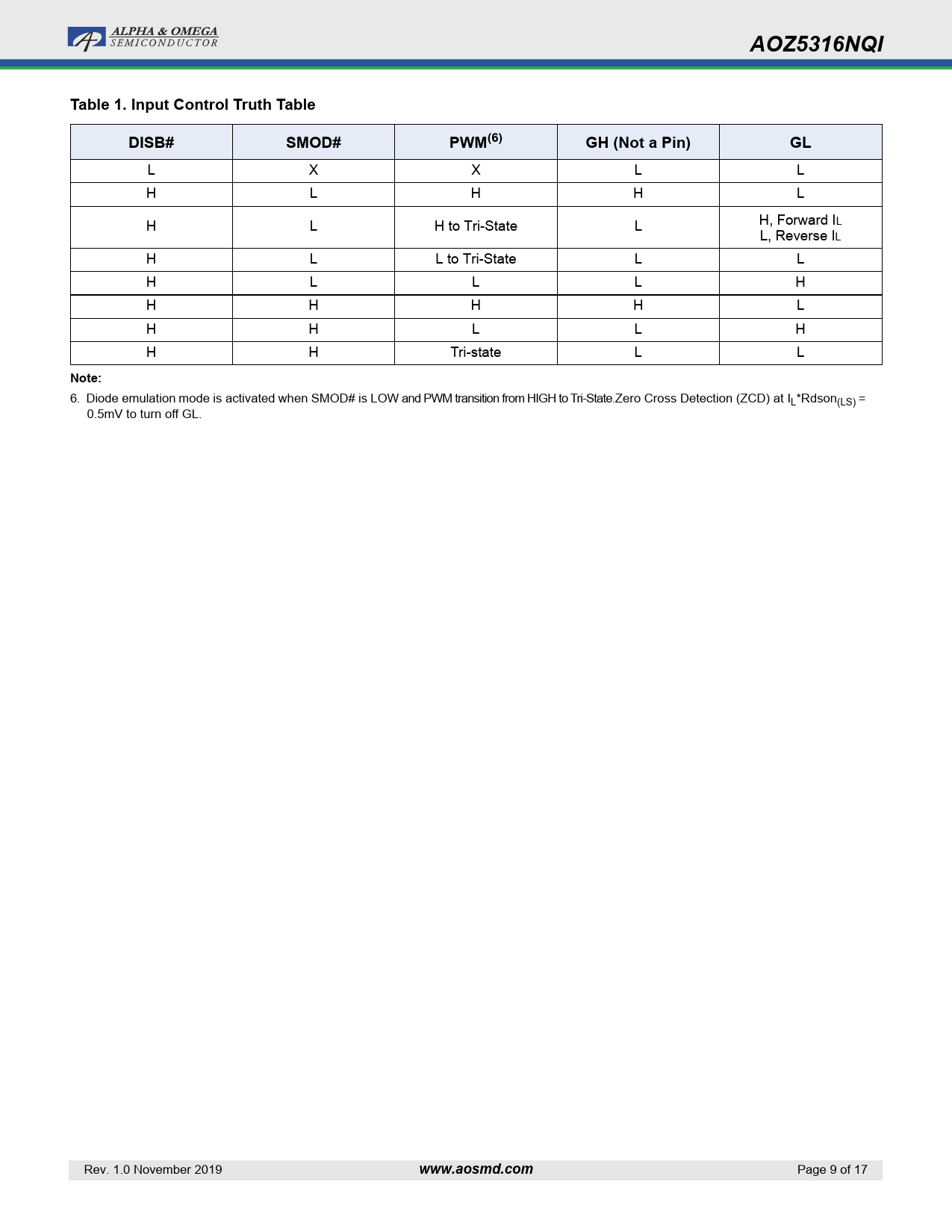

AOZ5316NQI. Table 1. Input Control Truth Table. DISB#. SMOD#. PWM(6). GH (Not a Pin). Note:. www.aosmd.com
Línea de modelo para esta hoja de datos
Versión de texto del documento
AOZ5316NQI Table 1. Input Control Truth Table DISB# SMOD# PWM(6) GH (Not a Pin) GL
L X X L L H L H H L H L H to Tri-State L H, Forward IL L, Reverse IL H L L to Tri-State L L H L L L H H H H H L H H L L H H H Tri-state L L
Note:
6. Diode emulation mode is activated when SMOD# is LOW and PWM transition from HIGH to Tri-State.Zero Cross Detection (ZCD) at IL*Rdson(LS) = 0.5mV to turn off GL. Rev. 1.0 November 2019
www.aosmd.com
Page 9 of 17
