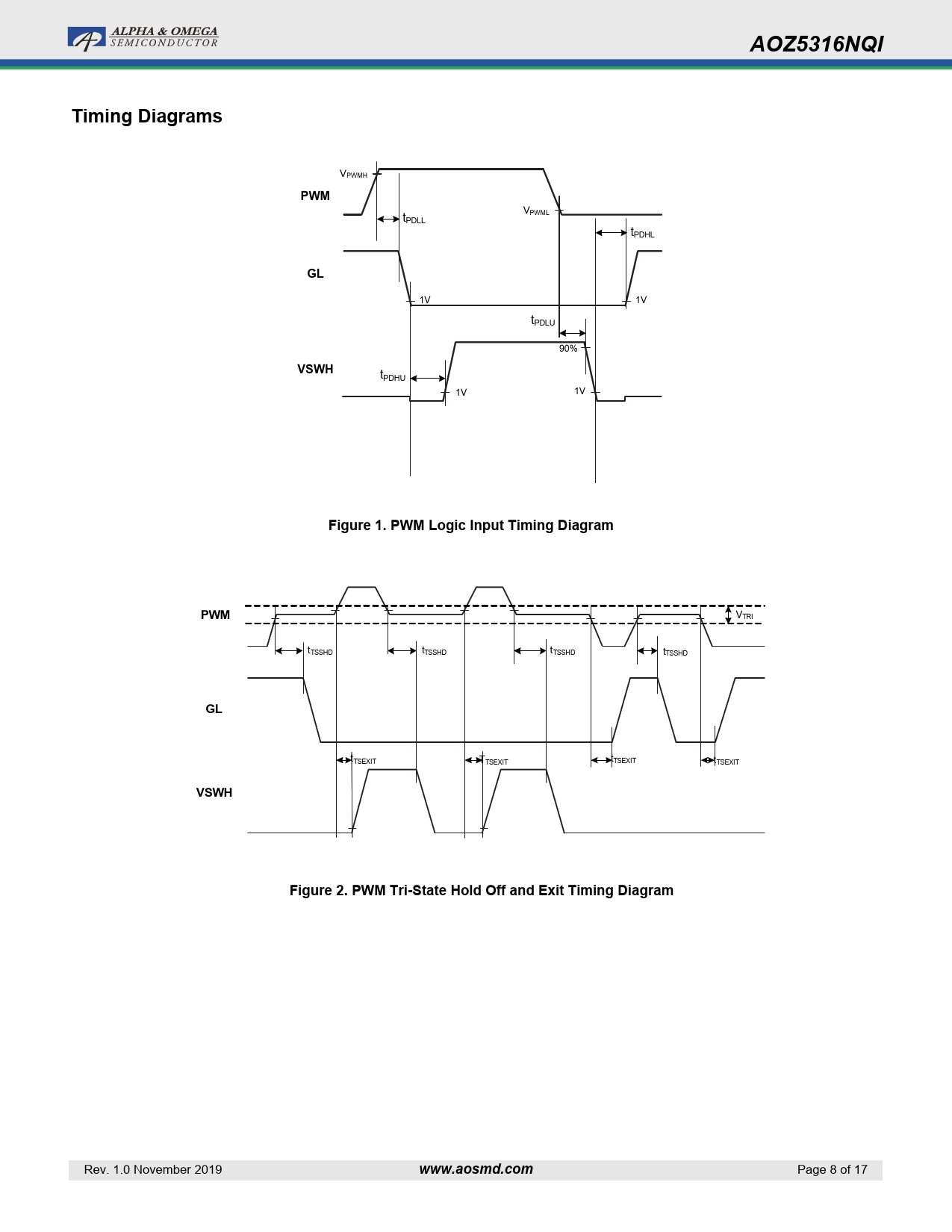

AOZ5316NQI. Timing Diagrams. PWM. VSWH. Figure 1. PWM Logic Input Timing Diagram
Línea de modelo para esta hoja de datos
Versión de texto del documento
AOZ5316NQI Timing Diagrams
VPWMH
PWM
VPWML tPDLL tPDHL
GL
1V 1V tPDLU 90%
VSWH
tPDHU 1V 1V
Figure 1. PWM Logic Input Timing Diagram PWM
VTRI tTSSHD tTSSHD tTSSHD tTSSHD
GL
tTSEXIT TTSEXIT tTSEXIT tTSEXIT
VSWH Figure 2. PWM Tri-State Hold Off and Exit Timing Diagram
