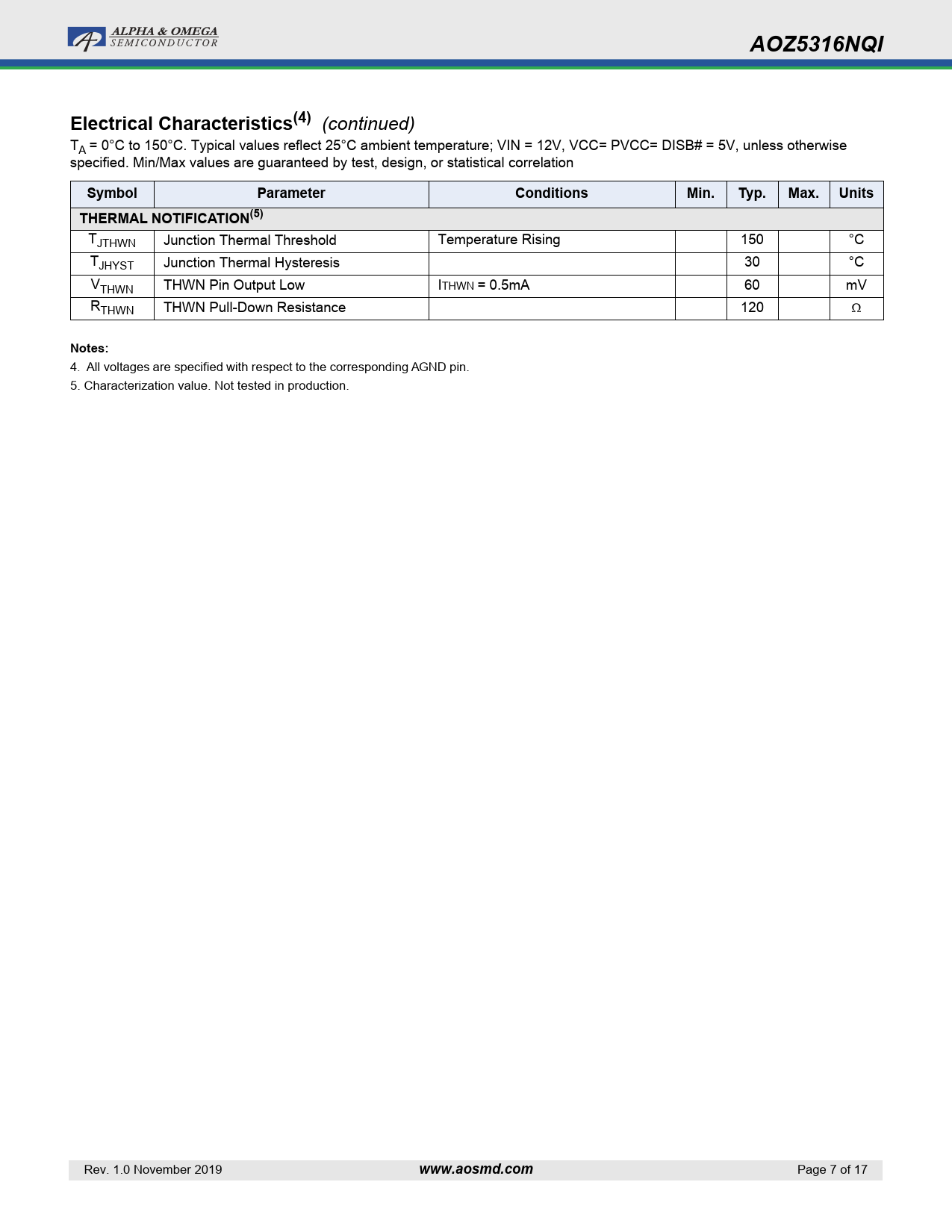

AOZ5316NQI. Electrical Characteristics(4). Symbol. Parameter. Conditions. Min. Typ. Max. Units. THERMAL NOTIFICATION(5). Notes:
Línea de modelo para esta hoja de datos
Versión de texto del documento
AOZ5316NQI Electrical Characteristics(4)
(continued) TA = 0°C to 150°C. Typical values reflect 25°C ambient temperature; VIN = 12V, VCC= PVCC= DISB# = 5V, unless otherwise specified. Min/Max values are guaranteed by test, design, or statistical correlation
Symbol Parameter Conditions Min. Typ. Max. Units THERMAL NOTIFICATION(5)
TJTHWN Junction Thermal Threshold Temperature Rising 150 °C TJHYST Junction Thermal Hysteresis 30 °C VTHWN THWN Pin Output Low ITHWN = 0.5mA 60 mV RTHWN THWN Pull-Down Resistance 120
Notes:
4. All voltages are specified with respect to the corresponding AGND pin. 5. Characterization value. Not tested in production. Rev. 1.0 November 2019
www.aosmd.com
Page 7 of 17
(continued) TA = 0°C to 150°C. Typical values reflect 25°C ambient temperature; VIN = 12V, VCC= PVCC= DISB# = 5V, unless otherwise specified. Min/Max values are guaranteed by test, design, or statistical correlation
Symbol Parameter Conditions Min. Typ. Max. Units THERMAL NOTIFICATION(5)
TJTHWN Junction Thermal Threshold Temperature Rising 150 °C TJHYST Junction Thermal Hysteresis 30 °C VTHWN THWN Pin Output Low ITHWN = 0.5mA 60 mV RTHWN THWN Pull-Down Resistance 120
Notes:
4. All voltages are specified with respect to the corresponding AGND pin. 5. Characterization value. Not tested in production. Rev. 1.0 November 2019
www.aosmd.com
Page 7 of 17
