Datasheet AOZ5312NQI (Alpha & Omega) - 9
| Fabricante | Alpha & Omega |
| Descripción | High-Current, High-Performance DrMOS Power Module |
| Páginas / Página | 17 / 9 — AOZ5312NQI. Table 1. Input Control Truth Table. DISB#. SMOD#. PWM(7). GH … |
| Formato / tamaño de archivo | PDF / 2.6 Mb |
| Idioma del documento | Inglés |

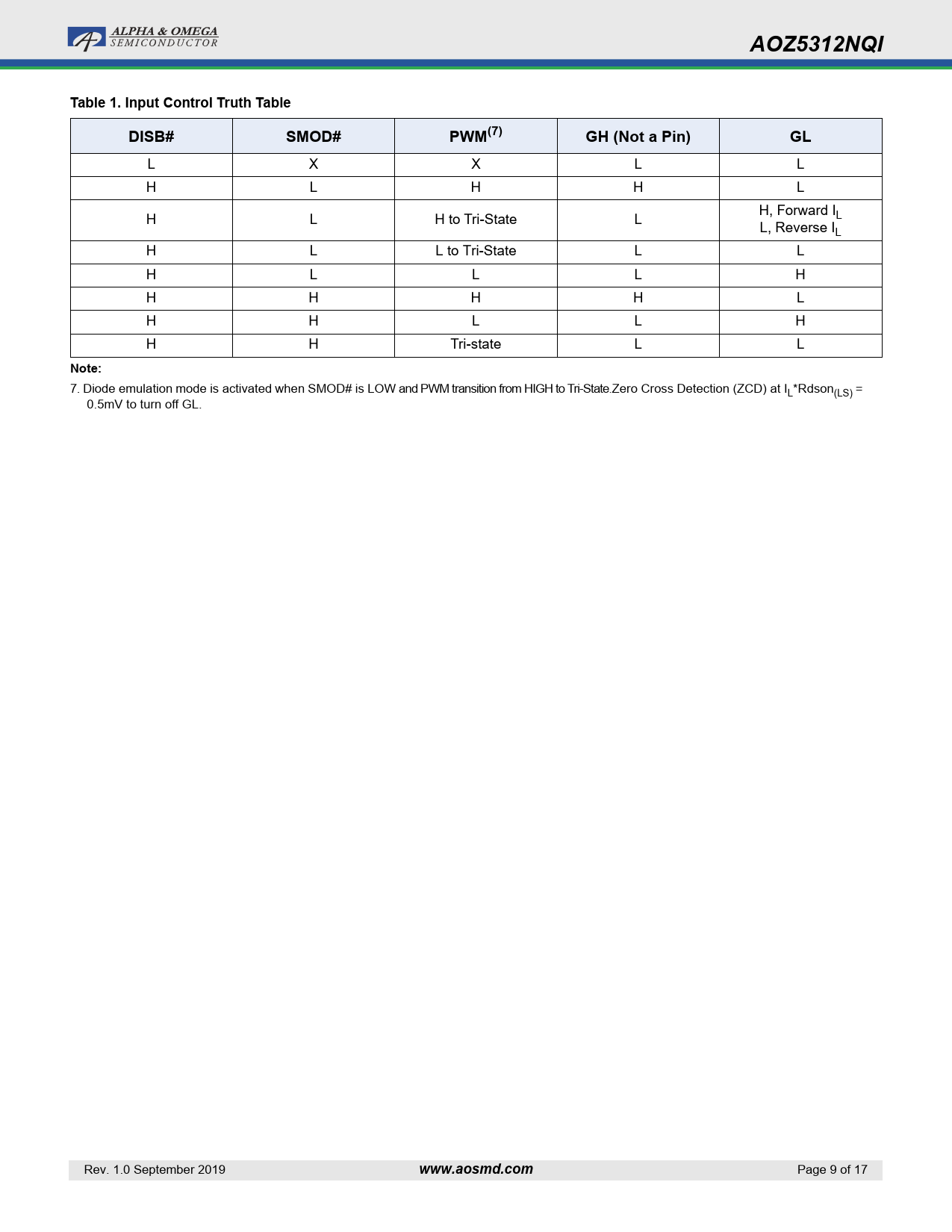

AOZ5312NQI. Table 1. Input Control Truth Table. DISB#. SMOD#. PWM(7). GH (Not a Pin). Note:. www.aosmd.com
Línea de modelo para esta hoja de datos
Versión de texto del documento
AOZ5312NQI Table 1. Input Control Truth Table DISB# SMOD# PWM(7) GH (Not a Pin) GL
L X X L L H L H H L H L H to Tri-State L H, Forward IL L, Reverse IL H L L to Tri-State L L H L L L H H H H H L H H L L H H H Tri-state L L
Note:
7. Diode emulation mode is activated when SMOD# is LOW and PWM transition from HIGH to Tri-State.Zero Cross Detection (ZCD) at IL*Rdson(LS) = 0.5mV to turn off GL. Rev. 1.0 September 2019
