AOZ5312NQI. Electrical Characteristics(4). Symbol. Parameter. Conditions. Min. Typ. Max. Units. THERMAL NOTIFICATION(5). Notes:
Línea de modelo para esta hoja de datos
Versión de texto del documento

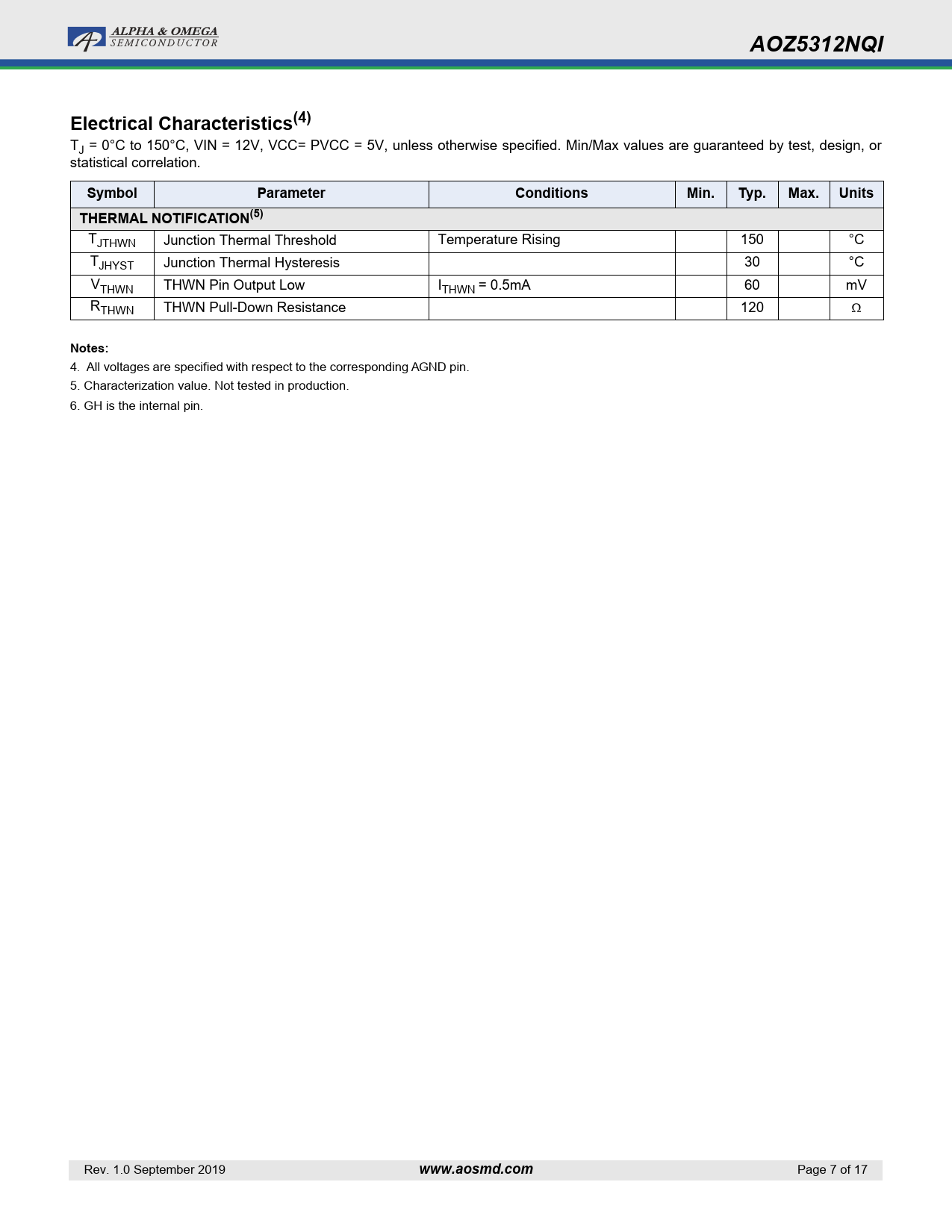

AOZ5312NQI Electrical Characteristics(4)
TJ = 0°C to 150°C, VIN = 12V, VCC= PVCC = 5V, unless otherwise specified. Min/Max values are guaranteed by test, design, or statistical correlation.
Symbol Parameter Conditions Min. Typ. Max. Units THERMAL NOTIFICATION(5)
TJTHWN Junction Thermal Threshold Temperature Rising 150 °C TJHYST Junction Thermal Hysteresis 30 °C VTHWN THWN Pin Output Low ITHWN = 0.5mA 60 mV RTHWN THWN Pull-Down Resistance 120
Notes:
4. All voltages are specified with respect to the corresponding AGND pin. 5. Characterization value. Not tested in production. 6. GH is the internal pin. Rev. 1.0 September 2019
