Datasheet AOZ5311UQI (Alpha & Omega) - 7
| Fabricante | Alpha & Omega |
| Descripción | High-Current, High-Performance DrMOS Power Module |
| Páginas / Página | 18 / 7 — AOZ5311UQI. Electrical Characteristics(4). Symbol. Parameter. Conditions. … |
| Formato / tamaño de archivo | PDF / 2.8 Mb |
| Idioma del documento | Inglés |

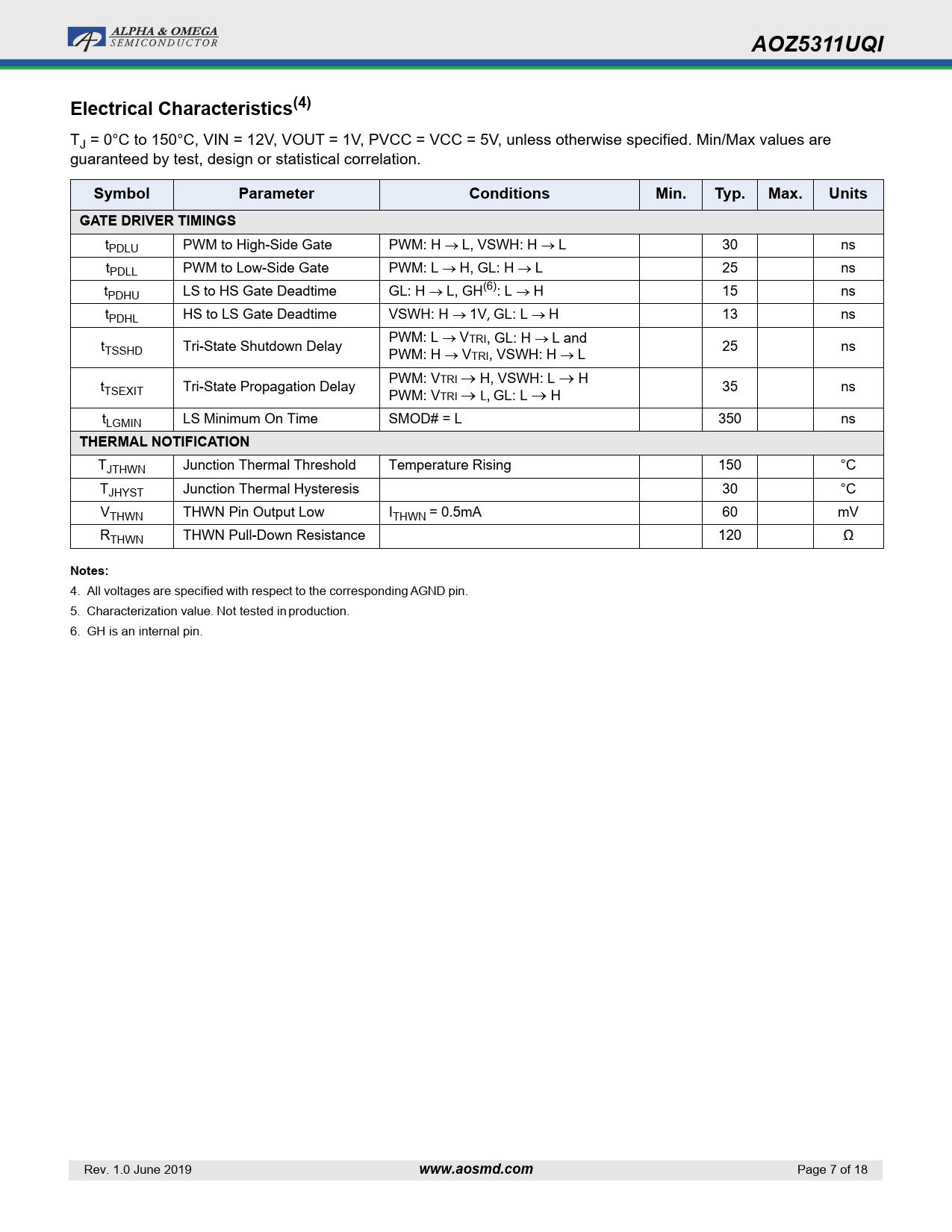

AOZ5311UQI. Electrical Characteristics(4). Symbol. Parameter. Conditions. Min. Typ. Max. Units. GATE DRIVER TIMINGS. THERMAL NOTIFICATION
Línea de modelo para esta hoja de datos
Versión de texto del documento
AOZ5311UQI Electrical Characteristics(4)
TJ = 0°C to 150°C, VIN = 12V, VOUT = 1V, PVCC = VCC = 5V, unless otherwise specified. Min/Max values are guaranteed by test, design or statistical correlation.
Symbol Parameter Conditions Min. Typ. Max. Units GATE DRIVER TIMINGS
tPDLU PWM to High-Side Gate PWM: H L, VSWH: H L 30 ns tPDLL PWM to Low-Side Gate PWM: L H, GL: H L 25 ns tPDHU LS to HS Gate Deadtime GL: H L, GH(6): L H 15 ns tPDHL HS to LS Gate Deadtime VSWH: H 1V, GL: L H 13 ns tTSSHD Tri-State Shutdown Delay PWM: L VTRI, GL: H L and PWM: H VTRI, VSWH: H L 25 ns tTSEXIT Tri-State Propagation Delay PWM: VTRI H, VSWH: L H PWM: VTRI L, GL: L H 35 ns tLGMIN LS Minimum On Time SMOD# = L 350 ns
THERMAL NOTIFICATION
TJTHWN Junction Thermal Threshold Temperature Rising 150 °C TJHYST Junction Thermal Hysteresis 30 °C VTHWN THWN Pin Output Low ITHWN = 0.5mA 60 mV RTHWN THWN Pull-Down Resistance 120 Ω
Notes:
4. All voltages are specified with respect to the corresponding AGND pin. 5. Characterization value. Not tested in production. 6. GH is an internal pin. Rev. 1.0 June 2019
www.aosmd.com
Page 7 of 18
TJ = 0°C to 150°C, VIN = 12V, VOUT = 1V, PVCC = VCC = 5V, unless otherwise specified. Min/Max values are guaranteed by test, design or statistical correlation.
Symbol Parameter Conditions Min. Typ. Max. Units GATE DRIVER TIMINGS
tPDLU PWM to High-Side Gate PWM: H L, VSWH: H L 30 ns tPDLL PWM to Low-Side Gate PWM: L H, GL: H L 25 ns tPDHU LS to HS Gate Deadtime GL: H L, GH(6): L H 15 ns tPDHL HS to LS Gate Deadtime VSWH: H 1V, GL: L H 13 ns tTSSHD Tri-State Shutdown Delay PWM: L VTRI, GL: H L and PWM: H VTRI, VSWH: H L 25 ns tTSEXIT Tri-State Propagation Delay PWM: VTRI H, VSWH: L H PWM: VTRI L, GL: L H 35 ns tLGMIN LS Minimum On Time SMOD# = L 350 ns
THERMAL NOTIFICATION
TJTHWN Junction Thermal Threshold Temperature Rising 150 °C TJHYST Junction Thermal Hysteresis 30 °C VTHWN THWN Pin Output Low ITHWN = 0.5mA 60 mV RTHWN THWN Pull-Down Resistance 120 Ω
Notes:
4. All voltages are specified with respect to the corresponding AGND pin. 5. Characterization value. Not tested in production. 6. GH is an internal pin. Rev. 1.0 June 2019
www.aosmd.com
Page 7 of 18
