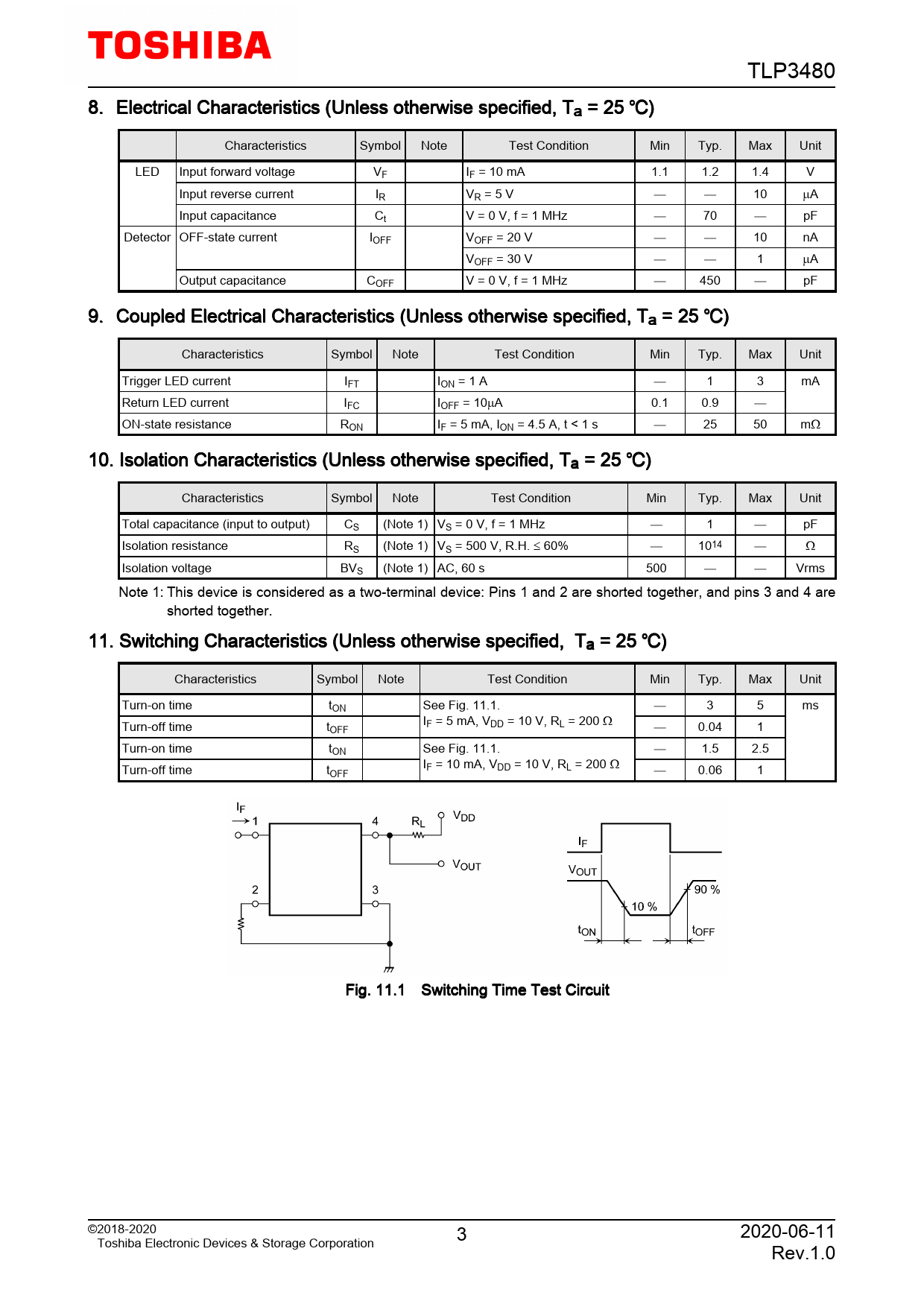

TLP3480. 8. Electrical. Characteristics. (Unless. otherwise. specified,. Ta. =. 25. ). Characteristics. Symbol. Note. Test. Condition. Min. Typ. Max. Unit. LED

TLP3480 8 Electrical Characteristics (Unless otherwise specified, Ta = 25 ) Characteristics Symbol Note Test Condition Min Typ Max Unit LED

Línea de modelo para esta hoja de datos

Versión de texto del documento

TLP3480 8. Electrical Characteristics (Unless otherwise specified, Ta = 25 ) Characteristics Symbol Note Test Condition Min Typ. Max Unit LED Input forward voltage VF IF = 10 mA 1.1 1.2 1.4 V Input reverse current IR VR = 5 V   10 µA Input capacitance Ct V = 0 V, f = 1 MHz  70  pF Detector OFF-state current IOFF VOFF = 20 V   10 nA VOFF = 30 V   1 µA Output capacitance COFF V = 0 V, f = 1 MHz  450  pF 9. Coupled Electrical Characteristics (Unless otherwise specified, Ta = 25 ) Characteristics Symbol Note Test Condition Min Typ. Max Unit Trigger LED current IFT ION = 1 A  1 3 mA Return LED current IFC IOFF = 10µA 0.1 0.9  ON-state resistance RON IF = 5 mA, ION = 4.5 A, t < 1 s  25 50 mΩ 10. Isolation Characteristics (Unless otherwise specified, Ta = 25 ) Characteristics Symbol Note Test Condition Min Typ. Max Unit Total capacitance (input to output) CS (Note 1) VS = 0 V, f = 1 MHz  1  pF Isolation resistance RS (Note 1) VS = 500 V, R.H. ≤ 60%  1014  Ω Isolation voltage BVS (Note 1) AC, 60 s 500   Vrms Note 1: This device is considered as a two-terminal device: Pins 1 and 2 are shorted together, and pins 3 and 4 are shorted together. 11. Switching Characteristics (Unless otherwise specified, Ta = 25 ) Characteristics Symbol Note Test Condition Min Typ. Max Unit Turn-on time tON See Fig. 11.1.  3 5 ms Turn-off time t IF = 5 mA, VDD = 10 V, RL = 200 Ω OFF  0.04 1 Turn-on time tON See Fig. 11.1.  1.5 2.5 Turn-off time t IF = 10 mA, VDD = 10 V, RL = 200 Ω OFF  0.06 1 Fig. 11.1 Switching Time Test Circuit ©2018-2020 3 2020-06-11 Toshiba Electronic Devices & Storage Corporation Rev.1.0
