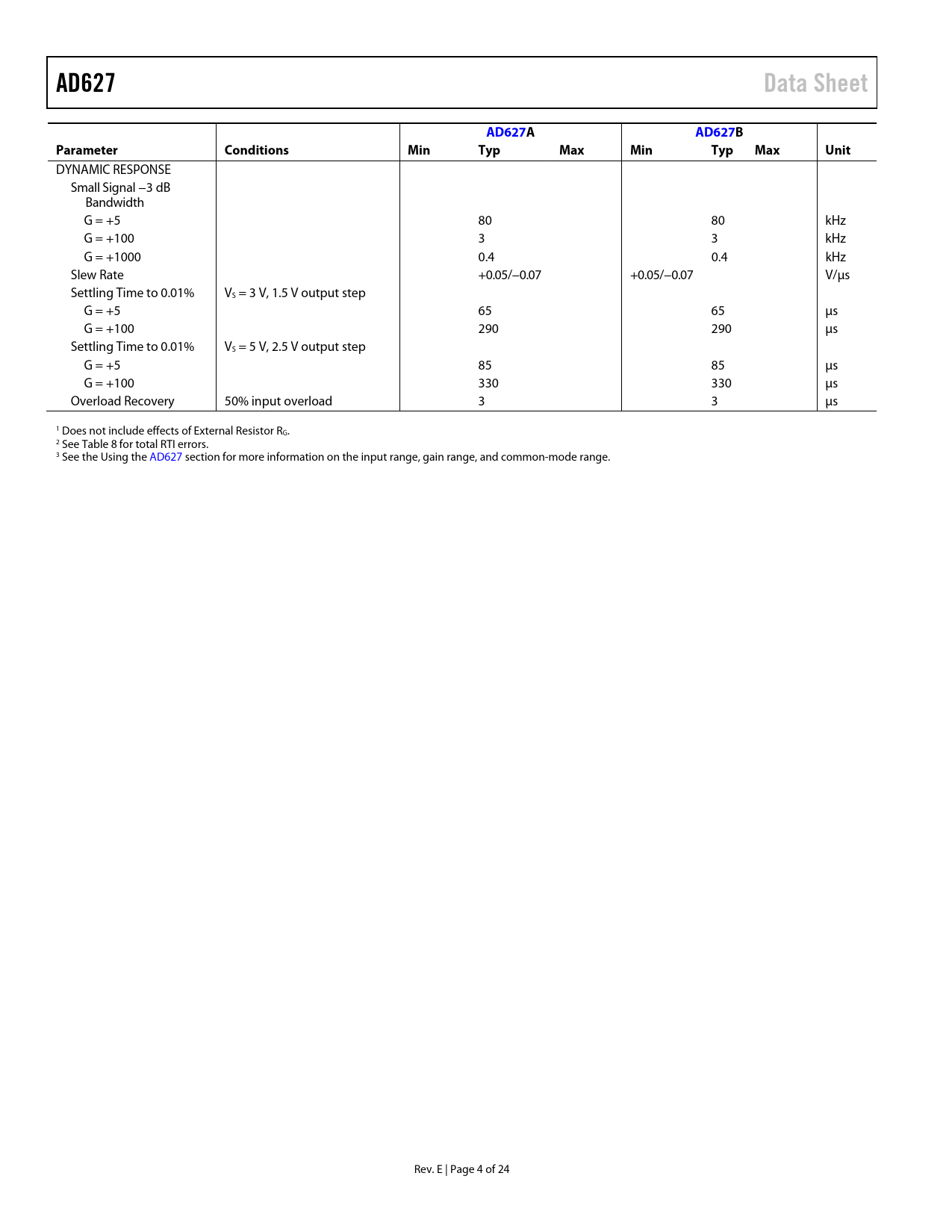

AD627 Data Sheet AD627A AD627B Parameter Conditions Min Typ Max Min Typ Max Unit
DYNAMIC RESPONSE Small Signal −3 dB Bandwidth G = +5 80 80 kHz G = +100 3 3 kHz G = +1000 0.4 0.4 kHz Slew Rate +0.05/−0.07 +0.05/−0.07 V/µs Settling Time to 0.01% VS = 3 V, 1.5 V output step G = +5 65 65 µs G = +100 290 290 µs Settling Time to 0.01% VS = 5 V, 2.5 V output step G = +5 85 85 µs G = +100 330 330 µs Overload Recovery 50% input overload 3 3 µs 1 Does not include effects of External Resistor RG. 2 See Table 8 for total RTI errors. 3 See the Using the AD627 section for more information on the input range, gain range, and common-mode range. Rev. E | Page 4 of 24 Document Outline Features Applications Functional Block Diagram General Description Table of Contents Revision History Specifications Single Supply Dual Supply Dual and Single Supplies Absolute Maximum Ratings ESD Caution Pin Configurations and Function Descriptions Typical Performance Characteristics Theory of Operation Using the AD627 Basic Connections Setting the Gain Reference Terminal Input Range Limitations in Single-Supply Applications Output Buffering Input and Output Offset Errors Make vs. Buy: A Typical Application Error Budget Errors Due to AC CMRR Ground Returns for Input Bias Currents Layout and Grounding Input Protection RF Interference Applications Circuits Classic Bridge Circuit 4 mA to 20 mA Single-Supply Receiver Thermocouple Amplifier Outline Dimensions Ordering Guide
