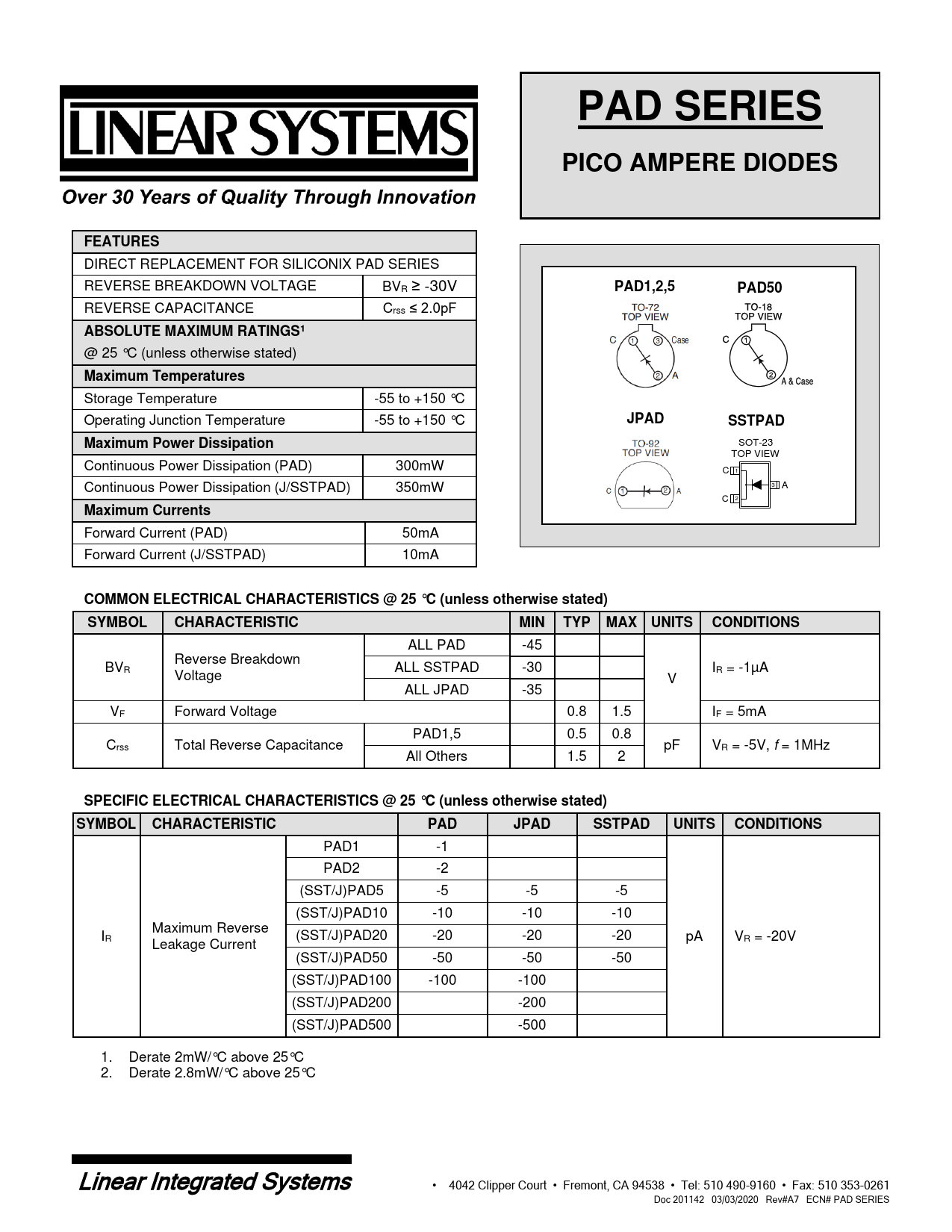

PAD SERIES. PICO AMPERE DIODES. FEATURES. PAD1,2,5. PAD50. ABSOLUTE MAXIMUM RATINGS1. Maximum Temperatures. JPAD. SSTPAD
Línea de modelo para esta hoja de datos
Versión de texto del documento
PAD SERIES PICO AMPERE DIODES FEATURES
DIRECT REPLACEMENT FOR SILICONIX PAD SERIES REVERSE BREAKDOWN VOLTAGE BVR ≥ -30V
PAD1,2,5 PAD50
REVERSE CAPACITANCE Crss ≤ 2.0pF
ABSOLUTE MAXIMUM RATINGS1
@ 25 °C (unless otherwise stated)
Maximum Temperatures
Storage Temperature -55 to +150 °C Operating Junction Temperature -55 to +150 °C
JPAD SSTPAD Maximum Power Dissipation
SOT-23 TOP VIEW Continuous Power Dissipation (PAD) 300mW C 1 K Continuous Power Dissipation (J/SSTPAD) 350mW 3 A 2 K C
Maximum Currents
Forward Current (PAD) 50mA Forward Current (J/SSTPAD) 10mA
COMMON ELECTRICAL CHARACTERISTICS @ 25 °C (unless otherwise stated) SYMBOL CHARACTERISTIC MIN TYP MAX UNITS CONDITIONS
ALL PAD -45 Reverse Breakdown BVR ALL SSTPAD -30 IR = -1µA Voltage V ALL JPAD -35 V F Forward Voltage 0.8 1.5 IF = 5mA PAD1,5 0.5 0.8 Crss Total Reverse Capacitance pF VR = -5V, f = 1MHz All Others 1.5 2
SPECIFIC ELECTRICAL CHARACTERISTICS @ 25 °C (unless otherwise stated) SYMBOL CHARACTERISTIC PAD JPAD SSTPAD UNITS CONDITIONS
PAD1 -1 PAD2 -2 (SST/J)PAD5 -5 -5 -5 (SST/J)PAD10 -10 -10 -10 Maximum Reverse IR (SST/J)PAD20 -20 -20 -20 pA V Leakage Current R = -20V (SST/J)PAD50 -50 -50 -50 (SST/J)PAD100 -100 -100 (SST/J)PAD200 -200 (SST/J)PAD500 -500 1. Derate 2mW/°C above 25°C 2. Derate 2.8mW/°C above 25°C Linear Integrated Systems • 4042 Clipper Court • Fremont, CA 94538 • Tel: 510 490-9160 • Fax: 510 353-0261 Doc 201142 03/03/2020 Rev#A7 ECN# PAD SERIES
