Datasheet AD834 (Analog Devices) - 6
| Fabricante | Analog Devices |
| Descripción | 500 MHz Four-Quadrant Multiplier |
| Páginas / Página | 20 / 6 — AD834. Data Sheet. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. TOP VIEW. … |
| Revisión | F |
| Formato / tamaño de archivo | PDF / 353 Kb |
| Idioma del documento | Inglés |

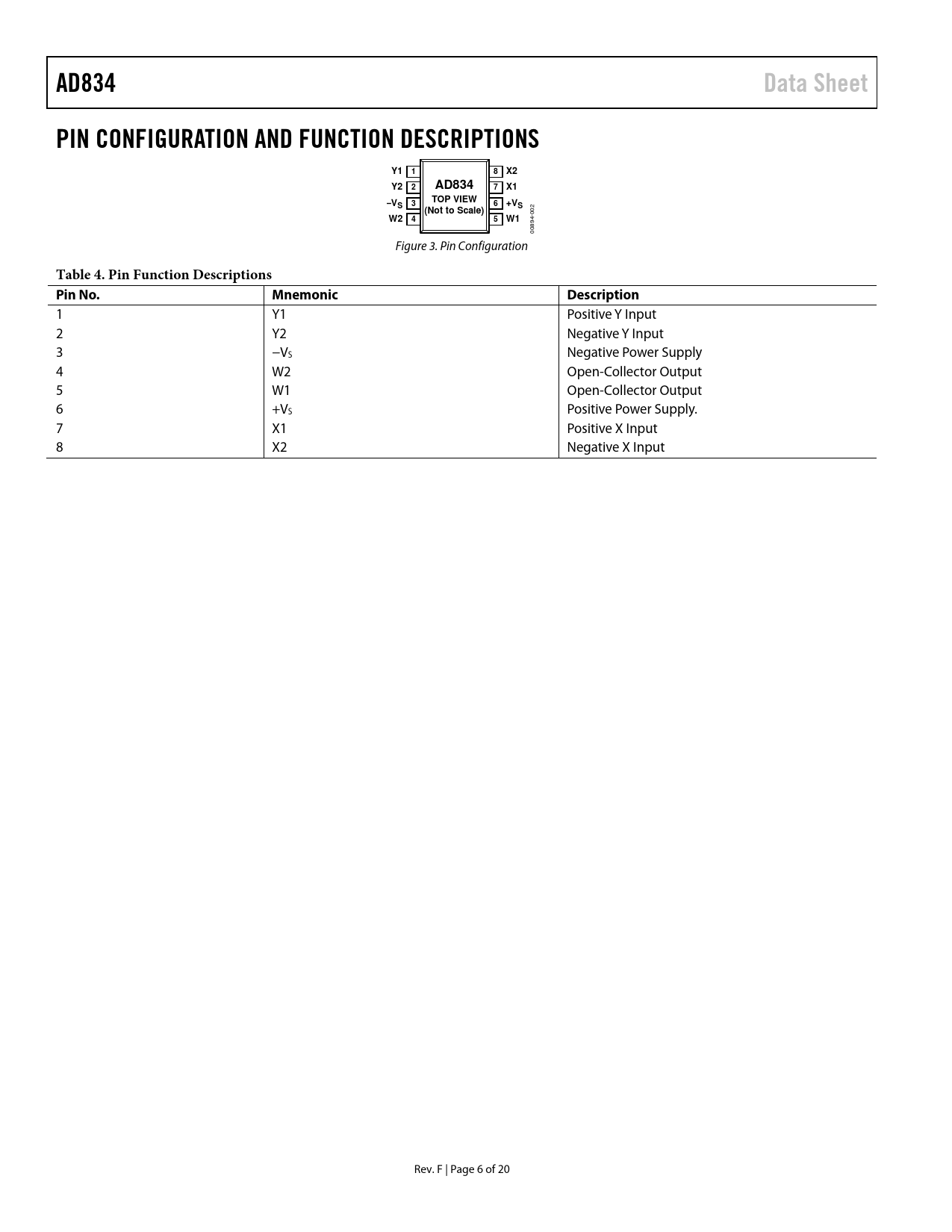

AD834. Data Sheet. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. TOP VIEW. +VS. (Not to Scale)
Línea de modelo para esta hoja de datos
Versión de texto del documento
AD834 Data Sheet PIN CONFIGURATION AND FUNCTION DESCRIPTIONS Y1 1 8 X2 Y2 2 AD834 7 X1 –V TOP VIEW S 3 6 +VS (Not to Scale)
002
W2 4 5 W1
00894- Figure 3. Pin Configuration
Table 4. Pin Function Descriptions Pin No. Mnemonic Description
1 Y1 Positive Y Input 2 Y2 Negative Y Input 3 −VS Negative Power Supply 4 W2 Open-Collector Output 5 W1 Open-Collector Output 6 +VS Positive Power Supply. 7 X1 Positive X Input 8 X2 Negative X Input Rev. F | Page 6 of 20 Document Outline Features Applications Functional Block Diagram General Description Product Highlights Revision History Specifications Absolute Maximum Ratings Thermal Characteristics Chip Dimensions and Bonding Diagram ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Test Circuits Explanation of Typical Performance Characteristics and Test Circuits Theory of Operation Transfer Function Biasing the Output Transformer Coupling Wideband Multiplier Connections Power Measurement (Mean-Square and RMS) Frequency Doubler Wideband Three-Signal Multiplier/Divider Outline Dimensions Ordering Guide
