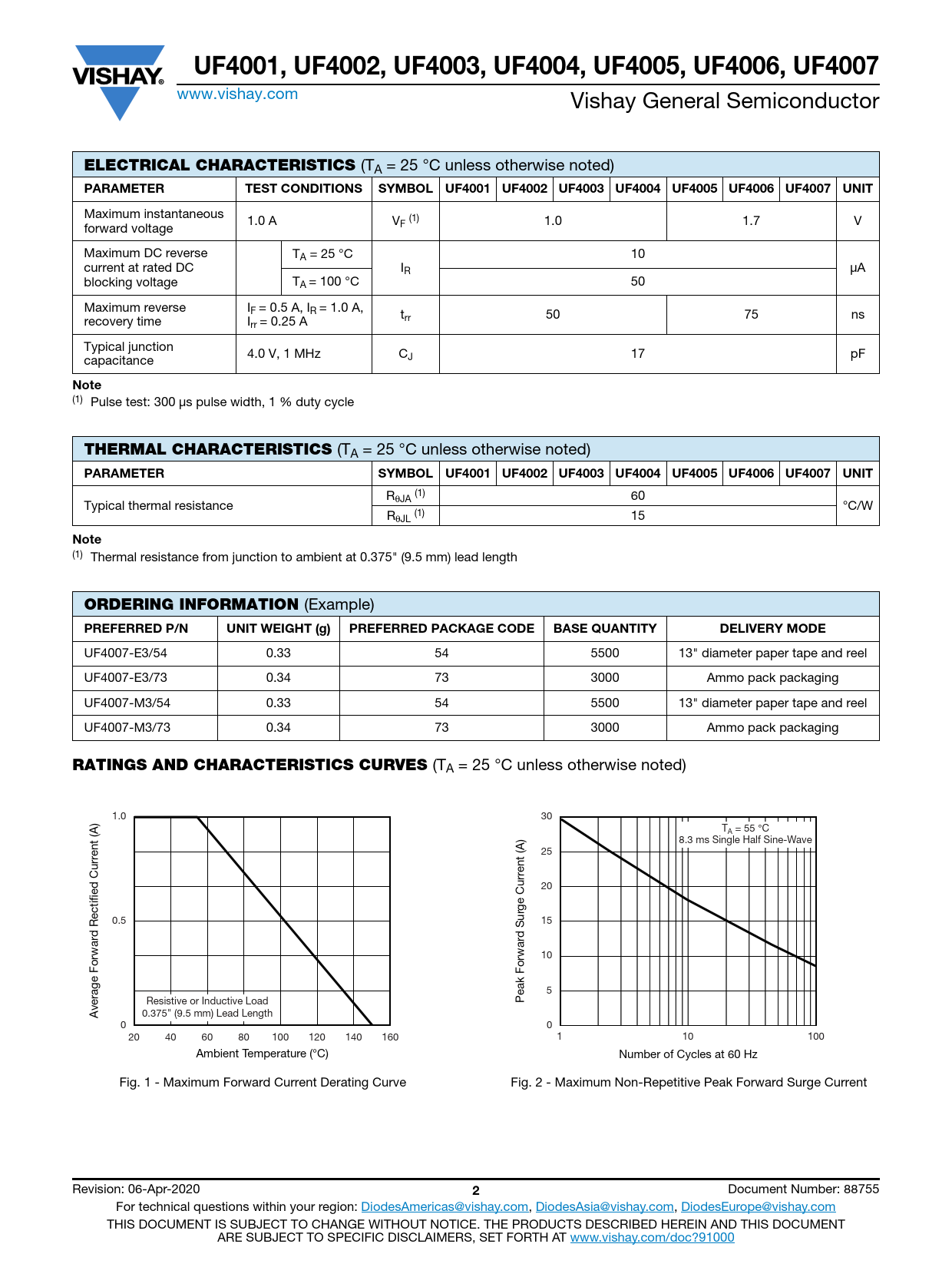

UF4001, UF4002, UF4003, UF4004, UF4005, UF4006, UF4007 www.vishay.com Vishay General Semiconductor
ELECTRICAL CHARACTERISTICS
(TA = 25 °C unless otherwise noted) PARAMETER TEST CONDITIONS SYMBOL UF4001 UF4002 UF4003 UF4004 UF4005 UF4006 UF4007 UNIT Maximum instantaneous 1.0 A V forward voltage F (1) 1.0 1.7 V Maximum DC reverse TA = 25 °C 10 current at rated DC IR μA blocking voltage TA = 100 °C 50 Maximum reverse IF = 0.5 A, IR = 1.0 A, t recovery time I rr 50 75 ns rr = 0.25 A Typical junction 4.0 V, 1 MHz C capacitance J 17 pF Note (1) Pulse test: 300 μs pulse width, 1 % duty cycle
THERMAL CHARACTERISTICS
(TA = 25 °C unless otherwise noted) PARAMETER SYMBOL UF4001 UF4002 UF4003 UF4004 UF4005 UF4006 UF4007 UNIT RθJA (1) 60 Typical thermal resistance °C/W RθJL (1) 15 Note (1) Thermal resistance from junction to ambient at 0.375" (9.5 mm) lead length
ORDERING INFORMATION
(Example) PREFERRED P/N UNIT WEIGHT (g) PREFERRED PACKAGE CODE BASE QUANTITY DELIVERY MODE UF4007-E3/54 0.33 54 5500 13" diameter paper tape and reel UF4007-E3/73 0.34 73 3000 Ammo pack packaging UF4007-M3/54 0.33 54 5500 13" diameter paper tape and reel UF4007-M3/73 0.34 73 3000 Ammo pack packaging
RATINGS AND CHARACTERISTICS CURVES
(TA = 25 °C unless otherwise noted) 1.0 30 T = 55 °C A 8.3 ms Single Half Sine-Wave ent (A) 25 ent (A) Curr 20 ge Curr 0.5 ur 15 S d Rectified d 10 5 erage Forwar Resistive or Inductive Load Peak Forwar v A 0.375" (9.5 mm) Lead Length 0 0 20 40 60 80 100 120 140 160 1 10 100 Ambient Temperature (°C) Number of Cycles at 60 Hz Fig. 1 - Maximum Forward Current Derating Curve Fig. 2 - Maximum Non-Repetitive Peak Forward Surge Current Revision: 06-Apr-2020 2 Document Number: 88755 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
