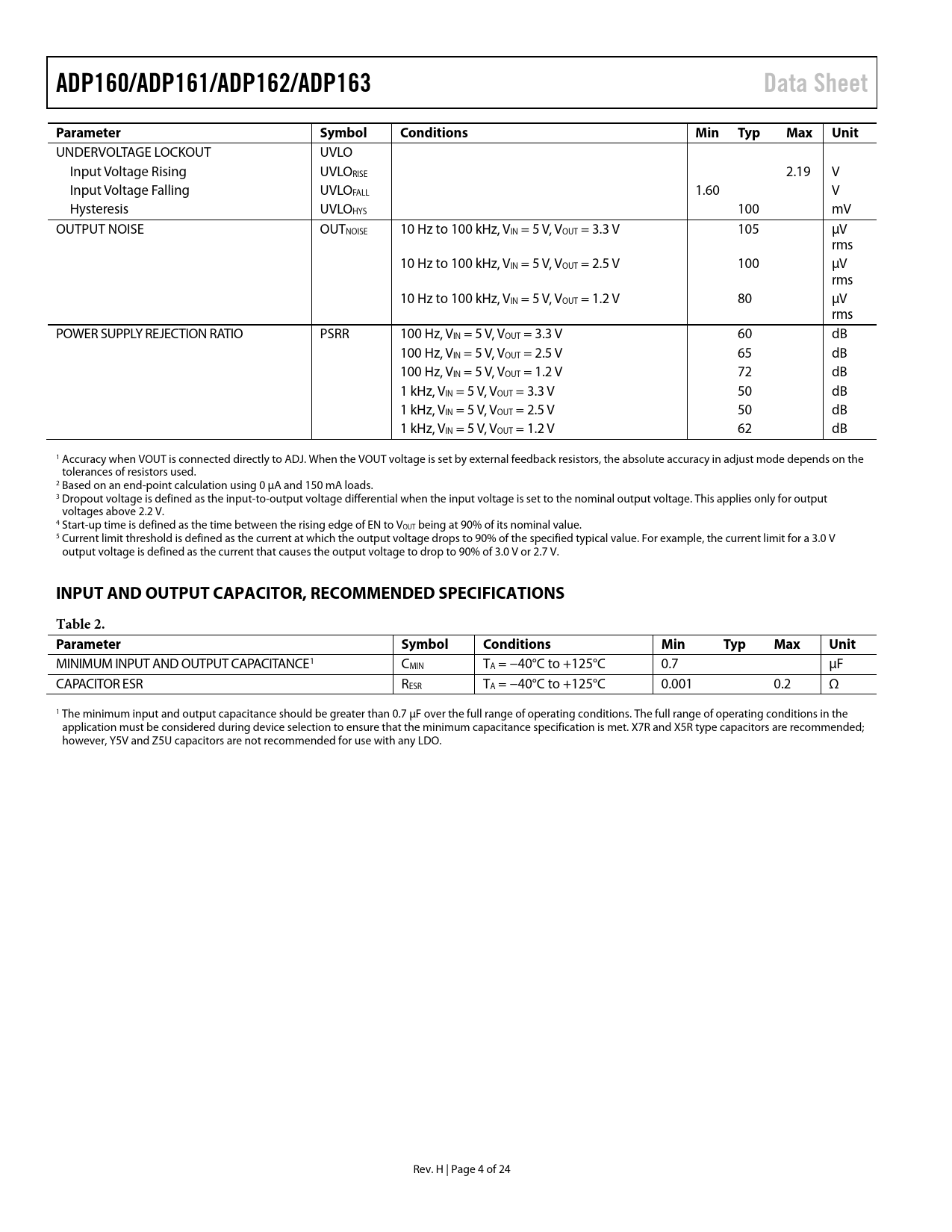

ADP160/ADP161/ADP162/ADP163 Data Sheet Parameter Symbol Conditions Min Typ Max Unit
UNDERVOLTAGE LOCKOUT UVLO Input Voltage Rising UVLORISE 2.19 V Input Voltage Falling UVLOFALL 1.60 V Hysteresis UVLOHYS 100 mV OUTPUT NOISE OUTNOISE 10 Hz to 100 kHz, VIN = 5 V, VOUT = 3.3 V 105 µV rms 10 Hz to 100 kHz, VIN = 5 V, VOUT = 2.5 V 100 µV rms 10 Hz to 100 kHz, VIN = 5 V, VOUT = 1.2 V 80 µV rms POWER SUPPLY REJECTION RATIO PSRR 100 Hz, VIN = 5 V, VOUT = 3.3 V 60 dB 100 Hz, VIN = 5 V, VOUT = 2.5 V 65 dB 100 Hz, VIN = 5 V, VOUT = 1.2 V 72 dB 1 kHz, VIN = 5 V, VOUT = 3.3 V 50 dB 1 kHz, VIN = 5 V, VOUT = 2.5 V 50 dB 1 kHz, VIN = 5 V, VOUT = 1.2 V 62 dB 1 Accuracy when VOUT is connected directly to ADJ. When the VOUT voltage is set by external feedback resistors, the absolute accuracy in adjust mode depends on the tolerances of resistors used. 2 Based on an end-point calculation using 0 μA and 150 mA loads. 3 Dropout voltage is defined as the input-to-output voltage differential when the input voltage is set to the nominal output voltage. This applies only for output voltages above 2.2 V. 4 Start-up time is defined as the time between the rising edge of EN to VOUT being at 90% of its nominal value. 5 Current limit threshold is defined as the current at which the output voltage drops to 90% of the specified typical value. For example, the current limit for a 3.0 V output voltage is defined as the current that causes the output voltage to drop to 90% of 3.0 V or 2.7 V.
INPUT AND OUTPUT CAPACITOR, RECOMMENDED SPECIFICATIONS Table 2. Parameter Symbol Conditions Min Typ Max Unit
MINIMUM INPUT AND OUTPUT CAPACITANCE1 CMIN TA = −40°C to +125°C 0.7 µF CAPACITOR ESR RESR TA = −40°C to +125°C 0.001 0.2 Ω 1 The minimum input and output capacitance should be greater than 0.7 µF over the full range of operating conditions. The full range of operating conditions in the application must be considered during device selection to ensure that the minimum capacitance specification is met. X7R and X5R type capacitors are recommended; however, Y5V and Z5U capacitors are not recommended for use with any LDO. Rev. H | Page 4 of 24 Document Outline Features Applications Typical Application Circuits General Description Table of Contents Revision History Specifications Input and Output Capacitor, Recommended Specifications Absolute Maximum Ratings Thermal Data Thermal Resistance ESD Caution Pin Configurations and Function Descriptions Typical Performance Characteristics Theory of Operation Applications Information Capacitor Selection Output Capacitor Input Bypass Capacitor Input and Output Capacitor Properties Enable Feature Current Limit and Thermal Overload Protection Thermal Considerations PCB Layout Considerations Light Sensitivity of WLCSPs Outline Dimensions Ordering Guide
