ADP165/ADP166. Data Sheet. PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS. VIN 1. VOUT. ADP165/. ADP166. GND 2. TOP VIEW. (Not to Scale)
Línea de modelo para esta hoja de datos
- ADP165ACBZ-1.2-R7 ADP165ACBZ-1.8-R7 ADP165ACBZ-2.2-R7 ADP165ACBZ-2.3-R7 ADP165ACBZ-2.85-R7 ADP165ACBZ-3.0-R7 ADP165ACBZ-3.3-R7 ADP165ACPZN-1.2-R7 ADP165ACPZN-1.8-R7 ADP165ACPZN-2.3-R7 ADP165ACPZN-3.0-R7 ADP165ACPZN-3.3-R7 ADP165ACPZN-R7 ADP165AUJZ-1.2-R7 ADP165AUJZ-1.8-R7 ADP165AUJZ-2.3-R7 ADP165AUJZ-3.0-R7 ADP165AUJZ-3.3-R7 ADP165AUJZ-R7
- ADP166ACBZ-1.2-R7 ADP166ACBZ-1.8-R7 ADP166ACBZ-2.2-R7 ADP166ACBZ-2.3-R7 ADP166ACBZ-2.85-R7 ADP166ACBZ-3.0-R7 ADP166ACBZ-3.3-R7 ADP166ACPZN-1.2-R7 ADP166ACPZN-1.8-R7 ADP166ACPZN-2.3-R7 ADP166ACPZN-3.0-R7 ADP166ACPZN-3.3-R7 ADP166ACPZN-R7 ADP166AUJZ-1.2-R7 ADP166AUJZ-1.8-R7 ADP166AUJZ-2.3-R7 ADP166AUJZ-3.0-R7 ADP166AUJZ-3.3-R7 ADP166AUJZ-R7
Versión de texto del documento

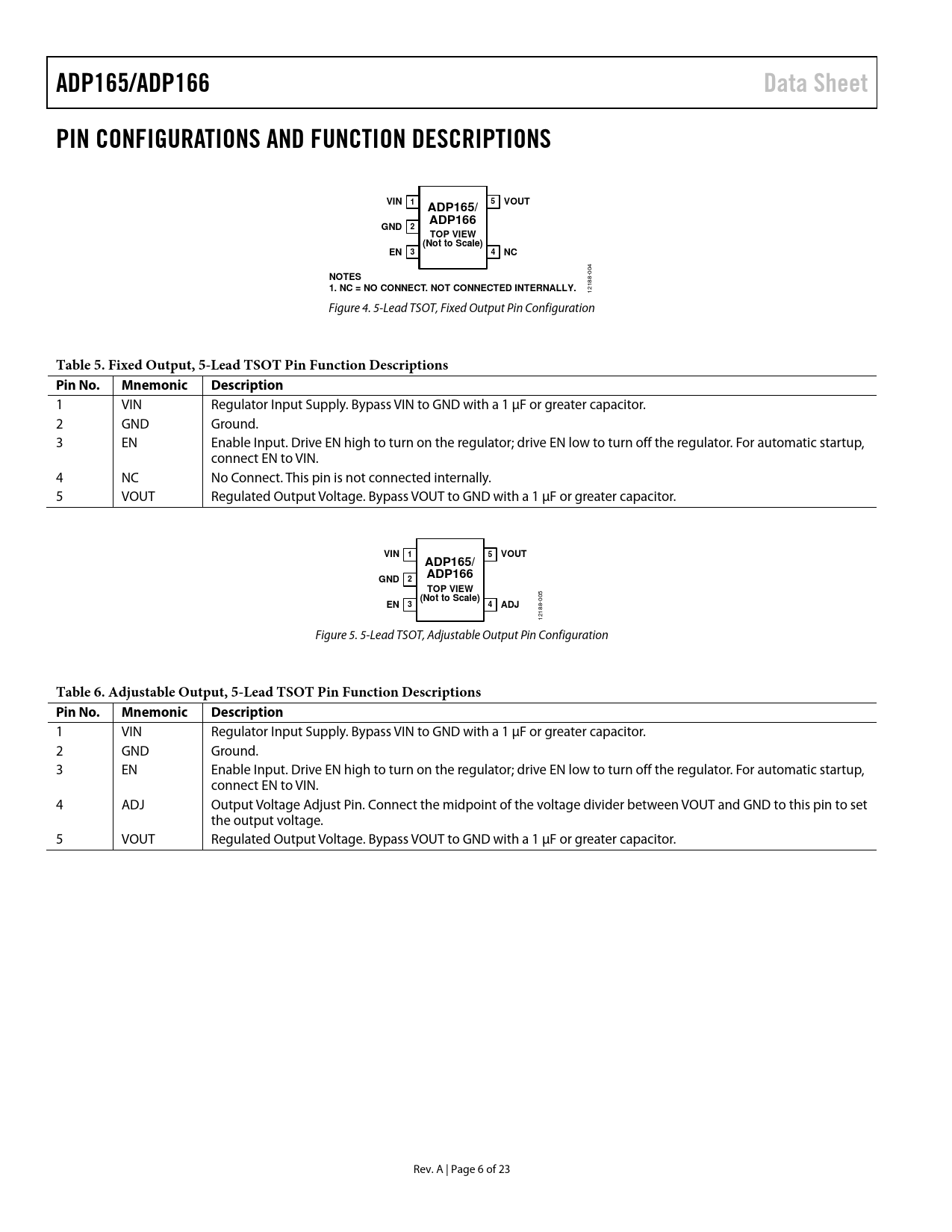

ADP165/ADP166 Data Sheet PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS VIN 1 5 VOUT ADP165/ ADP166 GND 2 TOP VIEW (Not to Scale) EN 3 4 NC
