Datasheet LT1016 (Analog Devices)
| Fabricante | Analog Devices |
| Descripción | UltraFast Precision 10ns Comparator |
| Páginas / Página | 22 / 1 — FEATURES. DESCRIPTION. APPLICATIONS. TYPICAL APPLICATION. 10MHz to 25MHz … |
| Revisión | D |
| Formato / tamaño de archivo | PDF / 1.0 Mb |
| Idioma del documento | Inglés |
FEATURES. DESCRIPTION. APPLICATIONS. TYPICAL APPLICATION. 10MHz to 25MHz Crystal Oscillator. Response Time
Línea de modelo para esta hoja de datos
Versión de texto del documento

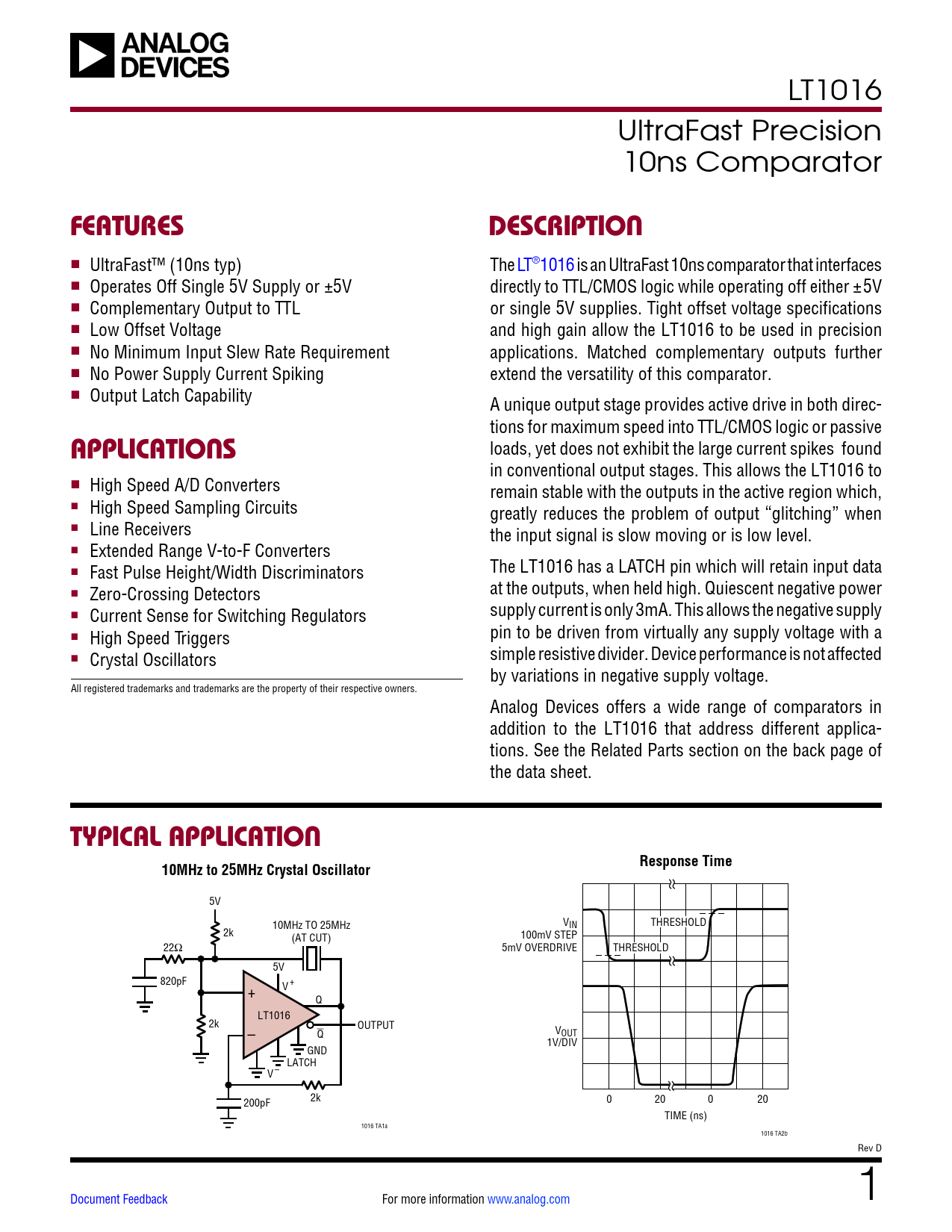

link to page 22 LT1016 UltraFast Precision 10ns Comparator
FEATURES DESCRIPTION
n UltraFast™ (10ns typ) The LT®1016 is an UltraFast 10ns comparator that interfaces n Operates Off Single 5V Supply or ±5V directly to TTL/CMOS logic while operating off either ±5V n Complementary Output to TTL or single 5V supplies. Tight offset voltage specifications n Low Offset Voltage and high gain allow the LT1016 to be used in precision n No Minimum Input Slew Rate Requirement applications. Matched complementary outputs further n No Power Supply Current Spiking extend the versatility of this comparator. n Output Latch Capability A unique output stage provides active drive in both direc- tions for maximum speed into TTL/CMOS logic or passive
APPLICATIONS
loads, yet does not exhibit the large current spikes found in conventional output stages. This allows the LT1016 to n High Speed A/D Converters remain stable with the outputs in the active region which, ■ High Speed Sampling Circuits greatly reduces the problem of output “glitching” when ■ Line Receivers the input signal is slow moving or is low level. ■ Extended Range V-to-F Converters ■ The LT1016 has a LATCH pin which will retain input data Fast Pulse Height/Width Discriminators ■ at the outputs, when held high. Quiescent negative power Zero-Crossing Detectors ■ supply current is only 3mA. This allows the negative supply Current Sense for Switching Regulators ■ pin to be driven from virtually any supply voltage with a High Speed Triggers ■ simple resistive divider. Device performance is not affected Crystal Oscillators by variations in negative supply voltage. All registered trademarks and trademarks are the property of their respective owners. Analog Devices offers a wide range of comparators in addition to the LT1016 that address different applica- tions. See the Related Parts section on the back page of the data sheet.
TYPICAL APPLICATION 10MHz to 25MHz Crystal Oscillator Response Time
5V 10MHz TO 25MHz V THRESHOLD IN 2k (AT CUT) 100mV STEP 22Ω 5mV OVERDRIVE THRESHOLD 5V 820pF + V+ Q LT1016 2k OUTPUT – Q VOUT 1V/DIV GND LATCH V– 200pF 2k 0 20 0 20 TIME (ns) 1016 TA1a 1016 TA2b Rev D Document Feedback For more information www.analog.com 1 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Applications Information Typical Applications Appendix A Package Description Revision History Applications Information Related Parts
