Datasheet RH1011 (Analog Devices) - 4
| Fabricante | Analog Devices |
| Descripción | Voltage Comparator |
| Páginas / Página | 4 / 4 — TYPICAL PERFORMANCE CHARACTERISTICS. Input Offset Voltage. Input Bias … |
| Revisión | E |
| Formato / tamaño de archivo | PDF / 128 Kb |
| Idioma del documento | Inglés |

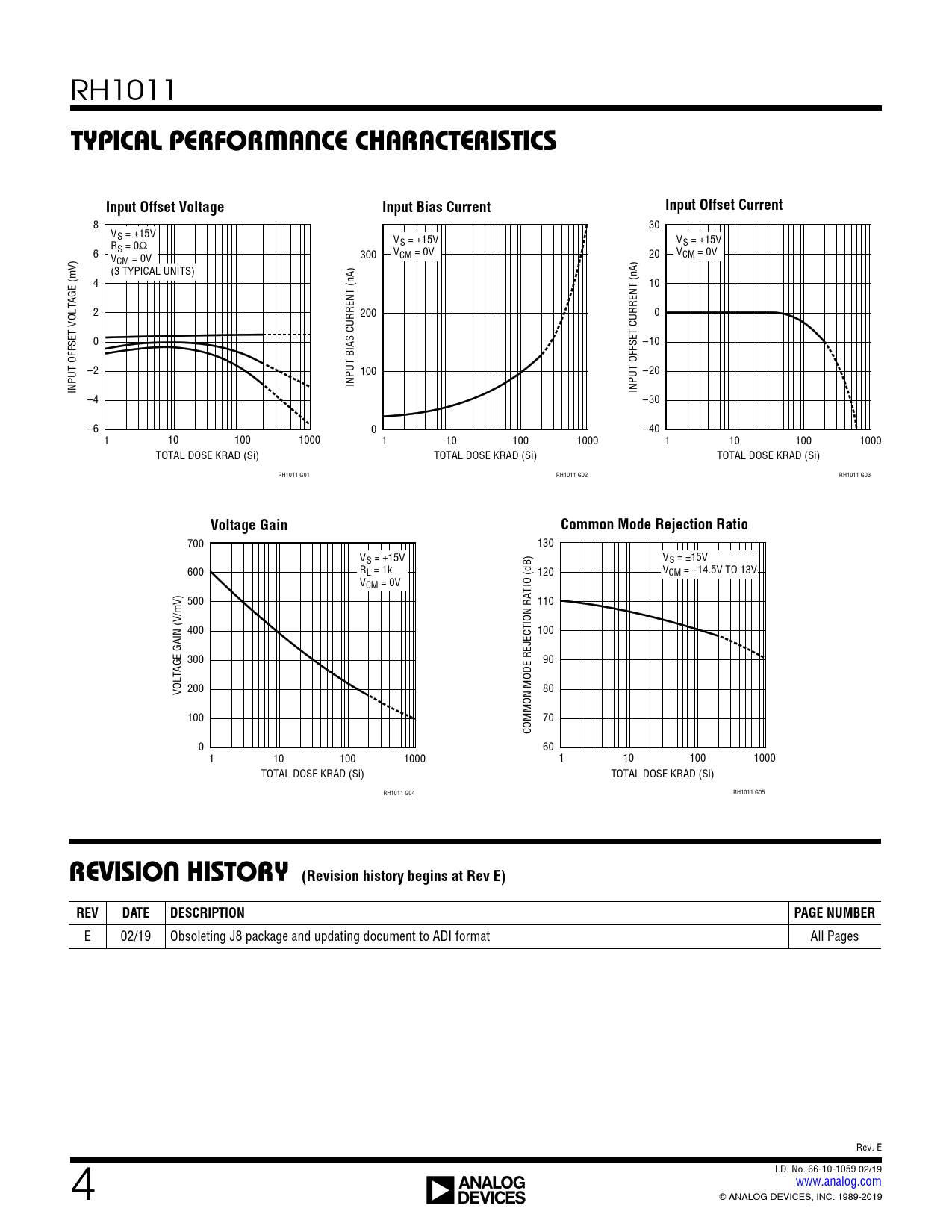

TYPICAL PERFORMANCE CHARACTERISTICS. Input Offset Voltage. Input Bias Current. Input Offset Current. Voltage Gain
Línea de modelo para esta hoja de datos
Versión de texto del documento
RH1011
TYPICAL PERFORMANCE CHARACTERISTICS Input Offset Voltage Input Bias Current Input Offset Current
8 30 VS = ±15V R VS = ±15V VS = ±15V 6 S = 0Ω V 300 VCM = 0V 20 VCM = 0V CM = 0V (3 TYPICAL UNITS) 4 10 2 200 0 0 –10 –2 100 –20 INPUT OFFSET VOLTAGE (mV) INPUT BIAS CURRENT (nA) INPUT OFFSET CURRENT (nA) –4 –30 –6 0 –40 1 10 100 1000 1 10 100 1000 1 10 100 1000 TOTAL DOSE KRAD (Si) TOTAL DOSE KRAD (Si) TOTAL DOSE KRAD (Si) RH1011 G01 RH1011 G02 RH1011 G03
Voltage Gain Common Mode Rejection Ratio
700 130 VS = ±15V VS = ±15V 600 RL = 1k 120 VCM = –14.5V TO 13V VCM = 0V 500 110 400 100 300 90 VOLTAGE GAIN (V/mV) 200 80 100 70 COMMON MODE REJECTION RATIO (dB) 0 60 1 10 100 1000 1 10 100 1000 TOTAL DOSE KRAD (Si) TOTAL DOSE KRAD (Si) RH1011 G04 RH1011 G05
REVISION HISTORY (Revision history begins at Rev E) REV DATE DESCRIPTION PAGE NUMBER
E 02/19 Obsoleting J8 package and updating document to ADI format All Pages Rev. E Rev. E 4 I.D. No. 66-10-1059 02/19 www.analog.com ANALOG DEVICES, INC. 1989-2019 Document Outline Description Burn-In Circuit Package Information Absolute Maximum Ratings Table 1: Electrical characteristics Table 1a: Electrical characteristics Table 2: Electrical Test Requirements Total Dose Bias Circuit Typical Performance Characteristics Revision History
