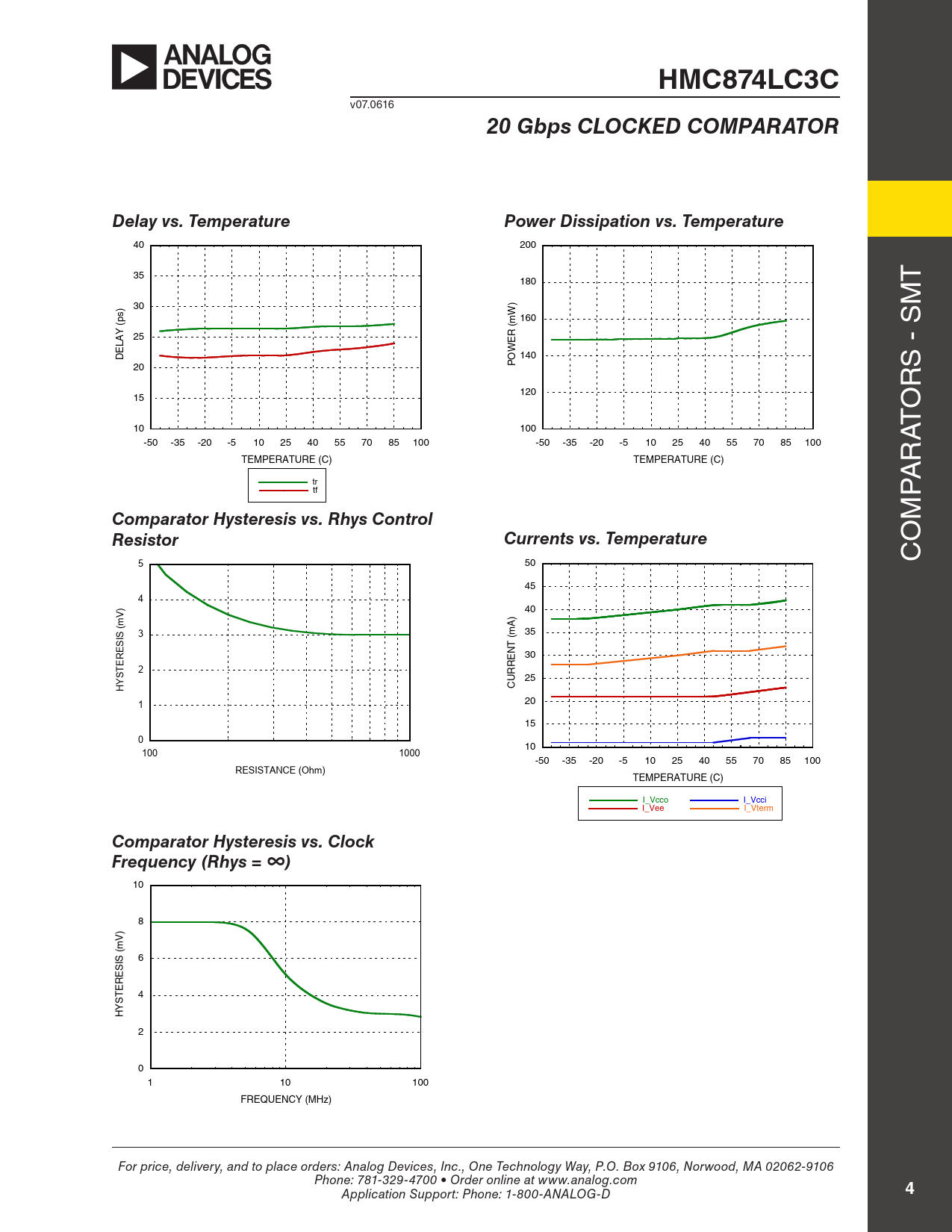

HMC874LC3C. 20 Gbps CLOCKED COMPARATOR. Delay vs. Temperature. Power Dissipation vs. Temperature
Línea de modelo para esta hoja de datos
Versión de texto del documento
HMC874LC3C
v07.0616
20 Gbps CLOCKED COMPARATOR Delay vs. Temperature Power Dissipation vs. Temperature
40 200 35 180 T 30 M 160 25 DELAY (ps) 140 20 POWER (mW) S - S R 120 15 O 10 100 -50 -35 -20 -5 10 25 40 55 70 85 100 -50 -35 -20 -5 10 25 40 55 70 85 100 AT TEMPERATURE (C) TEMPERATURE (C) R tr A tf P
Comparator Hysteresis vs. Rhys Control Resistor Currents vs. Temperature
OM 5 50 C 45 4 40 3 35 30 2 25 HYSTERESIS (mV) CURRENT (mA) 1 20 15 0 10 100 1000 -50 -35 -20 -5 10 25 40 55 70 85 100 RESISTANCE (Ohm) TEMPERATURE (C) I_Vcco I_Vcci I_Vee I_Vterm
Comparator Hysteresis vs. Clock Frequency (Rhys = ∞)
10 8 6 4 HYSTERESIS (mV) 2 0 1 10 100 FREQUENCY (MHz) For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com Application Support: Phone: 1-800-ANALOG-D
