Datasheet AD8469 (Analog Devices) - 4
| Fabricante | Analog Devices |
| Descripción | Fast, Rail-to-Rail, Low Power, 2.5 V to 5.5 V, Single-Supply TTL/CMOS Comparator |
| Páginas / Página | 12 / 4 — AD8469. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 2. THERMAL RESISTANCE. … |
| Formato / tamaño de archivo | PDF / 264 Kb |
| Idioma del documento | Inglés |

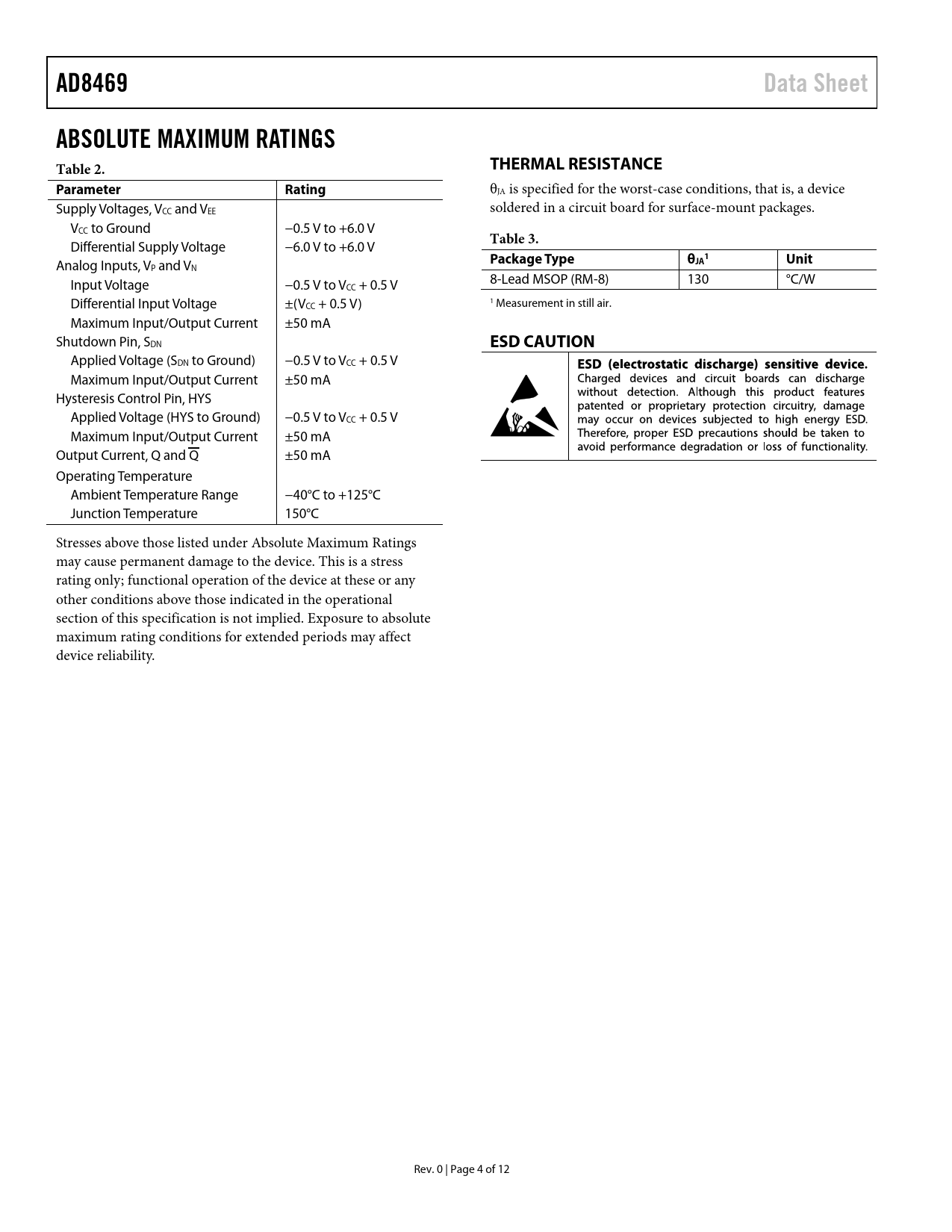

AD8469. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 2. THERMAL RESISTANCE. Parameter. Rating. Table 3. Package Type. θJA. Unit. ESD CAUTION
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 4
AD8469 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 2. THERMAL RESISTANCE Parameter Rating
θJA is specified for the worst-case conditions, that is, a device Supply Voltages, VCC and VEE soldered in a circuit board for surface-mount packages. VCC to Ground −0.5 V to +6.0 V Differential Supply Voltage −6.0 V to +6.0 V
Table 3. 1
Analog Inputs, V
Package Type θJA Unit
P and VN Input Voltage −0.5 V to V 8-Lead MSOP (RM-8) 130 °C/W CC + 0.5 V Differential Input Voltage ±(V 1 CC + 0.5 V) Measurement in still air. Maximum Input/Output Current ±50 mA Shutdown Pin, SDN
ESD CAUTION
Applied Voltage (SDN to Ground) −0.5 V to VCC + 0.5 V Maximum Input/Output Current ±50 mA Hysteresis Control Pin, HYS Applied Voltage (HYS to Ground) −0.5 V to VCC + 0.5 V Maximum Input/Output Current ±50 mA Output Current, Q and Q ±50 mA Operating Temperature Ambient Temperature Range −40°C to +125°C Junction Temperature 150°C Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Rev. 0 | Page 4 of 12 Document Outline Features Applications General Description Functional Block Diagram Table of Contents Revision History Specifications Electrical Characteristics Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Applications Information Power/Ground Layout and Bypassing TTL-/CMOS-Compatible Output Stage Optimizing Performance Comparator Propagation Delay Dispersion Comparator Hysteresis Crossover Bias Point Minimum Input Slew Rate Requirement Typical Applications Circuits Outline Dimensions Ordering Guide Automotive Products
