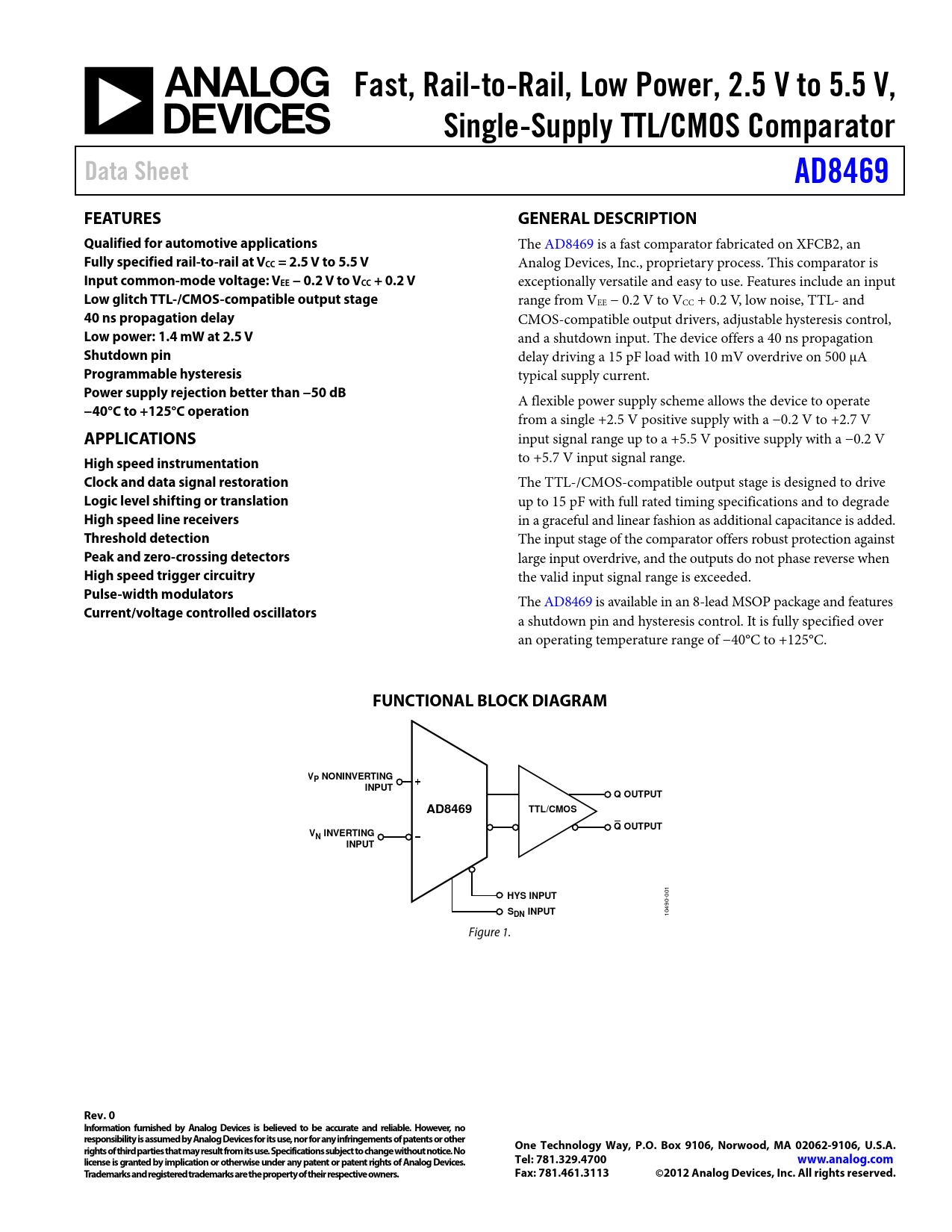

Fast, Rail-to-Rail, Low Power, 2.5 V to 5.5 V, Single-Supply TTL/CMOS Comparator Data Sheet AD8469 FEATURES GENERAL DESCRIPTION Qualified for automotive applications
The AD8469 is a fast comparator fabricated on XFCB2, an
Fully specified rail-to-rail at VCC = 2.5 V to 5.5 V
Analog Devices, Inc., proprietary process. This comparator is
Input common-mode voltage: VEE − 0.2 V to VCC + 0.2 V
exceptionally versatile and easy to use. Features include an input
Low glitch TTL-/CMOS-compatible output stage
range from VEE − 0.2 V to VCC + 0.2 V, low noise, TTL- and
40 ns propagation delay
CMOS-compatible output drivers, adjustable hysteresis control,
Low power: 1.4 mW at 2.5 V
and a shutdown input. The device offers a 40 ns propagation
Shutdown pin
delay driving a 15 pF load with 10 mV overdrive on 500 µA
Programmable hysteresis
typical supply current.
Power supply rejection better than −50 dB
A flexible power supply scheme allows the device to operate
−40°C to +125°C operation
from a single +2.5 V positive supply with a −0.2 V to +2.7 V
APPLICATIONS
input signal range up to a +5.5 V positive supply with a −0.2 V
High speed instrumentation
to +5.7 V input signal range.
Clock and data signal restoration
The TTL-/CMOS-compatible output stage is designed to drive
Logic level shifting or translation
up to 15 pF with full rated timing specifications and to degrade
High speed line receivers
in a graceful and linear fashion as additional capacitance is added.
Threshold detection
The input stage of the comparator offers robust protection against
Peak and zero-crossing detectors
large input overdrive, and the outputs do not phase reverse when
High speed trigger circuitry
the valid input signal range is exceeded.
Pulse-width modulators
The AD8469 is available in an 8-lead MSOP package and features
Current/voltage controlled oscillators
a shutdown pin and hysteresis control. It is fully specified over an operating temperature range of −40°C to +125°C.
FUNCTIONAL BLOCK DIAGRAM VP NONINVERTING INPUT Q OUTPUT AD8469 TTL/CMOS Q OUTPUT VN INVERTING INPUT HYS INPUT
001
SDN INPUT
10490- Figure 1.
