LT1716

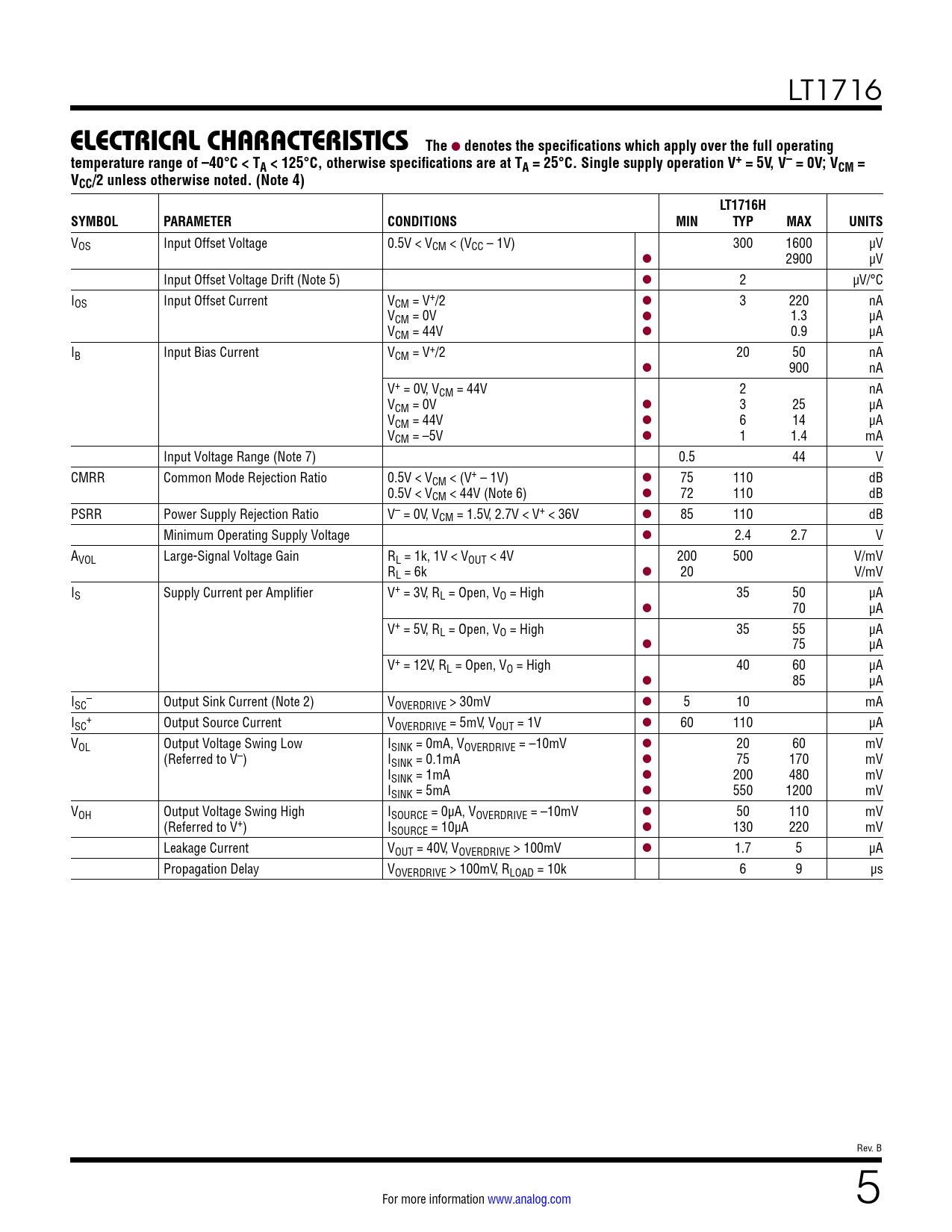

ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range of –40°C < TA < 125°C, otherwise specifications are at TA = 25°C. Single supply operation V+ = 5V, V– = 0V; VCM = VCC/2 unless otherwise noted. (Note 4) LT1716H SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage 0.5V < VCM < (VCC – 1V) 300 1600 µV l 2900 µV Input Offset Voltage Drift (Note 5) l 2 µV/°C IOS Input Offset Current VCM = V+/2 l 3 220 nA VCM = 0V l 1.3 µA VCM = 44V l 0.9 µA IB Input Bias Current VCM = V+/2 20 50 nA l 900 nA V+ = 0V, VCM = 44V 2 nA VCM = 0V l 3 25 µA VCM = 44V l 6 14 µA VCM = –5V l 1 1.4 mA Input Voltage Range (Note 7) 0.5 44 V CMRR Common Mode Rejection Ratio 0.5V < VCM < (V+ – 1V) l 75 110 dB 0.5V < VCM < 44V (Note 6) l 72 110 dB PSRR Power Supply Rejection Ratio V– = 0V, VCM = 1.5V, 2.7V < V+ < 36V l 85 110 dB Minimum Operating Supply Voltage l 2.4 2.7 V AVOL Large-Signal Voltage Gain RL = 1k, 1V < VOUT < 4V 200 500 V/mV RL = 6k l 20 V/mV IS Supply Current per Amplifier V+ = 3V, RL = Open, VO = High 35 50 µA l 70 µA V+ = 5V, RL = Open, VO = High 35 55 µA l 75 µA V+ = 12V, RL = Open, VO = High 40 60 µA l 85 µA I – SC Output Sink Current (Note 2) VOVERDRIVE > 30mV l 5 10 mA I + SC Output Source Current VOVERDRIVE = 5mV, VOUT = 1V l 60 110 µA VOL Output Voltage Swing Low ISINK = 0mA, VOVERDRIVE = –10mV l 20 60 mV (Referred to V–) ISINK = 0.1mA l 75 170 mV ISINK = 1mA l 200 480 mV ISINK = 5mA l 550 1200 mV VOH Output Voltage Swing High ISOURCE = 0µA, VOVERDRIVE = –10mV l 50 110 mV (Referred to V+) ISOURCE = 10µA l 130 220 mV Leakage Current VOUT = 40V, VOVERDRIVE > 100mV l 1.7 5 µA Propagation Delay VOVERDRIVE > 100mV, RLOAD = 10k 6 9 µs Rev. B For more information www.analog.com 5 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics Typical Performance Characteristics Applications Information Simplified Schematic Package Description Revision History Typical ApplicationS Related Parts
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range of –40°C < TA < 125°C, otherwise specifications are at TA = 25°C. Single supply operation V+ = 5V, V– = 0V; VCM = VCC/2 unless otherwise noted. (Note 4) LT1716H SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage 0.5V < VCM < (VCC – 1V) 300 1600 µV l 2900 µV Input Offset Voltage Drift (Note 5) l 2 µV/°C IOS Input Offset Current VCM = V+/2 l 3 220 nA VCM = 0V l 1.3 µA VCM = 44V l 0.9 µA IB Input Bias Current VCM = V+/2 20 50 nA l 900 nA V+ = 0V, VCM = 44V 2 nA VCM = 0V l 3 25 µA VCM = 44V l 6 14 µA VCM = –5V l 1 1.4 mA Input Voltage Range (Note 7) 0.5 44 V CMRR Common Mode Rejection Ratio 0.5V < VCM < (V+ – 1V) l 75 110 dB 0.5V < VCM < 44V (Note 6) l 72 110 dB PSRR Power Supply Rejection Ratio V– = 0V, VCM = 1.5V, 2.7V < V+ < 36V l 85 110 dB Minimum Operating Supply Voltage l 2.4 2.7 V AVOL Large-Signal Voltage Gain RL = 1k, 1V < VOUT < 4V 200 500 V/mV RL = 6k l 20 V/mV IS Supply Current per Amplifier V+ = 3V, RL = Open, VO = High 35 50 µA l 70 µA V+ = 5V, RL = Open, VO = High 35 55 µA l 75 µA V+ = 12V, RL = Open, VO = High 40 60 µA l 85 µA I – SC Output Sink Current (Note 2) VOVERDRIVE > 30mV l 5 10 mA I + SC Output Source Current VOVERDRIVE = 5mV, VOUT = 1V l 60 110 µA VOL Output Voltage Swing Low ISINK = 0mA, VOVERDRIVE = –10mV l 20 60 mV (Referred to V–) ISINK = 0.1mA l 75 170 mV ISINK = 1mA l 200 480 mV ISINK = 5mA l 550 1200 mV VOH Output Voltage Swing High ISOURCE = 0µA, VOVERDRIVE = –10mV l 50 110 mV (Referred to V+) ISOURCE = 10µA l 130 220 mV Leakage Current VOUT = 40V, VOVERDRIVE > 100mV l 1.7 5 µA Propagation Delay VOVERDRIVE > 100mV, RLOAD = 10k 6 9 µs Rev. B For more information www.analog.com 5 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics Typical Performance Characteristics Applications Information Simplified Schematic Package Description Revision History Typical ApplicationS Related Parts
