Datasheet ADCMP608 (Analog Devices) - 10
| Fabricante | Analog Devices |
| Descripción | Rail-to-Rail, Fast, Low Power 2.5 V to 5.5 V, Single-Supply TTL/CMOS Comparator |
| Páginas / Página | 10 / 10 — ADCMP608. Data Sheet. OUTLINE DIMENSIONS. 2.20 2.00 1.80. 1.35. 2.40. … |
| Revisión | B |
| Formato / tamaño de archivo | PDF / 237 Kb |
| Idioma del documento | Inglés |

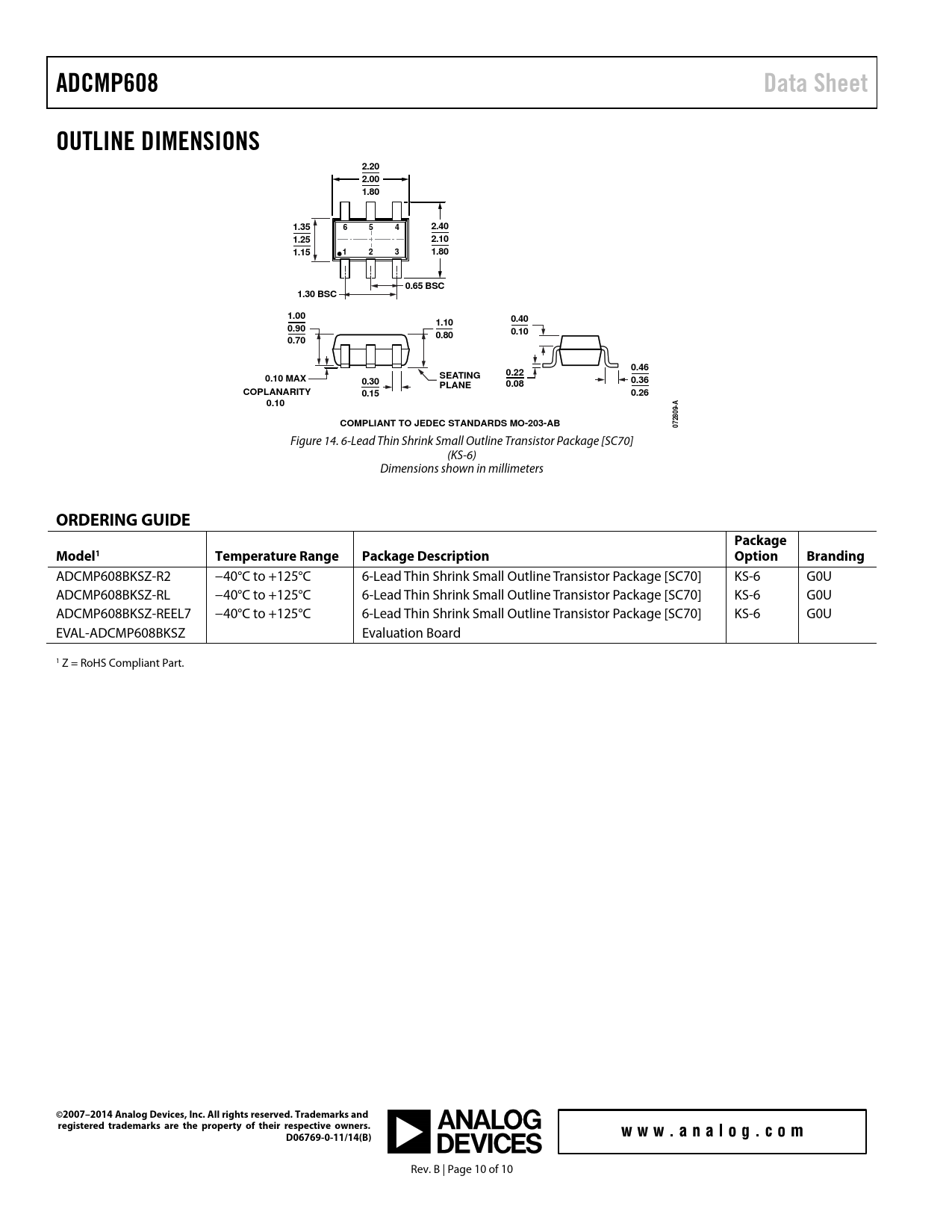

ADCMP608. Data Sheet. OUTLINE DIMENSIONS. 2.20 2.00 1.80. 1.35. 2.40. 1.25. 2.10. 1.15. 1.80. 0.65 BSC. 1.30 BSC. 1.00. 1.10. 0.40. 0.90. 0.80. 0.10. 0.70
Línea de modelo para esta hoja de datos
Versión de texto del documento
ADCMP608 Data Sheet OUTLINE DIMENSIONS 2.20 2.00 1.80 1.35 6 5 4 2.40 1.25 2.10 1.15 1 2 3 1.80 0.65 BSC 1.30 BSC 1.00 1.10 0.40 0.90 0.80 0.10 0.70 0.46 0.22 0.10 MAX SEATING 0.30 0.36 PLANE 0.08 COPLANARITY 0.15 0.26 0.10 -A 09 COMPLIANT TO JEDEC STANDARDS MO-203-AB 728 0
Figure 14. 6-Lead Thin Shrink Small Outline Transistor Package [SC70] (KS-6) Dimensions shown in millimeters
ORDERING GUIDE Package Model1 Temperature Range Package Description Option Branding
ADCMP608BKSZ-R2 −40°C to +125°C 6-Lead Thin Shrink Small Outline Transistor Package [SC70] KS-6 G0U ADCMP608BKSZ-RL −40°C to +125°C 6-Lead Thin Shrink Small Outline Transistor Package [SC70] KS-6 G0U ADCMP608BKSZ-REEL7 −40°C to +125°C 6-Lead Thin Shrink Small Outline Transistor Package [SC70] KS-6 G0U EVAL-ADCMP608BKSZ Evaluation Board 1 Z = RoHS Compliant Part.
