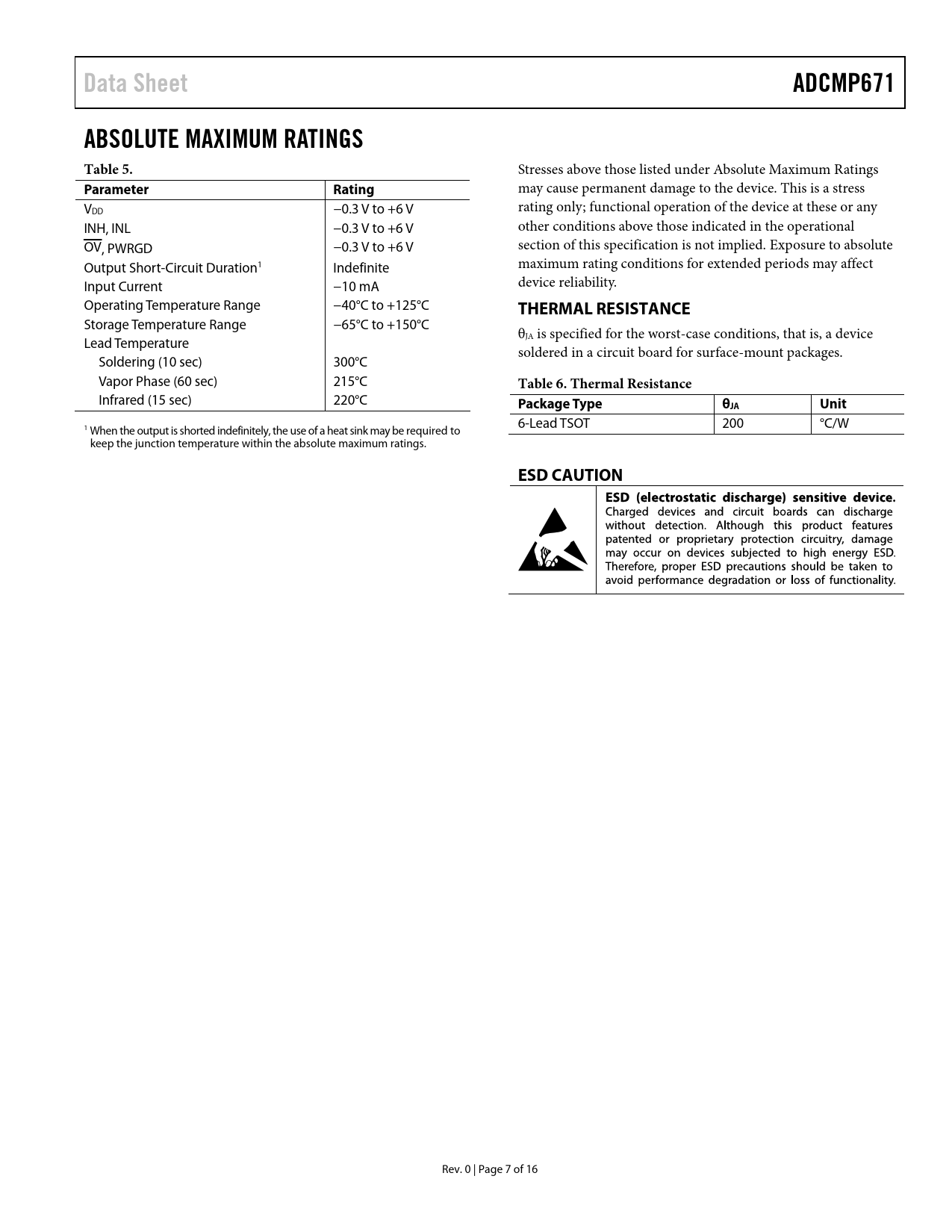

Data Sheet ADCMP671 ABSOLUTE MAXIMUM RATINGS Table 5.
Stresses above those listed under Absolute Maximum Ratings
Parameter Rating
may cause permanent damage to the device. This is a stress VDD −0.3 V to +6 V rating only; functional operation of the device at these or any INH, INL −0.3 V to +6 V other conditions above those indicated in the operational OV, PWRGD −0.3 V to +6 V section of this specification is not implied. Exposure to absolute Output Short-Circuit Duration1 Indefinite maximum rating conditions for extended periods may affect Input Current −10 mA device reliability. Operating Temperature Range −40°C to +125°C
THERMAL RESISTANCE
Storage Temperature Range −65°C to +150°C θJA is specified for the worst-case conditions, that is, a device Lead Temperature soldered in a circuit board for surface-mount packages. Soldering (10 sec) 300°C Vapor Phase (60 sec) 215°C
Table 6. Thermal Resistance
Infrared (15 sec) 220°C
Package Type θJA Unit
6-Lead TSOT 200 °C/W 1 When the output is shorted indefinitely, the use of a heat sink may be required to keep the junction temperature within the absolute maximum ratings.
ESD CAUTION
Rev. 0 | Page 7 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS APPLICATIONS INFORMATION COMPARATORS AND INTERNAL REFERENCE POWER SUPPLY INPUTS HYSTERESIS VOLTAGE MONITORING SCHEME OUTPUTS OUTLINE DIMENSIONS ORDERING GUIDE
