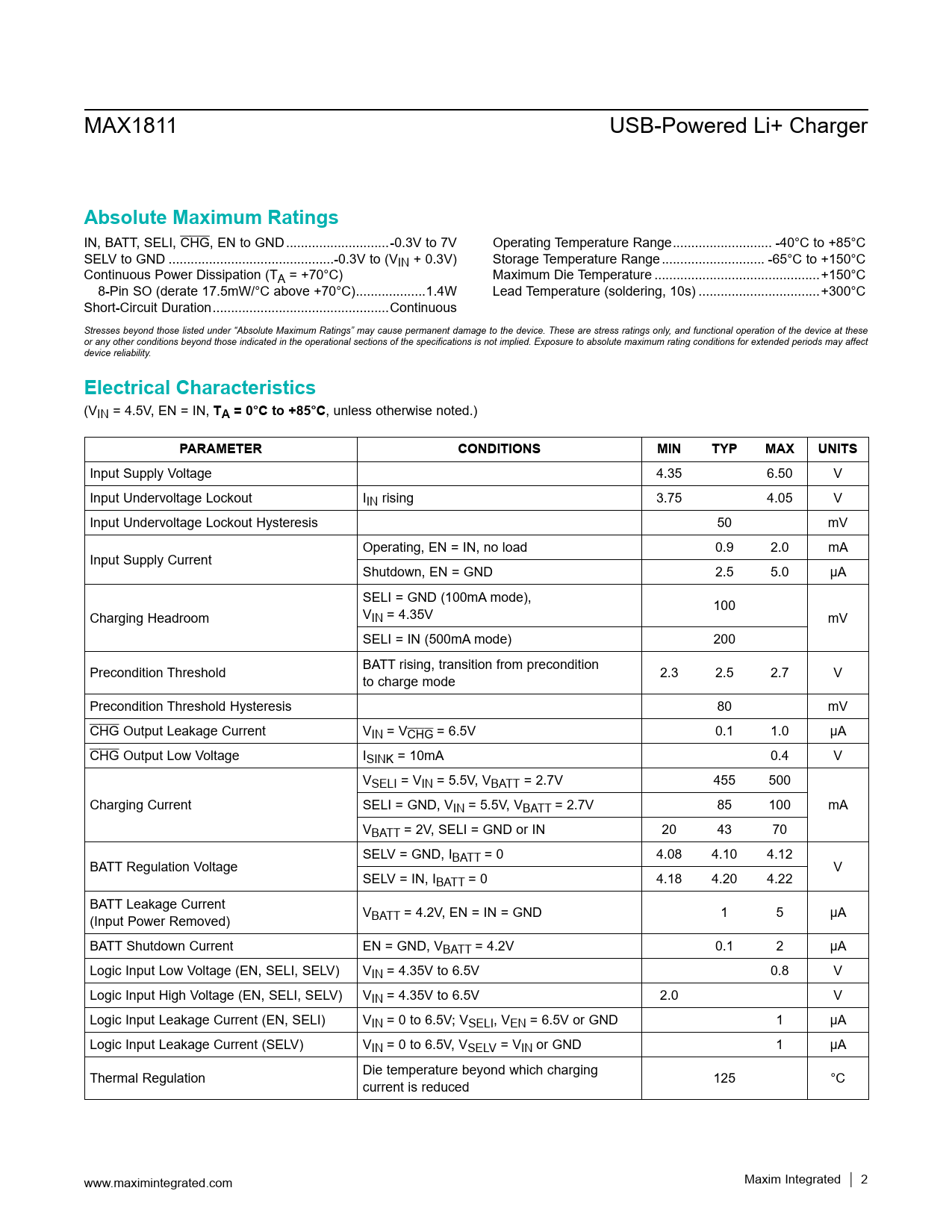

MAX1811 USB-Powered Li+ Charger
Absolute Maximum Ratings
IN, BATT, SELI, CHG, EN to GND ..-0.3V to 7V Operating Temperature Range ... -40°C to +85°C SELV to GND ...-0.3V to (VIN + 0.3V) Storage Temperature Range .. -65°C to +150°C Continuous Power Dissipation (TA = +70°C) Maximum Die Temperature ...+150°C 8-Pin SO (derate 17.5mW/°C above +70°C) ...1.4W Lead Temperature (soldering, 10s) ...+300°C Short-Circuit Duration ..Continuous Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
Electrical Characteristics
(VIN = 4.5V, EN = IN,
TA = 0°C to +85°C
, unless otherwise noted.)
PARAMETER CONDITIONS MIN TYP MAX UNITS
Input Supply Voltage 4.35 6.50 V Input Undervoltage Lockout IIN rising 3.75 4.05 V Input Undervoltage Lockout Hysteresis 50 mV Operating, EN = IN, no load 0.9 2.0 mA Input Supply Current Shutdown, EN = GND 2.5 5.0 µA SELI = GND (100mA mode), Charging Headroom VIN = 4.35V 100 mV SELI = IN (500mA mode) 200 Precondition Threshold BATT rising, transition from precondition to charge mode 2.3 2.5 2.7 V Precondition Threshold Hysteresis 80 mV CHG Output Leakage Current VIN = VCHG = 6.5V 0.1 1.0 µA CHG Output Low Voltage ISINK = 10mA 0.4 V VSELI = VIN = 5.5V, VBATT = 2.7V 455 500 Charging Current SELI = GND, VIN = 5.5V, VBATT = 2.7V 85 100 mA VBATT = 2V, SELI = GND or IN 20 43 70 SELV = GND, I BATT Regulation Voltage BATT = 0 4.08 4.10 4.12 V SELV = IN, IBATT = 0 4.18 4.20 4.22 BATT Leakage Current (Input Power Removed) VBATT = 4.2V, EN = IN = GND 1 5 µA BATT Shutdown Current EN = GND, VBATT = 4.2V 0.1 2 µA Logic Input Low Voltage (EN, SELI, SELV) VIN = 4.35V to 6.5V 0.8 V Logic Input High Voltage (EN, SELI, SELV) VIN = 4.35V to 6.5V 2.0 V Logic Input Leakage Current (EN, SELI) VIN = 0 to 6.5V; VSELI, VEN = 6.5V or GND 1 µA Logic Input Leakage Current (SELV) VIN = 0 to 6.5V, VSELV = VIN or GND 1 µA Thermal Regulation Die temperature beyond which charging current is reduced 125 °C www.maximintegrated.com Maxim Integrated │ 2
