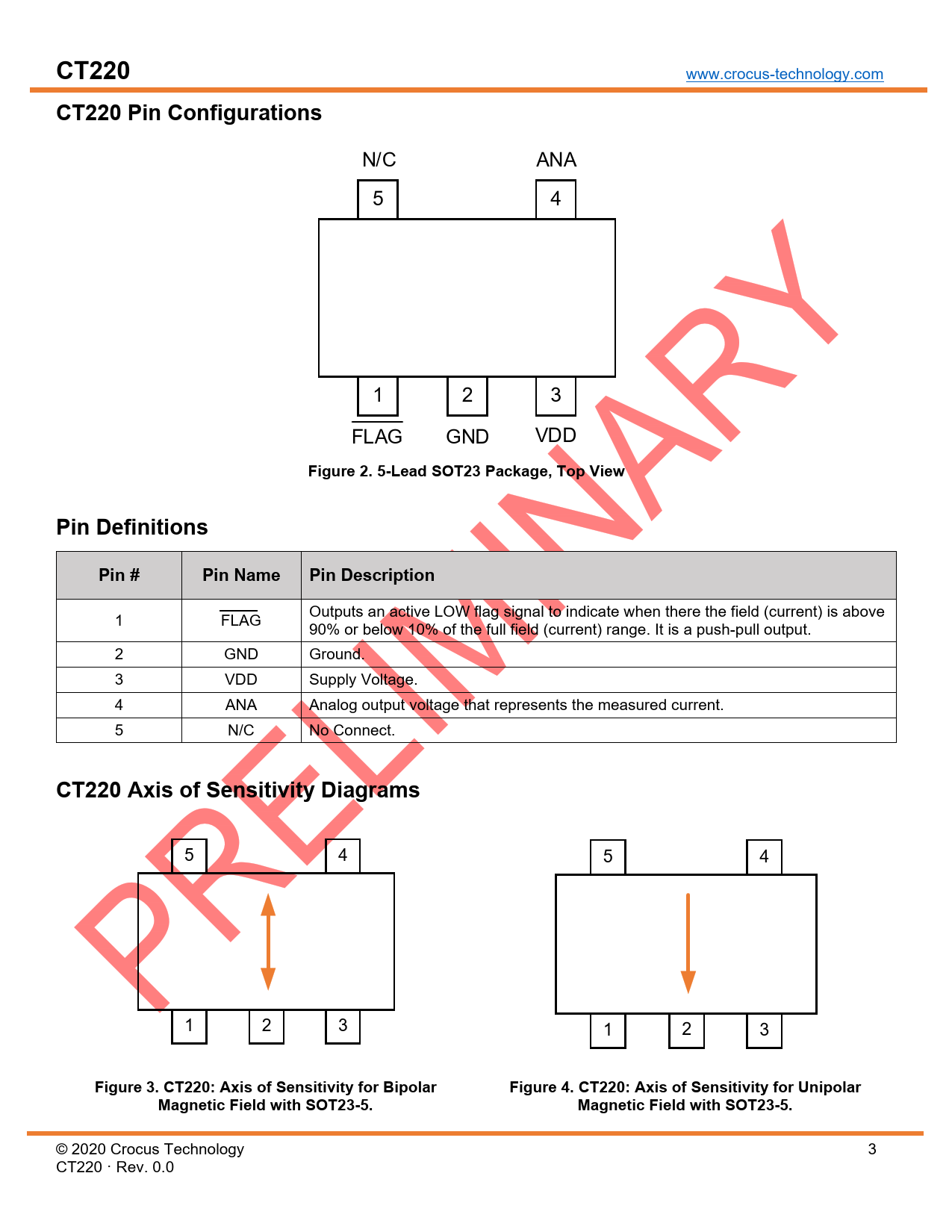

CT220 www.crocus-technology.com CT220 Pin Configurations
Línea de modelo para esta hoja de datos
Versión de texto del documento
CT220 www.crocus-technology.com CT220 Pin Configurations
N/C ANA 5 4 1 2 3 FLAG GND VDD Figure 2. 5-Lead SOT23 Package, Top View Pin Definitions
Pin # Pin Name Pin Description 1 FLAG Outputs an active LOW flag signal to indicate when there the field (current) is above
90% or below 10% of the full field (current) range. It is a push-pull output. 2 GND Ground. 3 VDD Supply Voltage. 4 ANA Analog output voltage that represents the measured current. 5 N/C No Connect. CT220 Axis of Sensitivity Diagrams
5 1 2 4 5 3 1 Figure 3. CT220: Axis of Sensitivity for Bipolar
Magnetic Field with SOT23-5.
© 2020 Crocus Technology
CT220 Rev. 0.0 4 2 3 Figure 4. CT220: Axis of Sensitivity for Unipolar
Magnetic Field with SOT23-5.
3
