| Descripción | TBU-RSxxx-300-WH - TBU High-Speed Protector |
| Páginas / Página | 9 / 8 — TBU-RSxxx-300-WH Series - TBU® High-Speed Protector. Packaging … |
| Formato / tamaño de archivo | PDF / 682 Kb |
| Idioma del documento | Inglés |
TBU-RSxxx-300-WH Series - TBU® High-Speed Protector. Packaging Specifications. Asia-Pacific:. EMEA:. The Americas:
Línea de modelo para esta hoja de datos
Versión de texto del documento

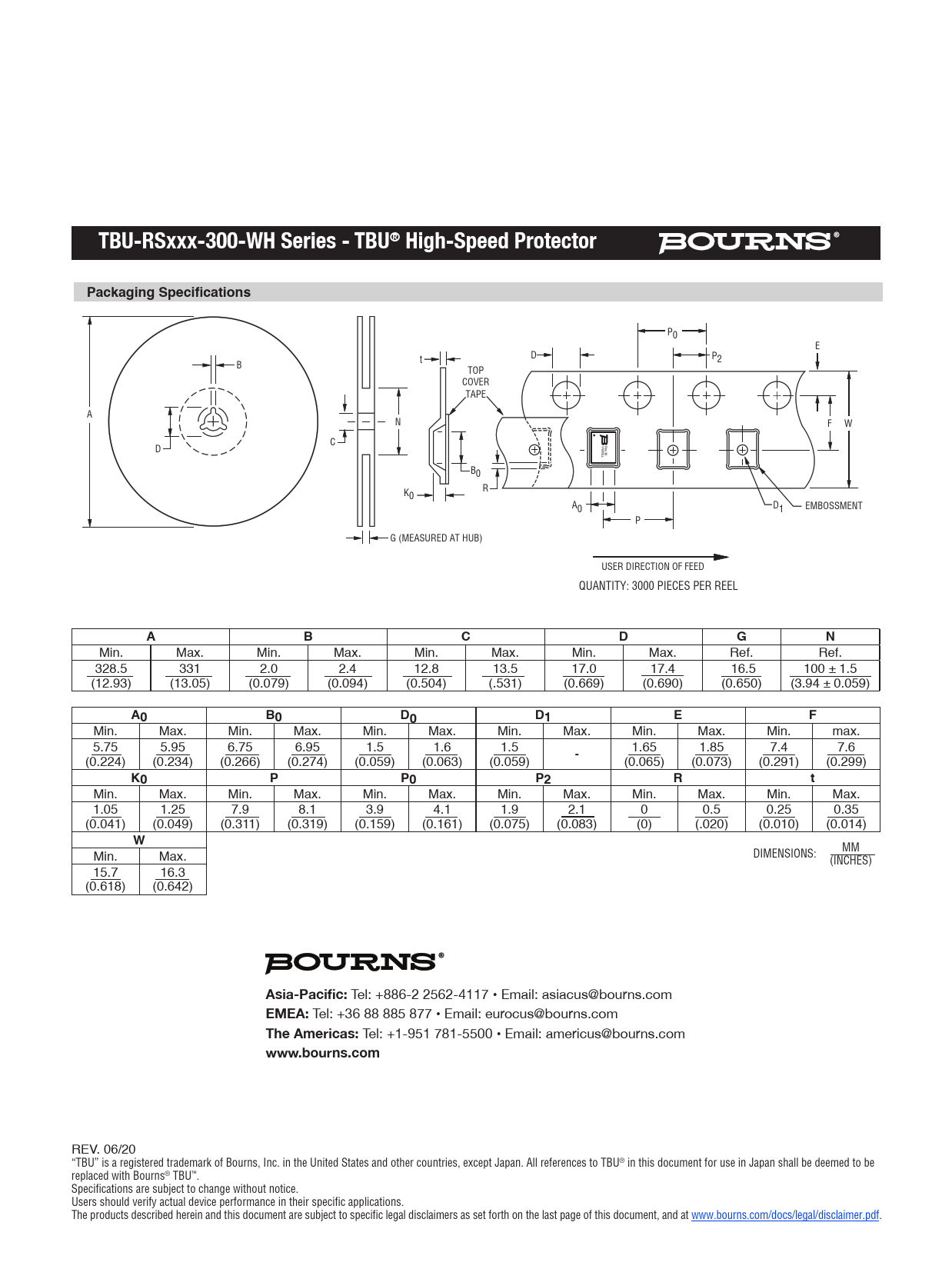

TBU-RSxxx-300-WH Series - TBU® High-Speed Protector Packaging Specifications
P0 E P t D 2 B TOP COVER TAPE A N F W C D YWWLL Rxx30 B0 K R 0 A D 0 1 EMBOSSMENT P G (MEASURED AT HUB) USER DIRECTION OF FEED QUANTITY: 3000 PIECES PER REEL
A B C D G N
Min. Max. Min. Max. Min. Max. Min. Max. Ref. Ref. 328.5 331 2.0 2.4 12.8 13.5 17.0 17.4 16.5 100 ± 1.5 (12.93) (13.05) (0.079) (0.094) (0.504) (.531) (0.669) (0.690) (0.650) (3.94 ± 0.059)
A0 B0 D0 D1 E F
Min. Max. Min. Max. Min. Max. Min. Max. Min. Max. Min. max. 5.75 5.95 6.75 6.95 1.5 1.6 1.5 1.85 7.4 7.6 (0.224) (0.234) (0.266) (0.274) (0.059) (0.063) (0.059) - 1.65 (0.065) (0.073) (0.291) (0.299)
K0 P P0 P2 R t
Min. Max. Min. Max. Min. Max. Min. Max. Min. Max. Min. Max. 1.05 1.25 7.9 8.1 3.9 4.1 1.9 2.1 0 0.5 0.25 0.35 (0.041) (0.049) (0.311) (0.319) (0.159) (0.161) (0.075) (0.083) (0) (.020) (0.010) (0.014)
W
DIMENSIONS: MM Min. Max. (INCHES) 15.7 16.3 (0.618) (0.642)
