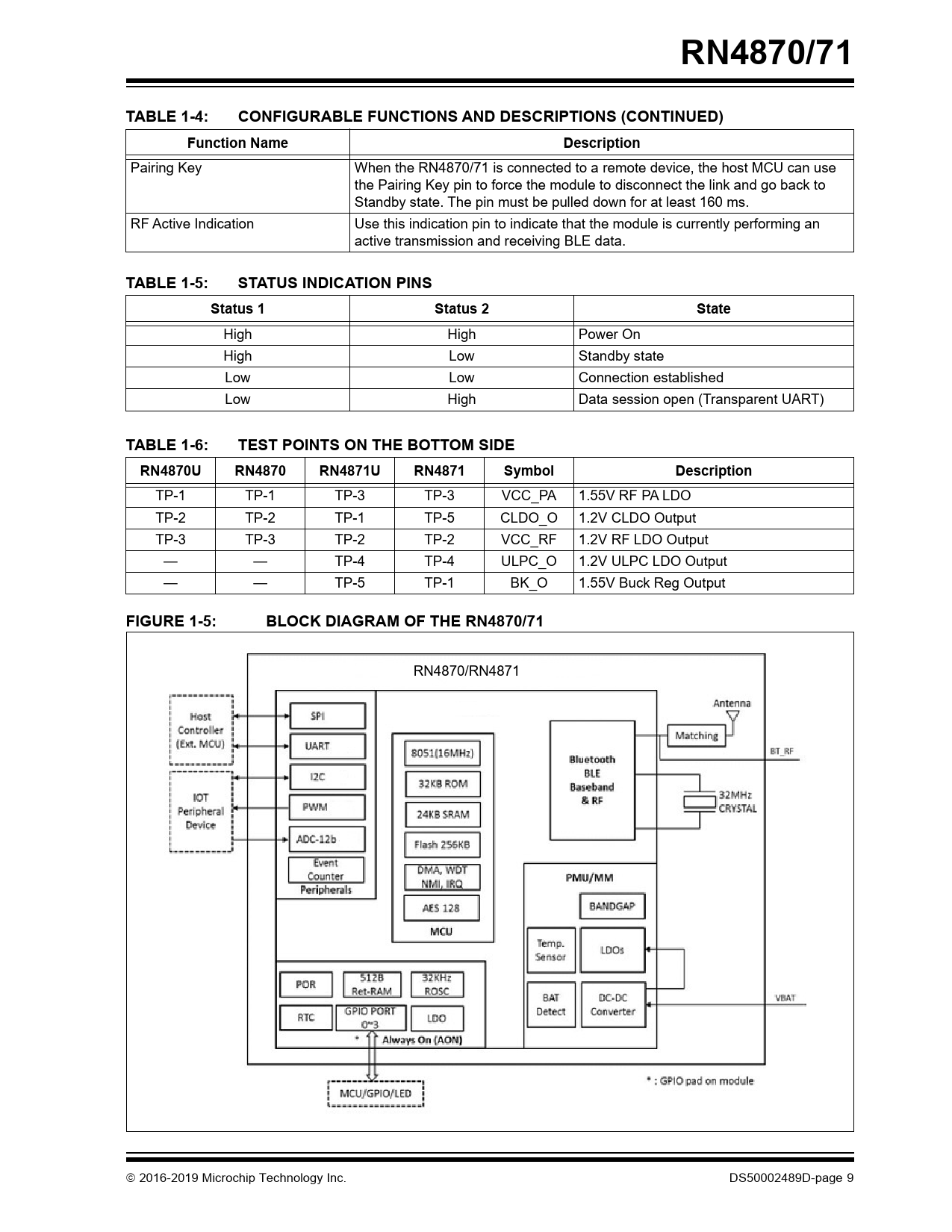

Datasheet RN4870, RN4871 (Microchip) - 9

RN4870/71 TABLE 1-4: CONFIGURABLE FUNCTIONS AND DESCRIPTIONS (CONTINUED) Function Name Description
Pairing Key When the RN4870/71 is connected to a remote device, the host MCU can use the Pairing Key pin to force the module to disconnect the link and go back to Standby state. The pin must be pulled down for at least 160 ms. RF Active Indication Use this indication pin to indicate that the module is currently performing an active transmission and receiving BLE data.
TABLE 1-5: STATUS INDICATION PINS Status 1 Status 2 State
High High Power On High Low Standby state Low Low Connection established Low High Data session open (Transparent UART)
TABLE 1-6: TEST POINTS ON THE BOTTOM SIDE RN4870U RN4870 RN4871U RN4871 Symbol Description
TP-1 TP-1 TP-3 TP-3 VCC_PA 1.55V RF PA LDO TP-2 TP-2 TP-1 TP-5 CLDO_O 1.2V CLDO Output TP-3 TP-3 TP-2 TP-2 VCC_RF 1.2V RF LDO Output — — TP-4 TP-4 ULPC_O 1.2V ULPC LDO Output — — TP-5 TP-1 BK_O 1.55V Buck Reg Output
FIGURE 1-5: BLOCK DIAGRAM OF THE RN4870/71
