Datasheet HMC8200LP5ME (Analog Devices) - 6
| Fabricante | Analog Devices |
| Descripción | Intermediate Frequency Transmitter 800 MHz to 4000 MHz |
| Páginas / Página | 25 / 6 — HMC8200LP5ME. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 4. Parameter. … |
| Revisión | D |
| Formato / tamaño de archivo | PDF / 617 Kb |
| Idioma del documento | Inglés |

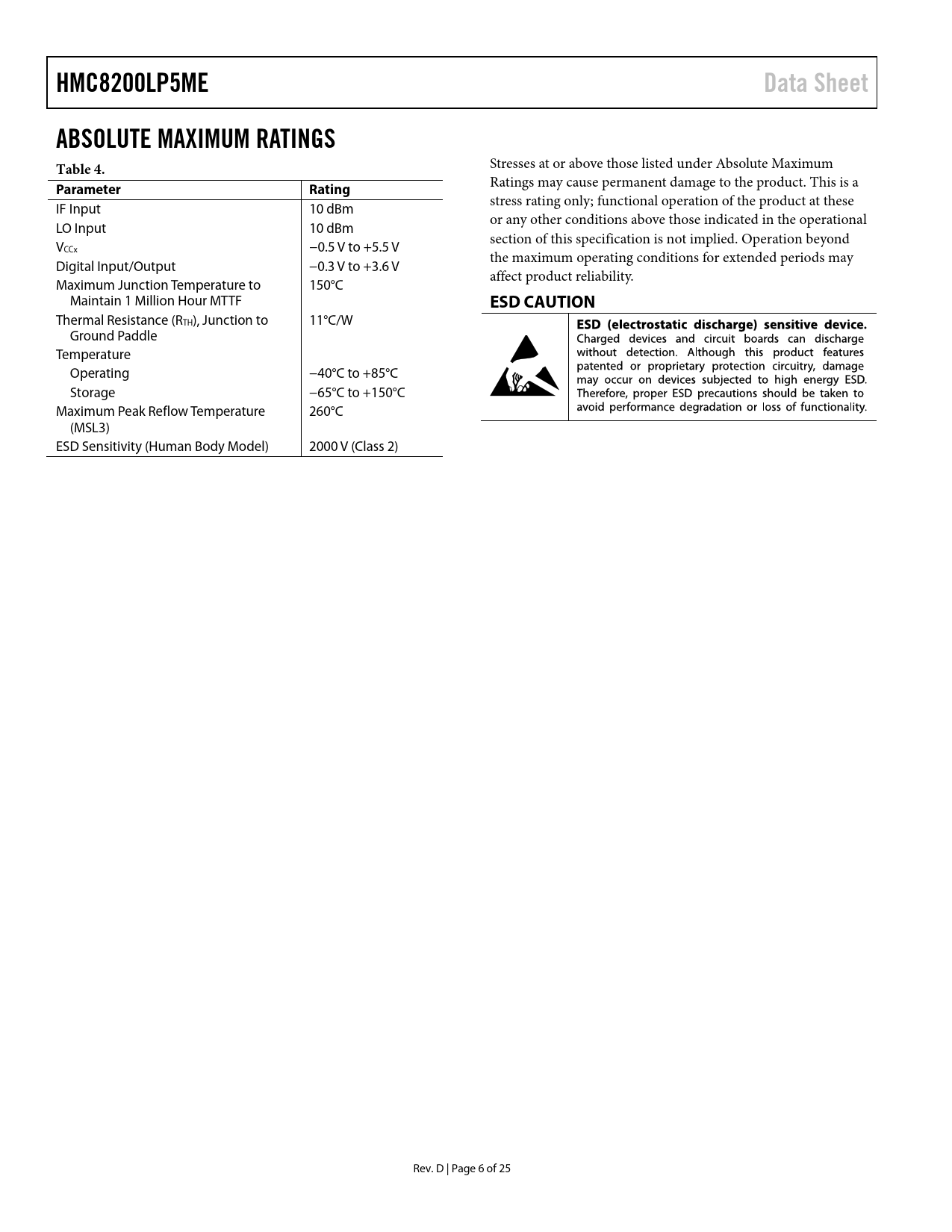

HMC8200LP5ME. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 4. Parameter. Rating. ESD CAUTION
Línea de modelo para esta hoja de datos
Versión de texto del documento
HMC8200LP5ME Data Sheet ABSOLUTE MAXIMUM RATINGS Table 4.
Stresses at or above those listed under Absolute Maximum
Parameter Rating
Ratings may cause permanent damage to the product. This is a IF Input 10 dBm stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational LO Input 10 dBm section of this specification is not implied. Operation beyond VCCx −0.5 V to +5.5 V the maximum operating conditions for extended periods may Digital Input/Output −0.3 V to +3.6 V affect product reliability. Maximum Junction Temperature to 150°C Maintain 1 Million Hour MTTF
ESD CAUTION
Thermal Resistance (RTH), Junction to 11°C/W Ground Paddle Temperature Operating −40°C to +85°C Storage −65°C to +150°C Maximum Peak Reflow Temperature 260°C (MSL3) ESD Sensitivity (Human Body Model) 2000 V (Class 2) Rev. D | Page 6 of 25 Document Outline Features Applications Functional Block Diagram General Description Revision History Specifications Electrical Characteristics: 800 MHz to 1800 MHz RF Frequency Range Electrical Characteristics: 1800 MHz to 2800 MHz RF Frequency Range Electrical Characteristics: 2800 MHz to 4000 MHz RF Frequency Range Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Theory of Operation Register Array Assignments and Serial Interface Read Example Register Descriptions Register Array Assignments Enable Bits Digital Gain Amplifier: DGA Control Digital Gain Amplifier: Amplifier Current, Envelope Level, and VGA Attenuation Bias Image Reject Mixer: Sideband, and Polarity and Offset for I Image Reject Mixer: Polarity and Offset for Q Phase I: Adjust Phase Q: Adjust Evaluation Printed Circuit Board (PCB) Evaluation PCB Schematic Outline Dimensions Ordering Guide
