Datasheet AD8361 (Analog Devices) - 4
| Fabricante | Analog Devices |
| Descripción | LF to 2.5 GHz TruPwr Detector |
| Páginas / Página | 22 / 4 — AD8361. Data Sheet. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter. Rating. … |
| Revisión | F |
| Formato / tamaño de archivo | PDF / 507 Kb |
| Idioma del documento | Inglés |

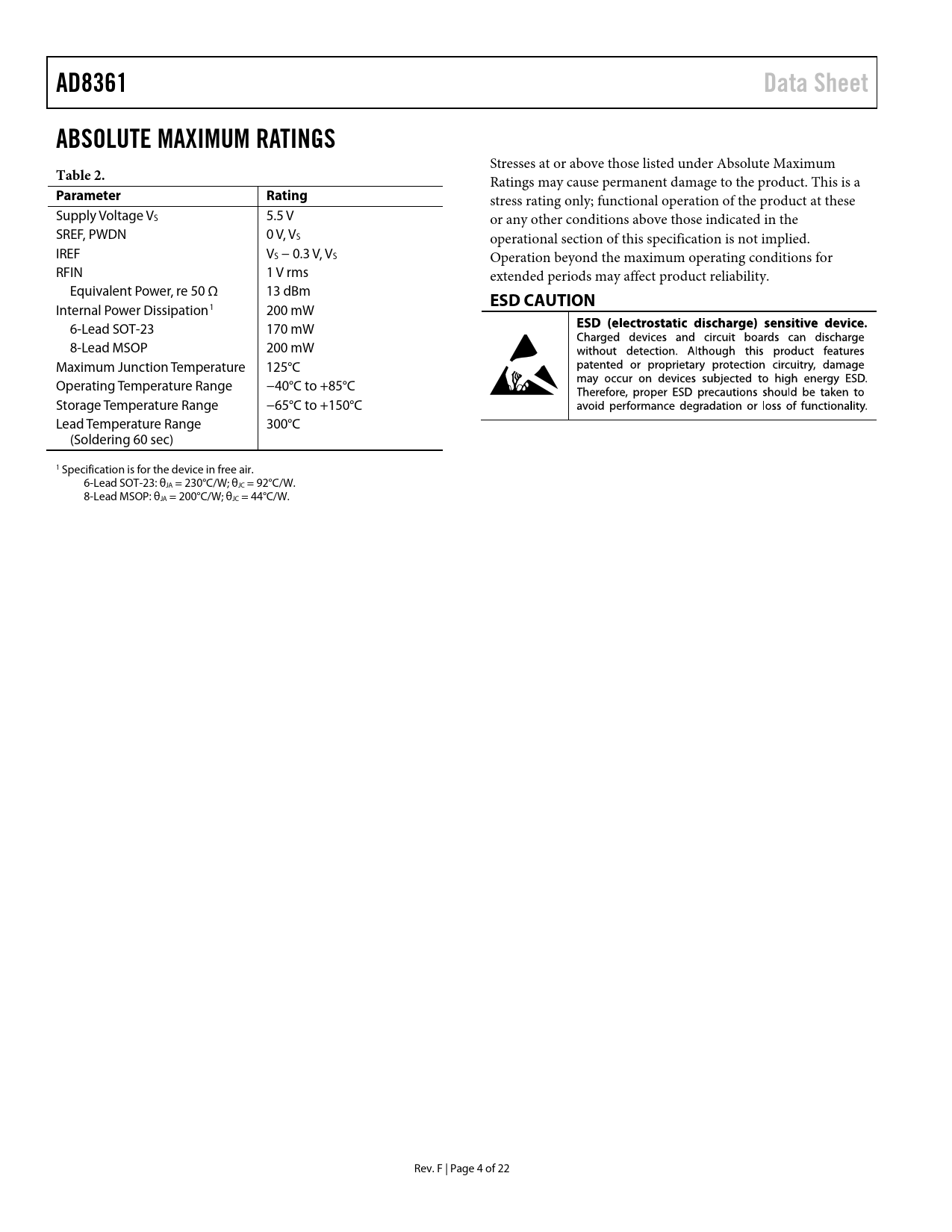

AD8361. Data Sheet. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter. Rating. ESD CAUTION
Línea de modelo para esta hoja de datos
Versión de texto del documento
AD8361 Data Sheet ABSOLUTE MAXIMUM RATINGS
Stresses at or above those listed under Absolute Maximum
Table 2.
Ratings may cause permanent damage to the product. This is a
Parameter Rating
stress rating only; functional operation of the product at these Supply Voltage VS 5.5 V or any other conditions above those indicated in the SREF, PWDN 0 V, VS operational section of this specification is not implied. IREF VS − 0.3 V, VS Operation beyond the maximum operating conditions for RFIN 1 V rms extended periods may affect product reliability. Equivalent Power, re 50 Ω 13 dBm
