Datasheet ADL5502 (Analog Devices) - 6
| Fabricante | Analog Devices |
| Descripción | 450 MHz to 6000 MHz Crest Factor Detector |
| Páginas / Página | 28 / 6 — ADL5502. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter Rating. ESD CAUTION |
| Revisión | A |
| Formato / tamaño de archivo | PDF / 1.8 Mb |
| Idioma del documento | Inglés |

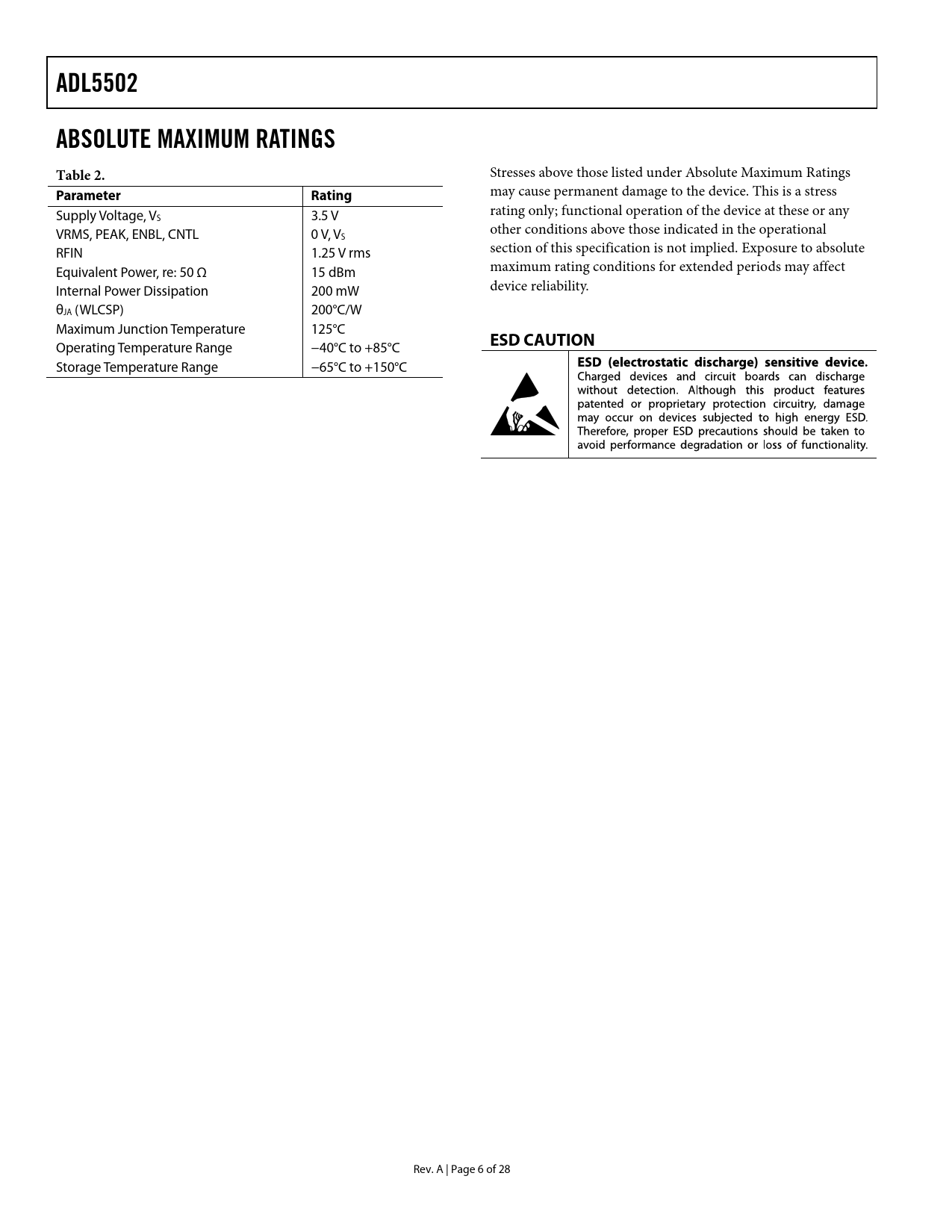

ADL5502. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter Rating. ESD CAUTION
Línea de modelo para esta hoja de datos
Versión de texto del documento
ADL5502 ABSOLUTE MAXIMUM RATINGS Table 2.
Stresses above those listed under Absolute Maximum Ratings
Parameter Rating
may cause permanent damage to the device. This is a stress Supply Voltage, V rating only; functional operation of the device at these or any S 3.5 V VRMS, PEAK, ENBL, CNTL 0 V, V other conditions above those indicated in the operational S RFIN 1.25 V rms section of this specification is not implied. Exposure to absolute Equivalent Power, re: 50 Ω 15 dBm maximum rating conditions for extended periods may affect Internal Power Dissipation 200 mW device reliability. θJA (WLCSP) 200°C/W Maximum Junction Temperature 125°C
ESD CAUTION
Operating Temperature Range −40°C to +85°C Storage Temperature Range −65°C to +150°C Rev. A | Page 6 of 28 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS CIRCUIT DESCRIPTION RMS CIRCUIT DESCRIPTION AND FILTERING FILTERING ENVELOPE PEAK-HOLD CIRCUIT OUTPUT BUFFERS MEASURING THE CREST FACTOR APPLICATIONS INFORMATION BASIC CONNECTIONS RF INPUT INTERFACING Resistive Tap RF Input Multiple RF Inputs LINEARITY Output Swing VRMS Output Offset OUTPUT DRIVE CAPABILITY AND BUFFERING SELECTING THE SQUARE-DOMAIN FILTER AND OUTPUT LOW-PASS FILTER POWER CONSUMPTION, ENABLE, AND POWER-ON/POWER-OFF RESPONSE TIME DEVICE CALIBRATION AND ERROR CALCULATION CALIBRATION FOR IMPROVED ACCURACY CALCULATION OF CREST FACTOR (CF) DRIFT OVER A REDUCED TEMPERATURE RANGE OPERATION AT HIGH FREQUENCIES DEVICE HANDLING EVALUATION BOARD Operating in Peak-Hold Mode Land Pattern and Soldering Information OUTLINE DIMENSIONS ORDERING GUIDE
