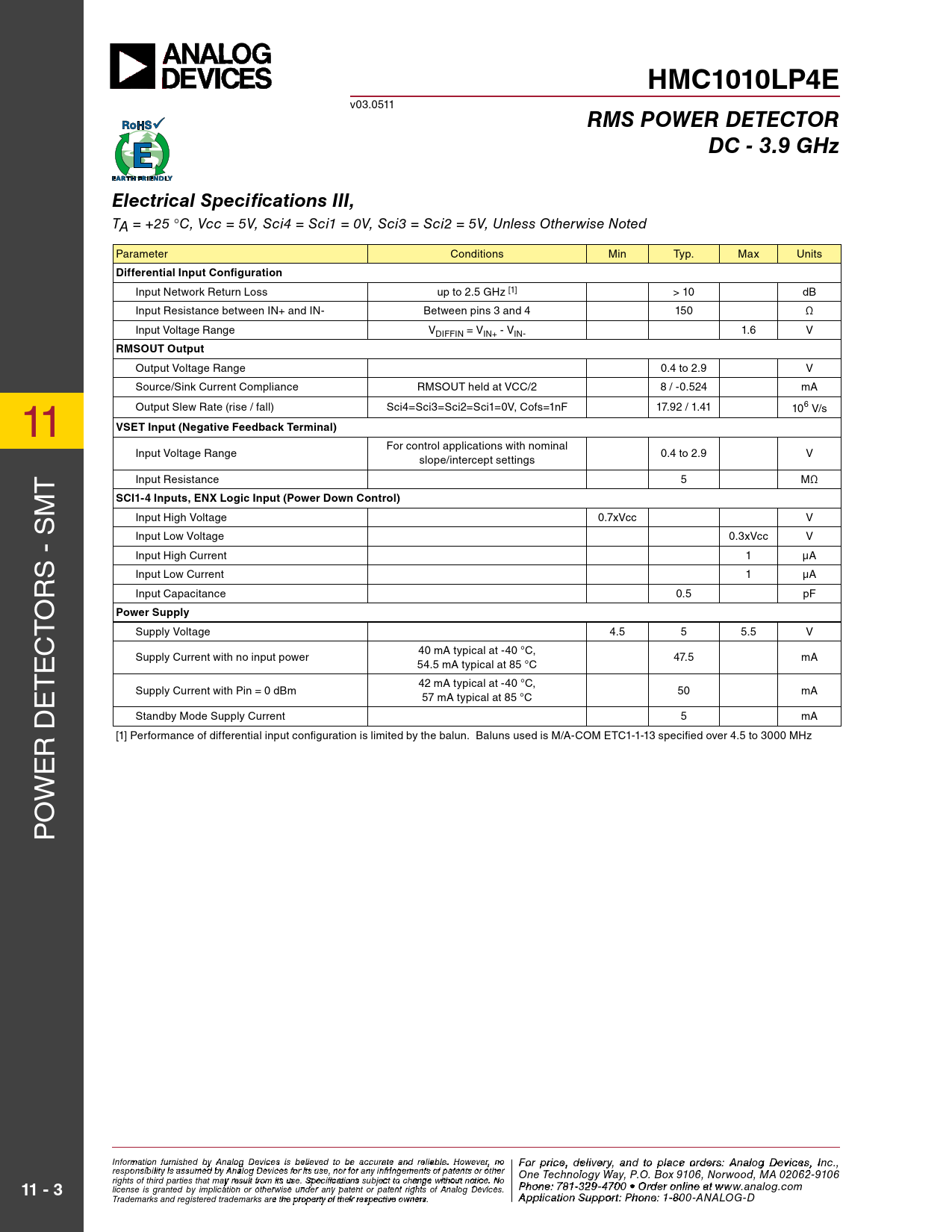

HMC1010LP4E. RMS POWER DETECTOR. DC - 3.9 GHz. Electrical Specifications III,. Differential Input Configuration. RMSOUT Output
Línea de modelo para esta hoja de datos
Versión de texto del documento
HMC1010LP4E
v03.0511
RMS POWER DETECTOR DC - 3.9 GHz Electrical Specifications III,
TA = +25 °C, Vcc = 5V, Sci4 = Sci1 = 0V, Sci3 = Sci2 = 5V, Unless Otherwise Noted Parameter conditions Min typ. Max Units
Differential Input Configuration
Input Network return Loss up to 2.5 GHz [1] > 10 dB Input resistance between IN+ and IN- Between pins 3 and 4 150 Ω Input Voltage range VDIFFIN = VIN+ - VIN- 1.6 V
RMSOUT Output
output Voltage range 0.4 to 2.9 V source/sink current compliance rMsoUt held at Vcc/2 8 / -0.524 mA 11 Output Slew Rate (rise / fall) sci4=sci3=sci2=sci1=0V, cofs=1nF 17.92 / 1.41 106 V/s
VSET Input (Negative Feedback Terminal)
For control applications with nominal Input Voltage range 0.4 to 2.9 V slope/intercept settings t Input resistance 5 MΩ M
SCI1-4 Inputs, ENX Logic Input (Power Down Control)
s Input High Voltage 0.7xVcc V - Input Low Voltage 0.3xVcc V Input High current 1 μA rs Input Low current 1 μA Input capacitance 0.5 pF o t
Power Supply
c supply Voltage 4.5 5 5.5 V e 40 mA typical at -40 °c, supply current with no input power 47.5 mA 54.5 mA typical at 85 °c t 42 mA typical at -40 °c, e supply current with Pin = 0 dBm 50 mA 57 mA typical at 85 °c D standby Mode supply current 5 mA r [1] Performance of differential input configuration is limited by the balun. Baluns used is M/A-COM ETC1-1-13 specified over 4.5 to 3000 MHz e w o P Info F rmoatr p ion rfiurcne is , d hed ebly ivAe n r al y a og D n evd t ice o p s is bla eli c eve o ed t rd o b e e ras: H ccuratite tiatne M d reli iac bl reo . w Ho av wev e C er, n o o For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rporation, 20 Alpha Road, Chelmsford, MA 01824 One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 978-250-3343 Fax: 978-250-3373 O rights of third parties that may result from its use. Specifications subject to change without notice. No P rd ho e ne r O : 7 n 81- -3li 2n 9 e a -47 t w 0 w 0 • O w rd .h e it r o tniltie n .c e ao t m
11 - 3
license is granted by implication or otherwise under any patent or patent rights of Analog Devices. www.analog.com Application Support: Pho Trademarks and registered trademarks are the property of their respective owners. ne: 978-250-33 A 4 p 3 o plica r a tio p n S p u s p @ po h rt itt : P ite ho . n c e o : 1m -800-ANALOG-D
