Datasheet ADL5505 (Analog Devices) - 5
| Fabricante | Analog Devices |
| Descripción | 450 MHz TO 6000 MHz TruPwr Detector |
| Páginas / Página | 20 / 5 — ADL5505. Parameter. Test Conditions. Min. Typ. Max. Unit |
| Revisión | A |
| Formato / tamaño de archivo | PDF / 1.2 Mb |
| Idioma del documento | Inglés |
ADL5505. Parameter. Test Conditions. Min. Typ. Max. Unit
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 3 link to page 3 link to page 3 link to page 3 link to page 3 link to page 3 link to page 8 link to page 9 link to page 9 link to page 9 link to page 10 link to page 10 link to page 10 link to page 9 link to page 9 link to page 9 link to page 10 link to page 10 link to page 10 link to page 12 link to page 12 link to page 11 link to page 5 link to page 5 link to page 5 link to page 5 link to page 5 link to page 5 link to page 5 link to page 5

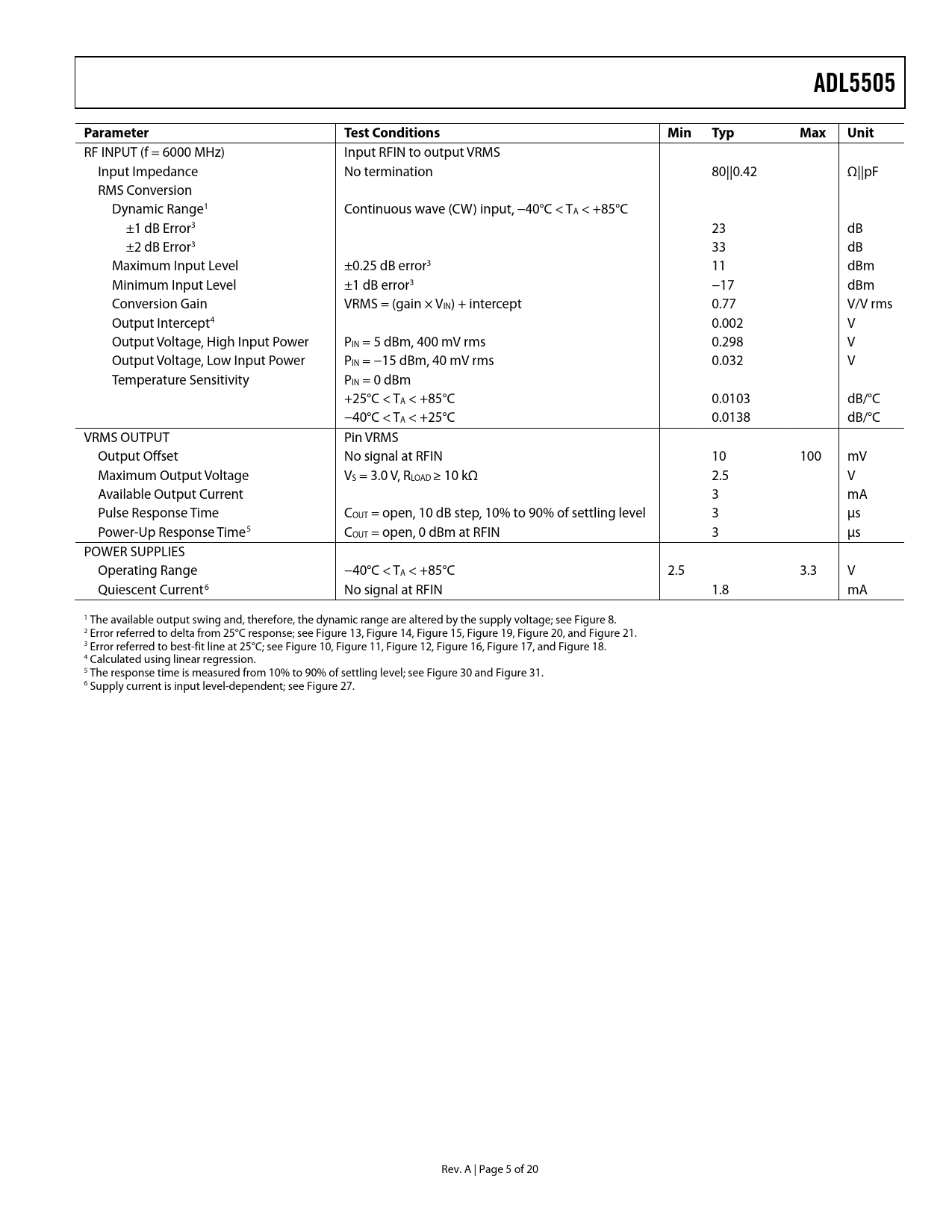

ADL5505 Parameter Test Conditions Min Typ Max Unit
RF INPUT (f = 6000 MHz) Input RFIN to output VRMS Input Impedance No termination 80||0.42 Ω||pF RMS Conversion Dynamic Range1 Continuous wave (CW) input, −40°C < TA < +85°C ±1 dB Error3 23 dB ±2 dB Error3 33 dB Maximum Input Level ±0.25 dB error3 11 dBm Minimum Input Level ±1 dB error3 −17 dBm Conversion Gain VRMS = (gain × VIN) + intercept 0.77 V/V rms Output Intercept4 0.002 V Output Voltage, High Input Power PIN = 5 dBm, 400 mV rms 0.298 V Output Voltage, Low Input Power PIN = −15 dBm, 40 mV rms 0.032 V Temperature Sensitivity PIN = 0 dBm +25°C < TA < +85°C 0.0103 dB/°C −40°C < TA < +25°C 0.0138 dB/°C VRMS OUTPUT Pin VRMS Output Offset No signal at RFIN 10 100 mV Maximum Output Voltage VS = 3.0 V, RLOAD ≥ 10 kΩ 2.5 V Available Output Current 3 mA Pulse Response Time COUT = open, 10 dB step, 10% to 90% of settling level 3 µs Power-Up Response Time5 COUT = open, 0 dBm at RFIN 3 µs POWER SUPPLIES Operating Range −40°C < TA < +85°C 2.5 3.3 V Quiescent Current6 No signal at RFIN 1.8 mA 1 The available output swing and, therefore, the dynamic range are altered by the supply voltage; see Figure 8. 2 Error referred to delta from 25°C response; see Figure 13, Figure 14, Figure 15, Figure 19, Figure 20, and Figure 21. 3 Error referred to best-fit line at 25°C; see Figure 10, Figure 11, Figure 12, Figure 16, Figure 17, and Figure 18. 4 Calculated using linear regression. 5 The response time is measured from 10% to 90% of settling level; see Figure 30 and Figure 31. 6 Supply current is input level-dependent; see Figure 27. Rev. A | Page 5 of 20 Document Outline Features Applications Functional Block Diagram General Description Revision History Specifications Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Circuit Description RMS Circuit Description and Filtering Filtering Output Buffer Applications Information Basic Connections RF Input Interfacing Resistive Tap RF Input Multiple RF Inputs Linearity Output Swing Output Offset Output Drive Capability and Buffering Selecting the Output Low-Pass Filter Power Consumption Device Calibration and Error Calculation Calibration for Improved Accuracy Drift Over a Reduced Temperature Range Device Handling Land Pattern and Soldering Information Evaluation Board Outline Dimensions Ordering Guide
ADL5505 Parameter Test Conditions Min Typ Max Unit
RF INPUT (f = 6000 MHz) Input RFIN to output VRMS Input Impedance No termination 80||0.42 Ω||pF RMS Conversion Dynamic Range1 Continuous wave (CW) input, −40°C < TA < +85°C ±1 dB Error3 23 dB ±2 dB Error3 33 dB Maximum Input Level ±0.25 dB error3 11 dBm Minimum Input Level ±1 dB error3 −17 dBm Conversion Gain VRMS = (gain × VIN) + intercept 0.77 V/V rms Output Intercept4 0.002 V Output Voltage, High Input Power PIN = 5 dBm, 400 mV rms 0.298 V Output Voltage, Low Input Power PIN = −15 dBm, 40 mV rms 0.032 V Temperature Sensitivity PIN = 0 dBm +25°C < TA < +85°C 0.0103 dB/°C −40°C < TA < +25°C 0.0138 dB/°C VRMS OUTPUT Pin VRMS Output Offset No signal at RFIN 10 100 mV Maximum Output Voltage VS = 3.0 V, RLOAD ≥ 10 kΩ 2.5 V Available Output Current 3 mA Pulse Response Time COUT = open, 10 dB step, 10% to 90% of settling level 3 µs Power-Up Response Time5 COUT = open, 0 dBm at RFIN 3 µs POWER SUPPLIES Operating Range −40°C < TA < +85°C 2.5 3.3 V Quiescent Current6 No signal at RFIN 1.8 mA 1 The available output swing and, therefore, the dynamic range are altered by the supply voltage; see Figure 8. 2 Error referred to delta from 25°C response; see Figure 13, Figure 14, Figure 15, Figure 19, Figure 20, and Figure 21. 3 Error referred to best-fit line at 25°C; see Figure 10, Figure 11, Figure 12, Figure 16, Figure 17, and Figure 18. 4 Calculated using linear regression. 5 The response time is measured from 10% to 90% of settling level; see Figure 30 and Figure 31. 6 Supply current is input level-dependent; see Figure 27. Rev. A | Page 5 of 20 Document Outline Features Applications Functional Block Diagram General Description Revision History Specifications Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Circuit Description RMS Circuit Description and Filtering Filtering Output Buffer Applications Information Basic Connections RF Input Interfacing Resistive Tap RF Input Multiple RF Inputs Linearity Output Swing Output Offset Output Drive Capability and Buffering Selecting the Output Low-Pass Filter Power Consumption Device Calibration and Error Calculation Calibration for Improved Accuracy Drift Over a Reduced Temperature Range Device Handling Land Pattern and Soldering Information Evaluation Board Outline Dimensions Ordering Guide
