Datasheet LTC5582 (Analog Devices) - 10
| Fabricante | Analog Devices |
| Descripción | 40MHz to 10GHz RMS Power Detector with 57dB Dynamic Range |
| Páginas / Página | 18 / 10 — TEST CIRCUITS. REF DES. VALUE. SIZE. PART NUMBER |
| Revisión | B |
| Formato / tamaño de archivo | PDF / 1.6 Mb |
| Idioma del documento | Inglés |
TEST CIRCUITS. REF DES. VALUE. SIZE. PART NUMBER
Línea de modelo para esta hoja de datos
Versión de texto del documento
LTC5582
TEST CIRCUITS
R1 1.5Ω 3.3V C3 C2 C1 100nF 1nF 1µF C4 1 10 VCC FLTR 10nF J1 2 9 IN+ EN EN RF INPUT C5 LTC5582 R4 3 8 R3 NC NC DEC RT1 91Ω 100k 4 7 IN– RT2 C8 C9 R5 R6 6.8pF 180pF 5 6 GND OUT OUT 0Ω 0Ω EXPOSED PAD C10 OPTIONAL 5582 F01 11
REF DES VALUE SIZE PART NUMBER
C1 1uF 0402 MURATA GRM155R60J105KE19 C2 1nF 0402 MURATA GRM155R71H102KA01 C3 100nF 0402 TDK CID05X7R1C104K C4 10nF 0402 PPI0402BB103KW500 C5 0.4pF 0402 MURATA GJM1555C1HR40BB01 C8 6.8pF 0402 MURATA GJM1555C1H6R8DB01 C9 180pF 0402 MURATA GRM1555C1H181JA01 R1 1.5Ω 0603 VISHAY CRCW06031R50JNEA R3 100KΩ 0402 VISHAY CRCW0402100KFKED R4 91Ω 0402 RK731ETTP90R9F R5 2k 0402 VISHAY CRCW04022K00FKEA R6 0 0402 VISHAY CRCW0402020000Z0ED

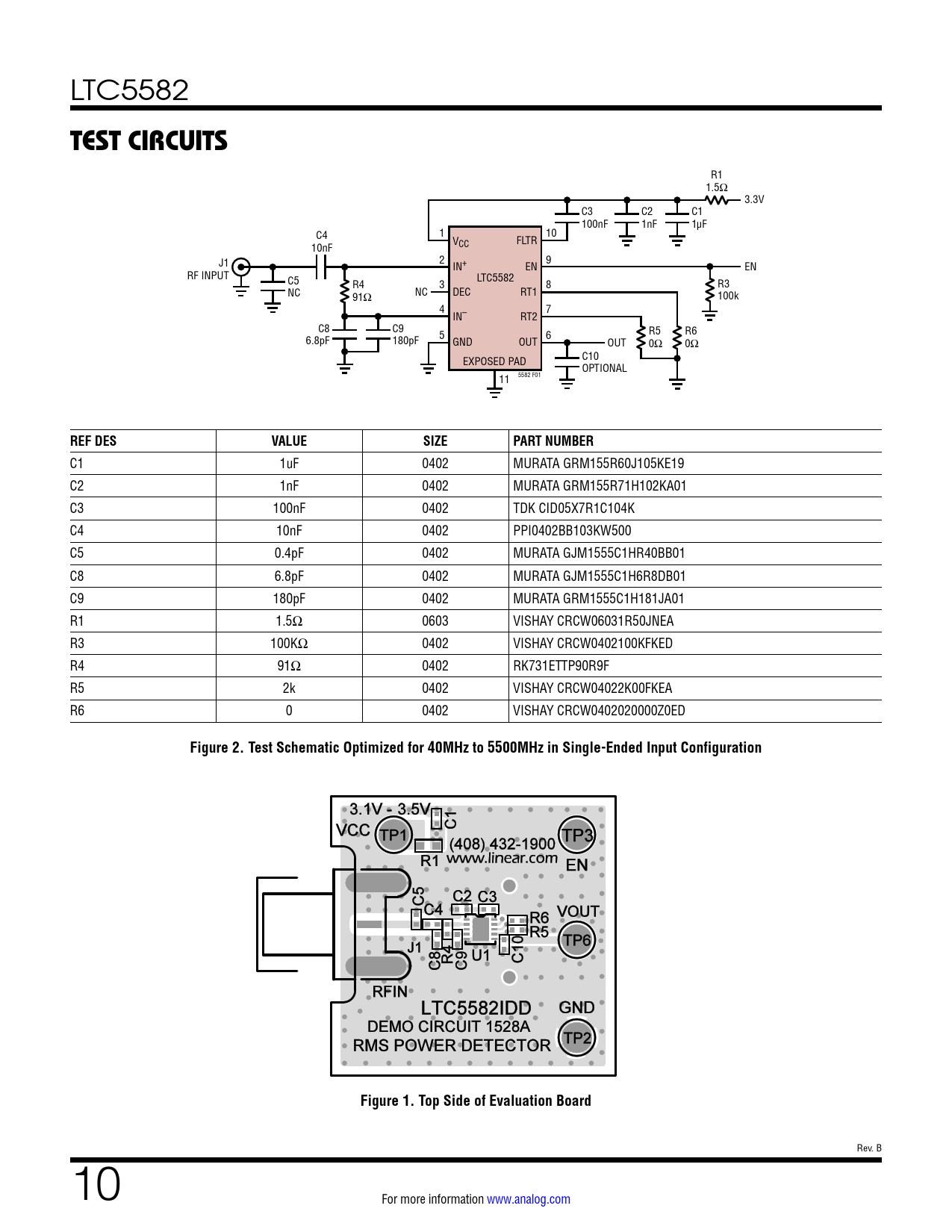

Figure 2. Test Schematic Optimized for 40MHz to 5500MHz in Single-Ended Input Configuration Figure 1. Top Side of Evaluation Board
