| Fabricante | Analog Devices |
| Descripción | RMS Power Detector & Envelope Tracker, DC - 3.9 GHz |
| Páginas / Página | 28 / 4 — HMC1120LP4E. RMS POWER DETECTOR &. ENVELOPE TRACKER, DC - 3.9 GHz |
| Formato / tamaño de archivo | PDF / 7.1 Mb |
| Idioma del documento | Inglés |
HMC1120LP4E. RMS POWER DETECTOR &. ENVELOPE TRACKER, DC - 3.9 GHz
Línea de modelo para esta hoja de datos
Versión de texto del documento
HMC1120LP4E
v00.0814

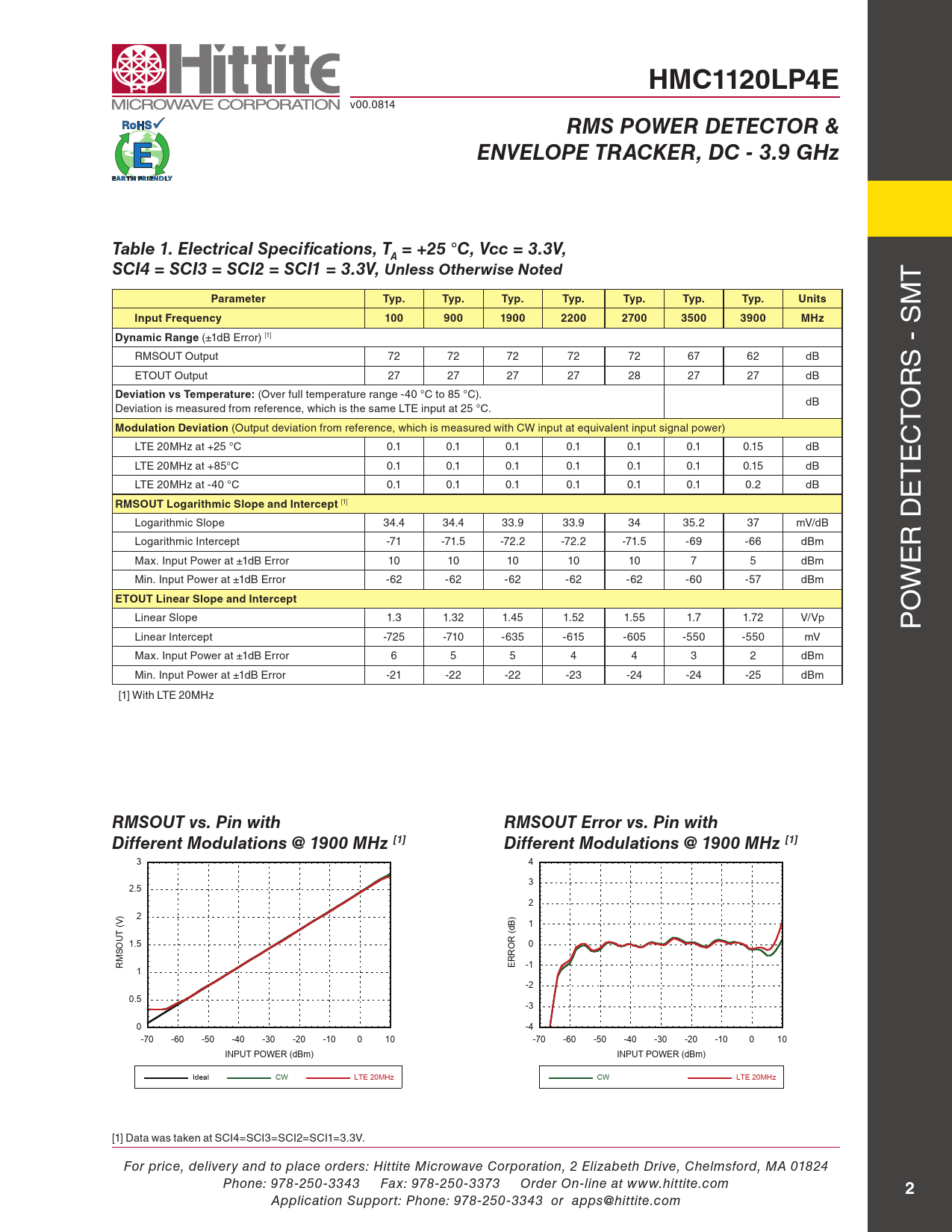

RMS POWER DETECTOR & ENVELOPE TRACKER, DC - 3.9 GHz Table 1. Electrical Specifications, T = +25 °C, Vcc = 3.3V, A SCi4 = SCi3 = SCi2 = SCi1 = 3.3V, Unless Otherwise Noted
T
Parameter Typ. Typ. Typ. Typ. Typ. Typ. Typ. Units
M
Input Frequency 100 900 1900 2200 2700 3500 3900 MHz
S
Dynamic Range
(±1dB Error) [1] - RMSOUT Output 72 72 72 72 72 67 62 dB ETOUT Output 27 27 27 27 28 27 27 dB RS
Deviation vs Temperature:
(Over full temperature range -40 °C to 85 °C). dB Deviation is measured from reference, which is the same LTE input at 25 °C. O T
Modulation Deviation
(Output deviation from reference, which is measured with CW input at equivalent input signal power) LTE 20MHz at +25 °C 0.1 0.1 0.1 0.1 0.1 0.1 0.15 dB C E LTE 20MHz at +85°C 0.1 0.1 0.1 0.1 0.1 0.1 0.15 dB T LTE 20MHz at -40 °C 0.1 0.1 0.1 0.1 0.1 0.1 0.2 dB E
RMSOUT Logarithmic Slope and Intercept
[1] Logarithmic Slope 34.4 34.4 33.9 33.9 34 35.2 37 mV/dB D Logarithmic Intercept -71 -71.5 -72.2 -72.2 -71.5 -69 -66 dBm R Max. Input Power at ±1dB Error 10 10 10 10 10 7 5 dBm E Min. Input Power at ±1dB Error -62 -62 -62 -62 -62 -60 -57 dBm W
ETOUT Linear Slope and Intercept
O Linear Slope 1.3 1.32 1.45 1.52 1.55 1.7 1.72 V/Vp P Linear Intercept -725 -710 -635 -615 -605 -550 -550 mV Max. Input Power at ±1dB Error 6 5 5 4 4 3 2 dBm Min. Input Power at ±1dB Error -21 -22 -22 -23 -24 -24 -25 dBm [1] With LTE 20MHz
RMSOUT vs. Pin with RMSOUT Error vs. Pin with Different Modulations @ 1900 MHz [1] Different Modulations @ 1900 MHz [1]
3 4 3 2.5 2 2 1 1.5 0 RMSOUT (V) ERROR (dB) -1 1 -2 0.5 -3 0 -4 -70 -60 -50 -40 -30 -20 -10 0 10 -70 -60 -50 -40 -30 -20 -10 0 10 INPUT POWER (dBm) INPUT POWER (dBm) Ideal CW LTE 20MHz CW LTE 20MHz [1] Data was taken at SCI4=SCI3=SCI2=SCI1=3.3V. For price, delivery and to place orders: Hittite Microwave Corporation, 2 Elizabeth Drive, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373 Order On-line at www.hittite.com
2
Application Support: Phone: 978-250-3343 or apps@hittite.com Document Outline Typical Applications Features Functional Diagram General Description Typical Performance Characteristics Electrical Specifications RMSOUT Error vs. Pin with Different Modulations @ 1900 MHz RMSOUT & Error vs. Pin @ 500 MHz RMSOUT & Error vs. Pin @ 900 MHz RMSOUT & Error vs. Pin @ 1900 MHz RMSOUT & Error vs. Pin @ 2200 MHz RMSOUT & Error vs. Pin @ 2700 MHz RMSOUT & Error vs. Pin @ 3500 MHz RMSOUT Intercept vs. Frequency RMSOUT Slope vs. Frequency RMSOUT vs. Pin with WCDMA 4 Carrier @ +25 °C RMSOUT Error vs. Pin with WCDMA 4 Carrier @ +25 °C RMSOUT Error vs. Pin with WCDMA 4 Carrier @ +85 °C wrt +25 °C Response RMSOUT vs. Pin with CW @ +25 °C RMSOUT Error vs. Pin with CW @ +25 °C RMSOUT vs. Pin w/ CW & WCDMA 4 Carrier @ 1900 MHz & +25 °C Reading Error for WCDMA 4 Carrier wrt CW Response @ +25 °C RMSOUT vs. Pin w/ CW & WCDMA 4 Carrier @ 1900 MHz & +85 °C Reading Error for WCDMA 4 Carrier wrt CW Response @ +85 °C RMSOUT vs. Pin w/ CW & WCDMA 4 Carrier @ 1900 MHz & -40 °C Reading Error for WCDMA 4 Carrier wrt CW Response @ -40 °C RMSOUT Output Response with SCI = 0000 @ 1900 MHz RMSOUT Output Response with SCI = 1100 @ 1900 MHz Typical Supply Current vs. Pin, Vcc = 3.3V Input Return Loss vs. Frequency Output Ripple & Rise/Fall Time vs. Integration Setting [Sci4,Sci3,Sci2,Sci1] in Decimal ETOUT vs. Vin with CW @ 900 MHz ETOUT & ETOUT Error vs. Pin with CW @ 900 MHz ETOUT vs. Vin with CW @ 1900 MHz ETOUT & ETOUT Error vs. Pin with CW @ 1900 MHz ETOUT vs. Pin with CW @ 2200 MHz ETOUT & ETOUT Error vs. Pin with CW @ 2200 MHz ETOUT vs. Pin with CW @ 2700 MHz ETOUT & ETOUT Error vs. Pin with CW @ 2700 MHz ETOUT vs. Pin with CW @ 3500 MHz ETOUT & ETOUT Error vs. Pin with CW @ 3500 MHz ETOUT & ETOUT Error vs. Pin with CW @ 3900 MHz ETOUT vs. Pin with CW @ 3900 MHz ETOUT Intercept vs. Frequency with CW ETOUT Slope vs. Frequency with CW Absolute Maximum Ratings Outline Drawing Package Information Pin Descriptions Evaluation PCB Evaluation Order Information List of Materials for Evaluation PCB Application Circuit Application Information Principle of Operation Configuration For The Typical Application Broadband Single-Ended Input Interface Envelope Detector Output RMS Output Interface and Transient Response LOG-Slope and Intercept DC Offset Compensation Loop Standby Mode Modulation Performance - Crest factor performance System Calibration Layout Considerations Definitions
