Datasheet AP7348 (Diodes) - 2
| Fabricante | Diodes |
| Descripción | 4 Channel 300MA High PSRR Low Noise LDO With Enable |
| Páginas / Página | 15 / 2 — AP7348. Typical Applications Circuit. O R. E N. Pin Descriptions. Pin … |
| Formato / tamaño de archivo | PDF / 1.5 Mb |
| Idioma del documento | Inglés |
AP7348. Typical Applications Circuit. O R. E N. Pin Descriptions. Pin Number. Pin Name. Function. www.diodes.com
Línea de modelo para esta hoja de datos
Versión de texto del documento

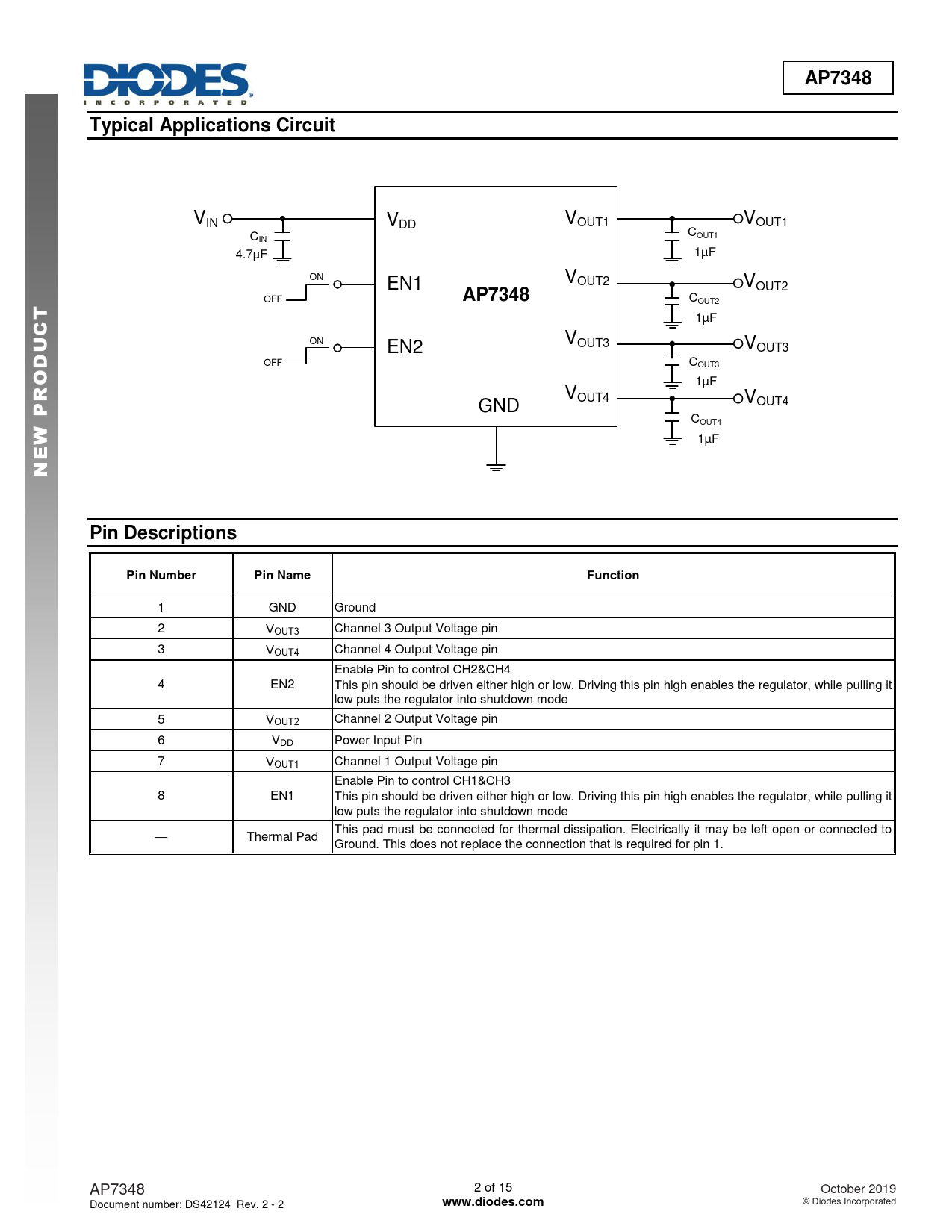

AP7348 Typical Applications Circuit
VIN V V V DD OUT1 OUT1 COUT1 CIN 4.7µF 1µF ON VOUT2 V EN1 OUT2 OFF
AP7348
C
T
OUT2
C
1µF
U
ON V EN2 OUT3 VOUT3
D
OFF COUT3
O R
1µF V
P
OUT4 VOUT4 GND COUT4
W
1µF
E N Pin Descriptions Pin Number Pin Name Function
1 GND Ground 2 VOUT3 Channel 3 Output Voltage pin 3 VOUT4 Channel 4 Output Voltage pin Enable Pin to control CH2&CH4 4 EN2 This pin should be driven either high or low. Driving this pin high enables the regulator, while pulling it low puts the regulator into shutdown mode 5 VOUT2 Channel 2 Output Voltage pin 6 VDD Power Input Pin 7 VOUT1 Channel 1 Output Voltage pin Enable Pin to control CH1&CH3 8 EN1 This pin should be driven either high or low. Driving this pin high enables the regulator, while pulling it low puts the regulator into shutdown mode — This pad must be connected for thermal dissipation. Electrically it may be left open or connected to Thermal Pad Ground. This does not replace the connection that is required for pin 1. AP7348 2 of 15 October 2019 Document number: DS42124 Rev. 2 - 2
