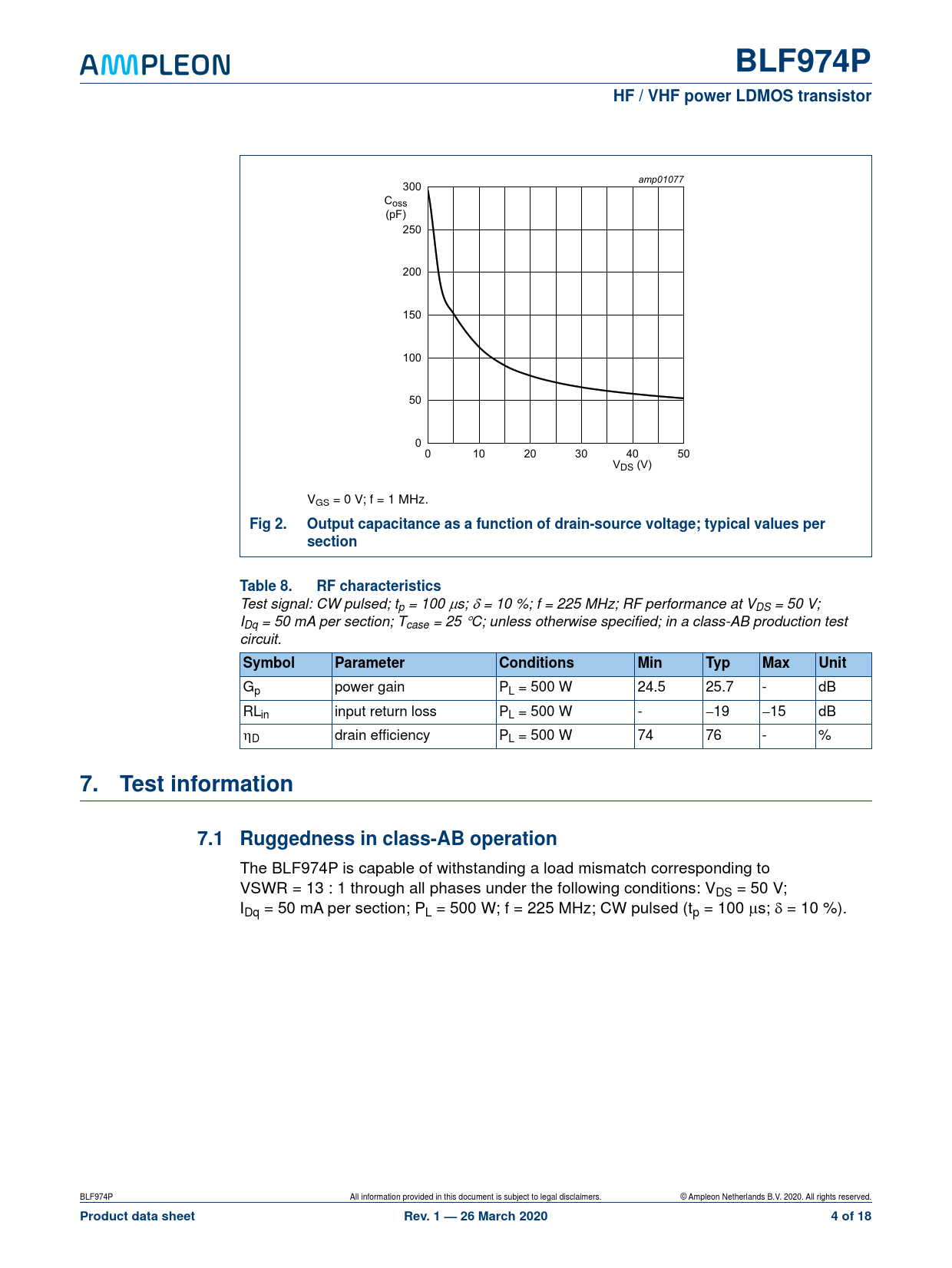

BLF974P. HF / VHF power LDMOS transistor. Fig 2
Línea de modelo para esta hoja de datos
Versión de texto del documento
BLF974P HF / VHF power LDMOS transistor
amp01077 300 Coss oss oss (pF) (pF) (pF) 250 200 150 100 50 0 0 10 20 30 40 50 VDS (V) VGS = 0 V; f = 1 MHz.
Fig 2. Output capacitance as a function of drain-source voltage; typical values per section Table 8. RF characteristics
Test signal: CW pulsed; tp = 100 s; = 10 %; f = 225 MHz; RF performance at VDS = 50 V; IDq = 50 mA per section; Tcase = 25 C; unless otherwise specified; in a class-AB production test circuit.
Symbol Parameter Conditions Min Typ Max Unit
Gp power gain PL = 500 W 24.5 25.7 - dB RLin input return loss PL = 500 W - 19 15 dB D drain efficiency PL = 500 W 74 76 - %
7. Test information 7.1 Ruggedness in class-AB operation
The BLF974P is capable of withstanding a load mismatch corresponding to VSWR = 13 : 1 through all phases under the following conditions: VDS = 50 V; IDq = 50 mA per section; PL = 500 W; f = 225 MHz; CW pulsed (tp = 100 s; = 10 %). BLF974P All information provided in this document is subject to legal disclaimers. © Ampleon Netherlands B.V. 2020. All rights reserved.
Product data sheet Rev. 1 — 26 March 2020 4 of 18
