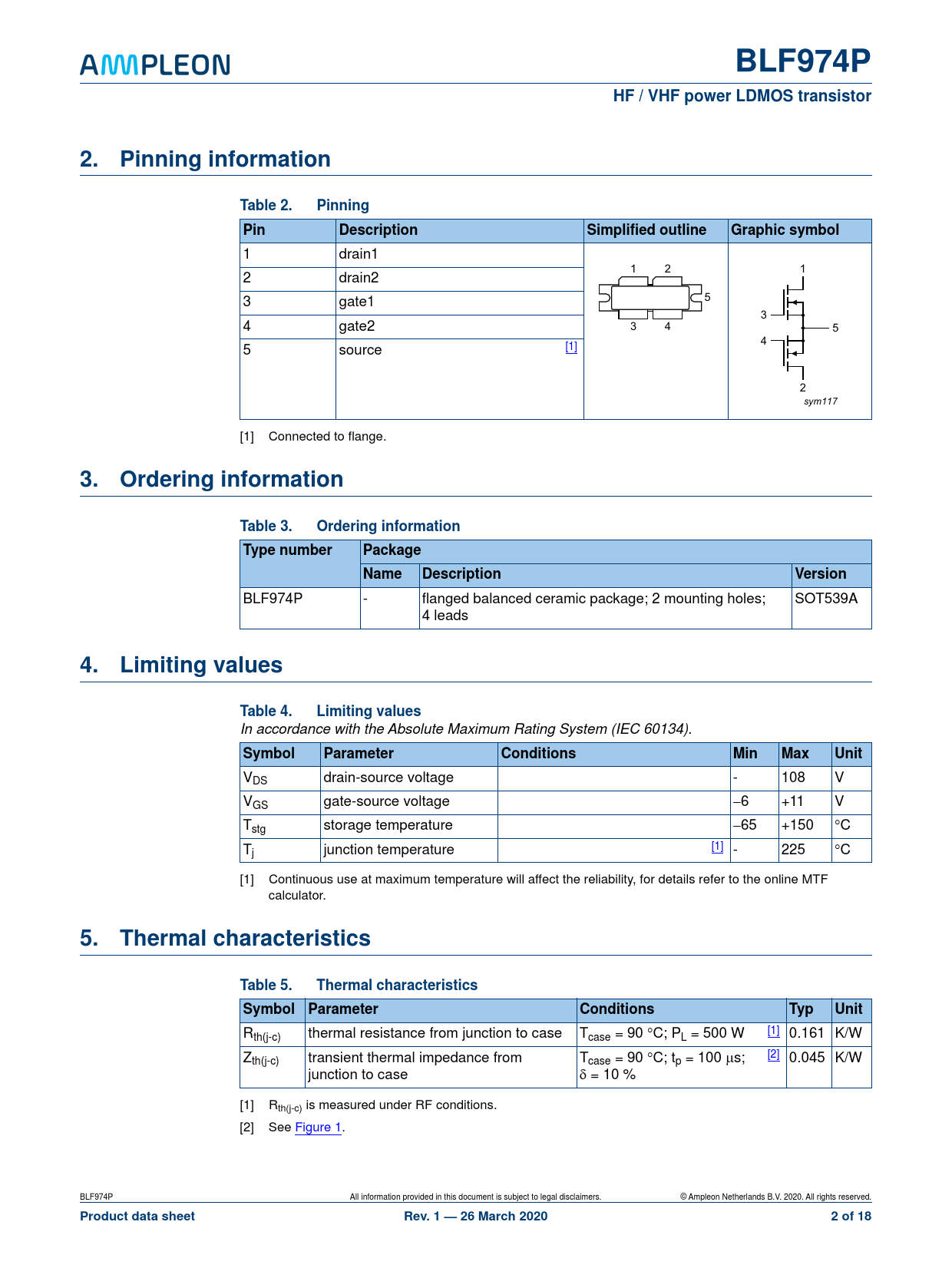

BLF974P. HF / VHF power LDMOS transistor. 2. Pinning. information. Table 2. Pinning. Pin. Description. Simplified outline. Graphic symbol
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 2 link to page 2 link to page 2 link to page 2 link to page 3
BLF974P HF / VHF power LDMOS transistor 2. Pinning information Table 2. Pinning Pin Description Simplified outline Graphic symbol
1 drain1 1 2 1 2 drain2 3 gate1 5 3 4 gate2 3 4 5 4 5 source [1] 2 sym117 [1] Connected to flange.
3. Ordering information Table 3. Ordering information Type number Package Name Description Version
BLF974P - flanged balanced ceramic package; 2 mounting holes; SOT539A 4 leads
4. Limiting values Table 4. Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol Parameter Conditions Min Max Unit
VDS drain-source voltage - 108 V VGS gate-source voltage 6 +11 V Tstg storage temperature 65 +150 C Tj junction temperature [1] - 225 C [1] Continuous use at maximum temperature will affect the reliability, for details refer to the online MTF calculator.
5. Thermal characteristics Table 5. Thermal characteristics Symbol Parameter Conditions Typ Unit
Rth(j-c) thermal resistance from junction to case Tcase = 90 C; PL = 500 W [1] 0.161 K/W Z [2] th(j-c) transient thermal impedance from Tcase = 90 C; tp = 100 s; 0.045 K/W junction to case = 10 % [1] Rth(j-c) is measured under RF conditions. [2] See Figure 1. BLF974P All information provided in this document is subject to legal disclaimers. © Ampleon Netherlands B.V. 2020. All rights reserved.
Product data sheet Rev. 1 — 26 March 2020 2 of 18
