| Descripción | Automotive, 2.3V To 5.5V Input, 1A Low Iq Synchronous Buck Converter |
| Páginas / Página | 22 / 2 — AP61100Q/AP61102Q. Typical Application Circuit. INPUT. VIN. OUT. 1μH. … |
| Formato / tamaño de archivo | PDF / 1.6 Mb |
| Idioma del documento | Inglés |

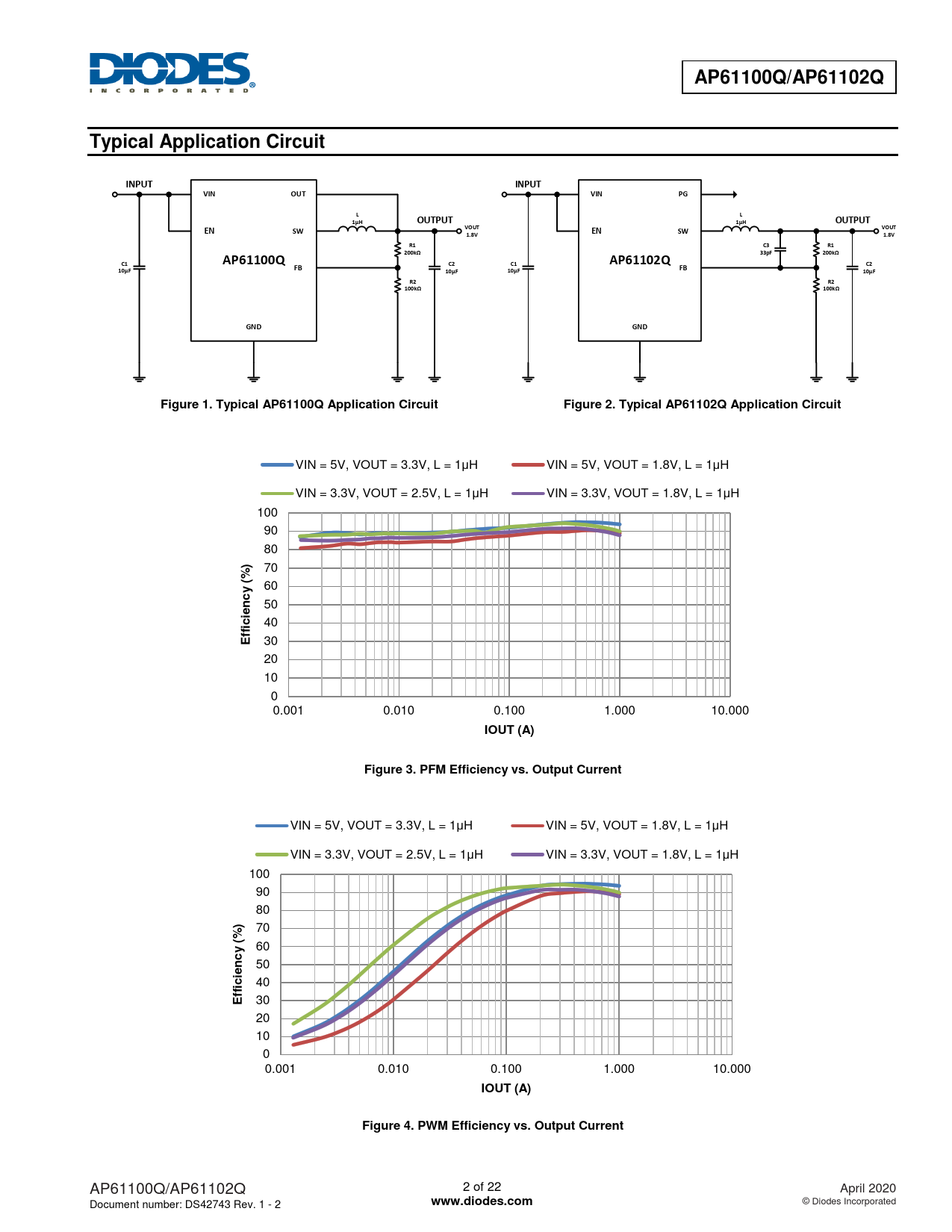

AP61100Q/AP61102Q. Typical Application Circuit. INPUT. VIN. OUT. 1μH. OUTPUT. VOUT. 1.8V. 200kΩ. 33pF. AP61100Q. AP61102Q. 10µF. 100kΩ. GND
Línea de modelo para esta hoja de datos
Versión de texto del documento
AP61100Q/AP61102Q Typical Application Circuit INPUT INPUT VIN OUT VIN PG L L 1μH OUTPUT 1μH OUTPUT EN SW VOUT EN SW VOUT 1.8V 1.8V R1 C3 R1 200kΩ 33pF 200kΩ C1 AP61100Q C1 AP61102Q FB C2 FB C2 10µF 10µF 10µF 10µF R2 R2 100kΩ 100kΩ GND GND Figure 1. Typical AP61100Q Application Circuit Figure 2. Typical AP61102Q Application Circuit
VIN = 5V, VOUT = 3.3V, L = 1μH VIN = 5V, VOUT = 1.8V, L = 1μH VIN = 3.3V, VOUT = 2.5V, L = 1μH VIN = 3.3V, VOUT = 1.8V, L = 1μH 100 90 80
)
70
%(
60
ncy
50
eici
40
ff E
30 20 10 0 0.001 0.010 0.100 1.000 10.000
IOUT (A) Figure 3. PFM Efficiency vs. Output Current
VIN = 5V, VOUT = 3.3V, L = 1μH VIN = 5V, VOUT = 1.8V, L = 1μH VIN = 3.3V, VOUT = 2.5V, L = 1μH VIN = 3.3V, VOUT = 1.8V, L = 1μH 100 90 80
)
70
%(
60
ncy
50
eic
40
iffE
30 20 10 0 0.001 0.010 0.100 1.000 10.000
IOUT (A) Figure 4. PWM Efficiency vs. Output Current
AP61100Q/AP61102Q 2 of 22 April 2020 Document number: DS42743 Rev. 1 - 2
www.diodes.com
© Diodes Incorporated
