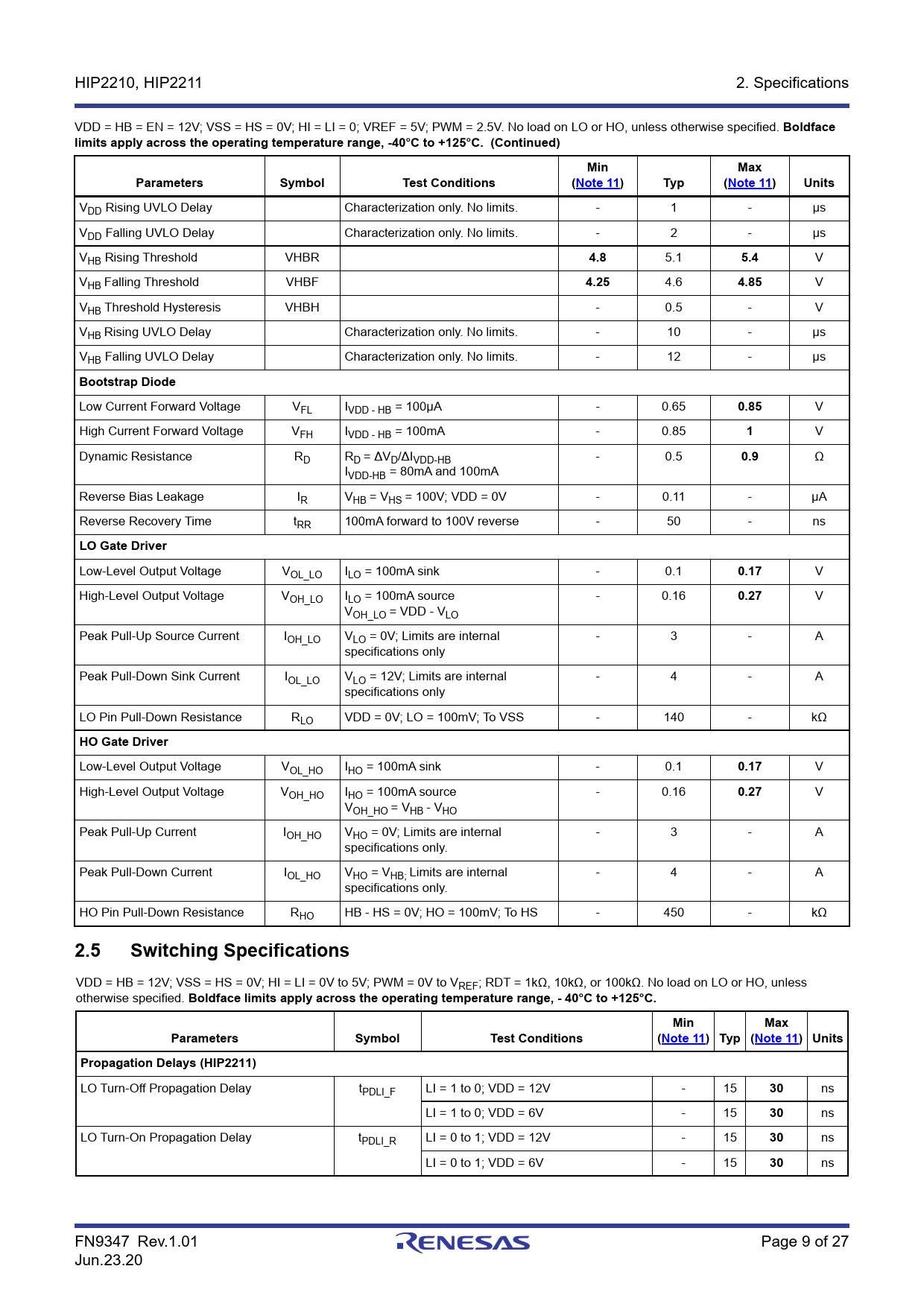

Datasheet HIP2210, HIP2211 (Renesas) - 9

link to page 11 link to page 11 HIP2210, HIP2211 2. Specifications VDD = HB = EN = 12V; VSS = HS = 0V; HI = LI = 0; VREF = 5V; PWM = 2.5V. No load on LO or HO, unless otherwise specified.
Boldface limits apply across the operating temperature range, -40°C to +125°C. (Continued) Min Max Parameters Symbol Test Conditions (Note 11) Typ (Note 11) Units
VDD Rising UVLO Delay Characterization only. No limits. - 1 - µs VDD Falling UVLO Delay Characterization only. No limits. - 2 - µs VHB Rising Threshold VHBR
4.8
5.1
5.4
V VHB Falling Threshold VHBF
4.25
4.6
4.85
V VHB Threshold Hysteresis VHBH - 0.5 - V VHB Rising UVLO Delay Characterization only. No limits. - 10 - µs VHB Falling UVLO Delay Characterization only. No limits. - 12 - µs
Bootstrap Diode
Low Current Forward Voltage VFL IVDD - HB = 100µA - 0.65
0.85
V High Current Forward Voltage VFH IVDD - HB = 100mA - 0.85
1
V Dynamic Resistance RD RD = ΔVD/ΔIVDD-HB - 0.5
0.9
Ω IVDD-HB = 80mA and 100mA Reverse Bias Leakage IR VHB = VHS = 100V; VDD = 0V - 0.11 - µA Reverse Recovery Time tRR 100mA forward to 100V reverse - 50 - ns
LO Gate Driver
Low-Level Output Voltage VOL_LO ILO = 100mA sink - 0.1
0.17
V High-Level Output Voltage VOH_LO ILO = 100mA source - 0.16
0.27
V VOH_LO = VDD - VLO Peak Pull-Up Source Current IOH_LO VLO = 0V; Limits are internal - 3 - A specifications only Peak Pull-Down Sink Current IOL_LO VLO = 12V; Limits are internal - 4 - A specifications only LO Pin Pull-Down Resistance RLO VDD = 0V; LO = 100mV; To VSS - 140 - kΩ
HO Gate Driver
Low-Level Output Voltage VOL_HO IHO = 100mA sink Peak Pull-Up Current IOH_HO VHO = 0V; Limits ar - 0.1
0.17
V High-Level Output Voltage VOH_HO IHO = 100mA source - 0.16
0.27
V VOH_HO = VHB - VHO e internal - 3 - A specifications only. Peak Pull-Down Current IOL_HO VHO = VHB; Limits are internal - 4 - A specifications only. HO Pin Pull-Down Resistance RHO HB - HS = 0V; HO = 100mV; To HS - 450 - kΩ
2.5 Switching Specifications
VDD = HB = 12V; VSS = HS = 0V; HI = LI = 0V to 5V; PWM = 0V to VREF; RDT = 1kΩ, 10kΩ, or 100kΩ. No load on LO or HO, unless otherwise specified.
Boldface limits apply across the operating temperature range, - 40°C to +125°C. Min Max Parameters Symbol Test Conditions (Note 11) Typ (Note 11) Units Propagation Delays (HIP2211)
LO Turn-Off Propagation Delay tPDLI_F LI = 1 to 0; VDD = 12V - 15
30
ns LI = 1 to 0; VDD = 6V - 15
30
ns LO Turn-On Propagation Delay tPDLI_R LI = 0 to 1; VDD = 12V - 15
30
ns LI = 0 to 1; VDD = 6V - 15
30
