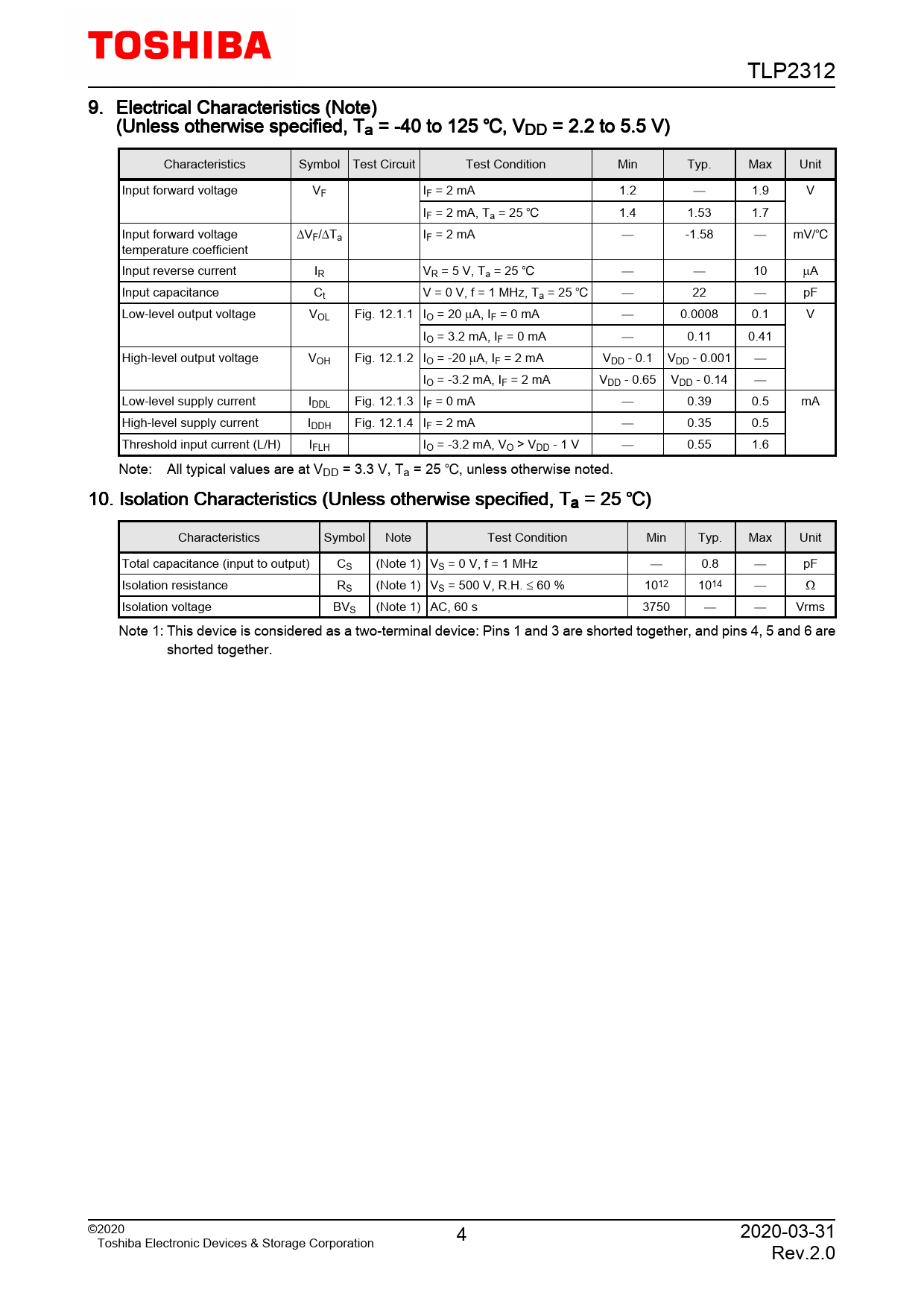

Datasheet TLP2312 (Toshiba) - 4

TLP2312 9. Electrical Characteristics (Note) (Unless otherwise specified, Ta = -40 to 125 , VDD = 2.2 to 5.5 V) Characteristics Symbol Test Circuit Test Condition Min Typ. Max Unit Input forward voltage VF IF = 2 mA 1.2  1.9 V IF = 2 mA, Ta = 25 1.4 1.53 1.7 Input forward voltage ∆VF/∆Ta IF = 2 mA  -1.58  mV/ temperature coefficient Input reverse current IR VR = 5 V, Ta = 25   10 µA Input capacitance Ct V = 0 V, f = 1 MHz, Ta = 25  22  pF Low-level output voltage VOL Fig. 12.1.1 IO = 20 µA, IF = 0 mA  0.0008 0.1 V IO = 3.2 mA, IF = 0 mA  0.11 0.41 High-level output voltage VOH Fig. 12.1.2 IO = -20 µA, IF = 2 mA VDD - 0.1 VDD - 0.001  IO = -3.2 mA, IF = 2 mA VDD - 0.65 VDD - 0.14  Low-level supply current IDDL Fig. 12.1.3 IF = 0 mA  0.39 0.5 mA High-level supply current IDDH Fig. 12.1.4 IF = 2 mA  0.35 0.5 Threshold input current (L/H) IFLH IO = -3.2 mA, VO > VDD - 1 V  0.55 1.6 Note: All typical values are at VDD = 3.3 V, Ta = 25 , unless otherwise noted. 10. Isolation Characteristics (Unless otherwise specified, Ta = 25 ) Characteristics Symbol Note Test Condition Min Typ. Max Unit Total capacitance (input to output) CS (Note 1) VS = 0 V, f = 1 MHz  0.8  pF Isolation resistance RS (Note 1) VS = 500 V, R.H. ≤ 60 % 1012 1014  Ω Isolation voltage BVS (Note 1) AC, 60 s 3750   Vrms Note 1: This device is considered as a two-terminal device: Pins 1 and 3 are shorted together, and pins 4, 5 and 6 are shorted together. ©2020 4 2020-03-31 Toshiba Electronic Devices & Storage Corporation Rev.2.0
